WARNING: This page is about a different car, the 2009 Acura MDX, 2008 Acura MDX, and 2007 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

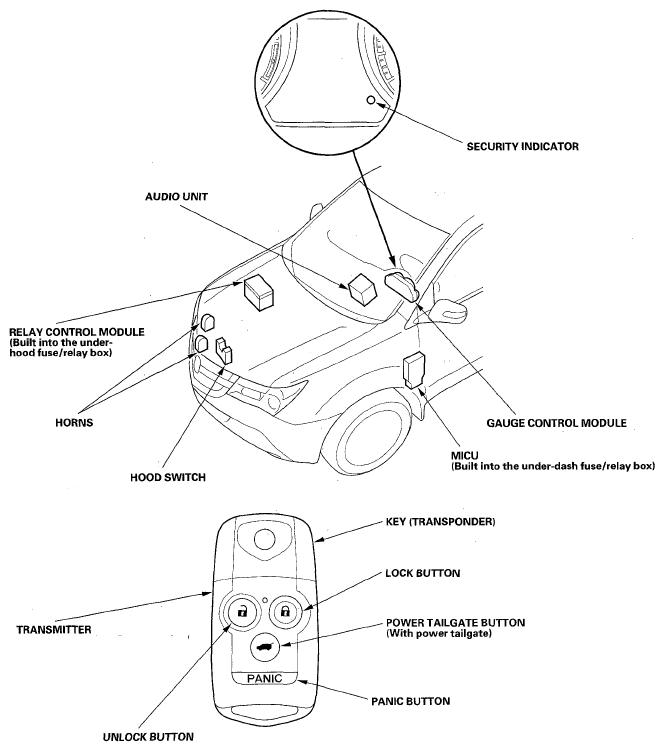

Fig 1: Identifying Keyless/Power Door Locks/Security System Component Location (1 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

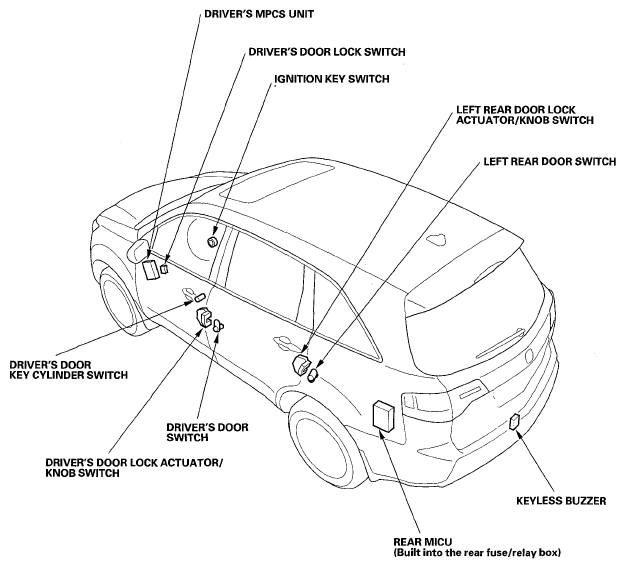

Fig 2: Identifying Keyless/Power Door Locks/Security System Component Location (2 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

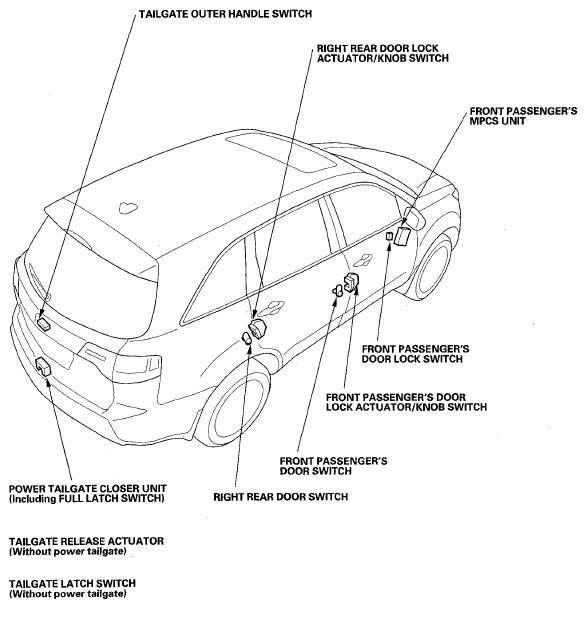

Fig 3: Identifying Keyless/Power Door Locks/Security System Component Location (3 Of 3)
