Memory Positioning Switch: Locations

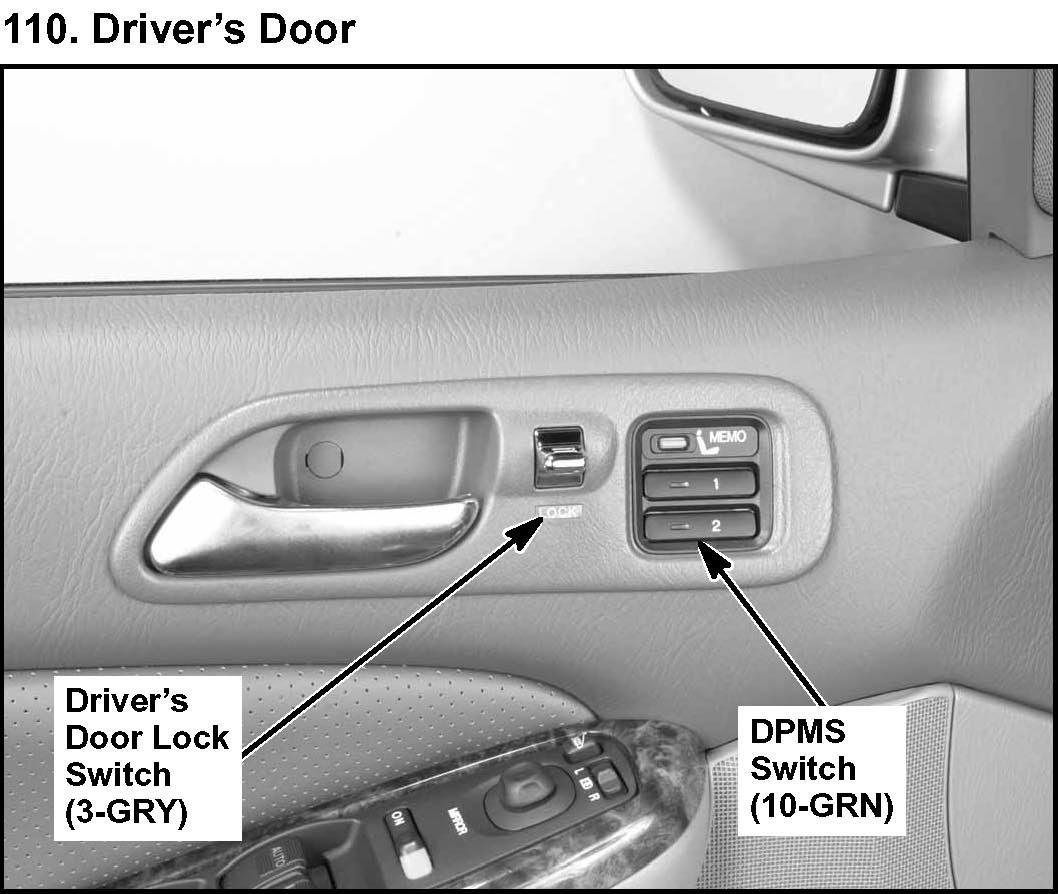

110. Driver's Door:

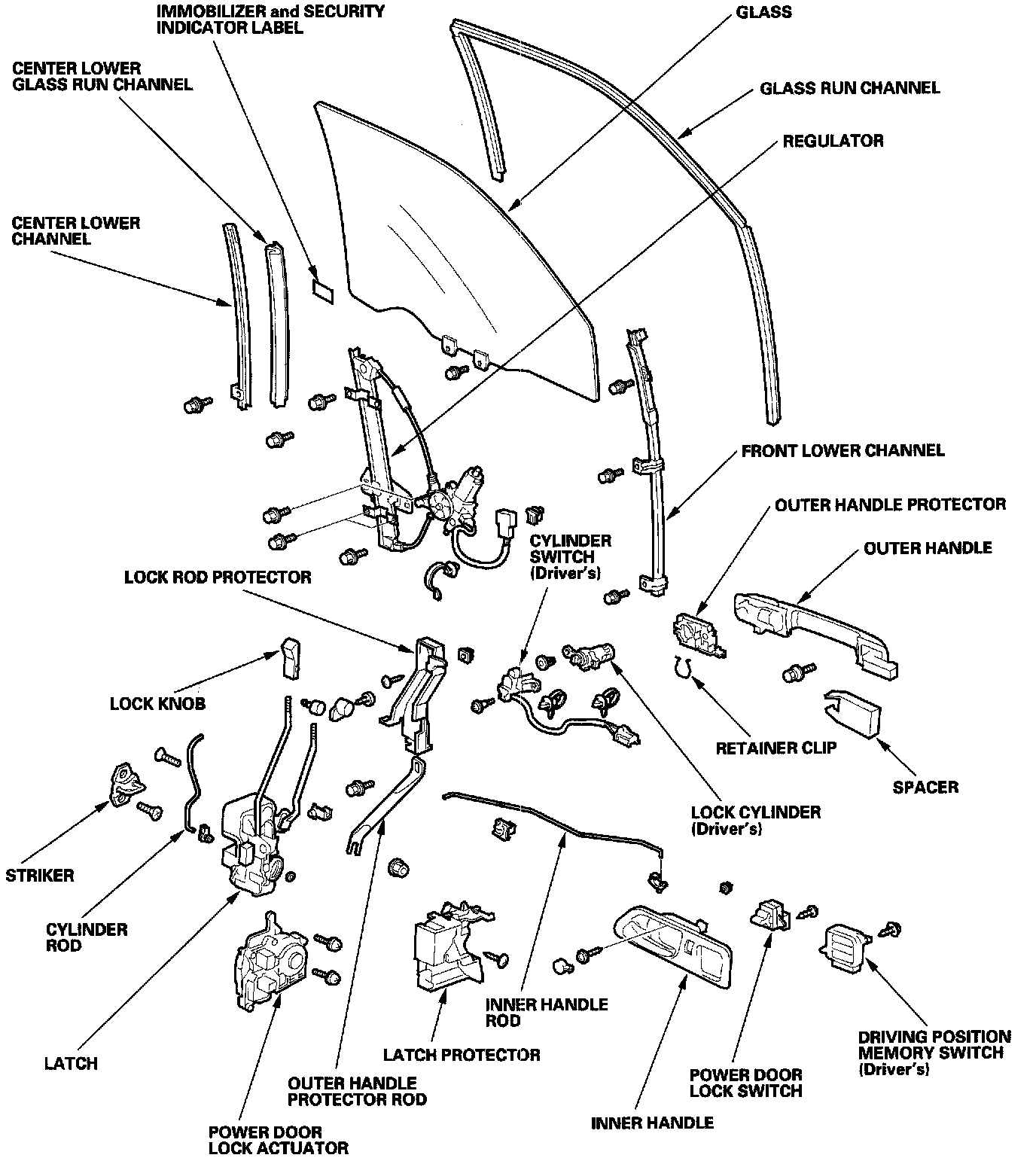

Doors - Component Location Index - Front Door:



Driving Position Memory System (DPMS) - Component Location Index:



Driving Position Memory System (DPMS) - Component Location Index:
