Component Locations

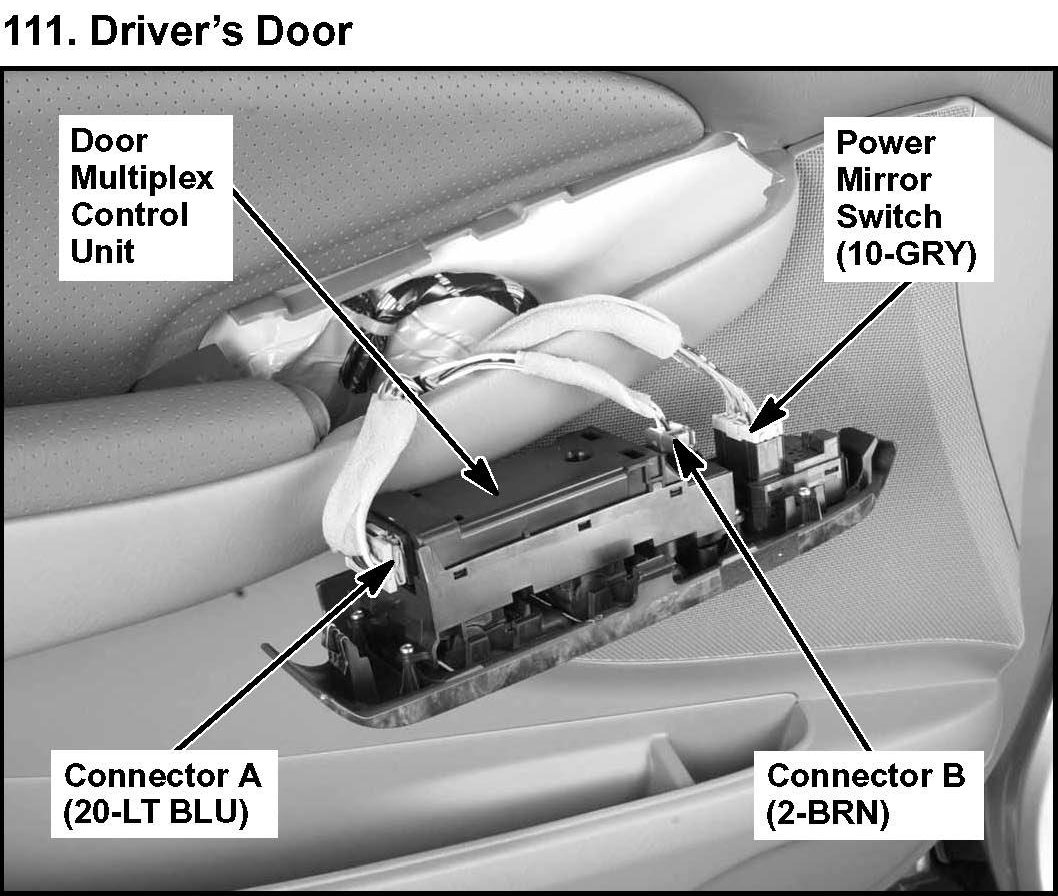

111. Driver's Door:

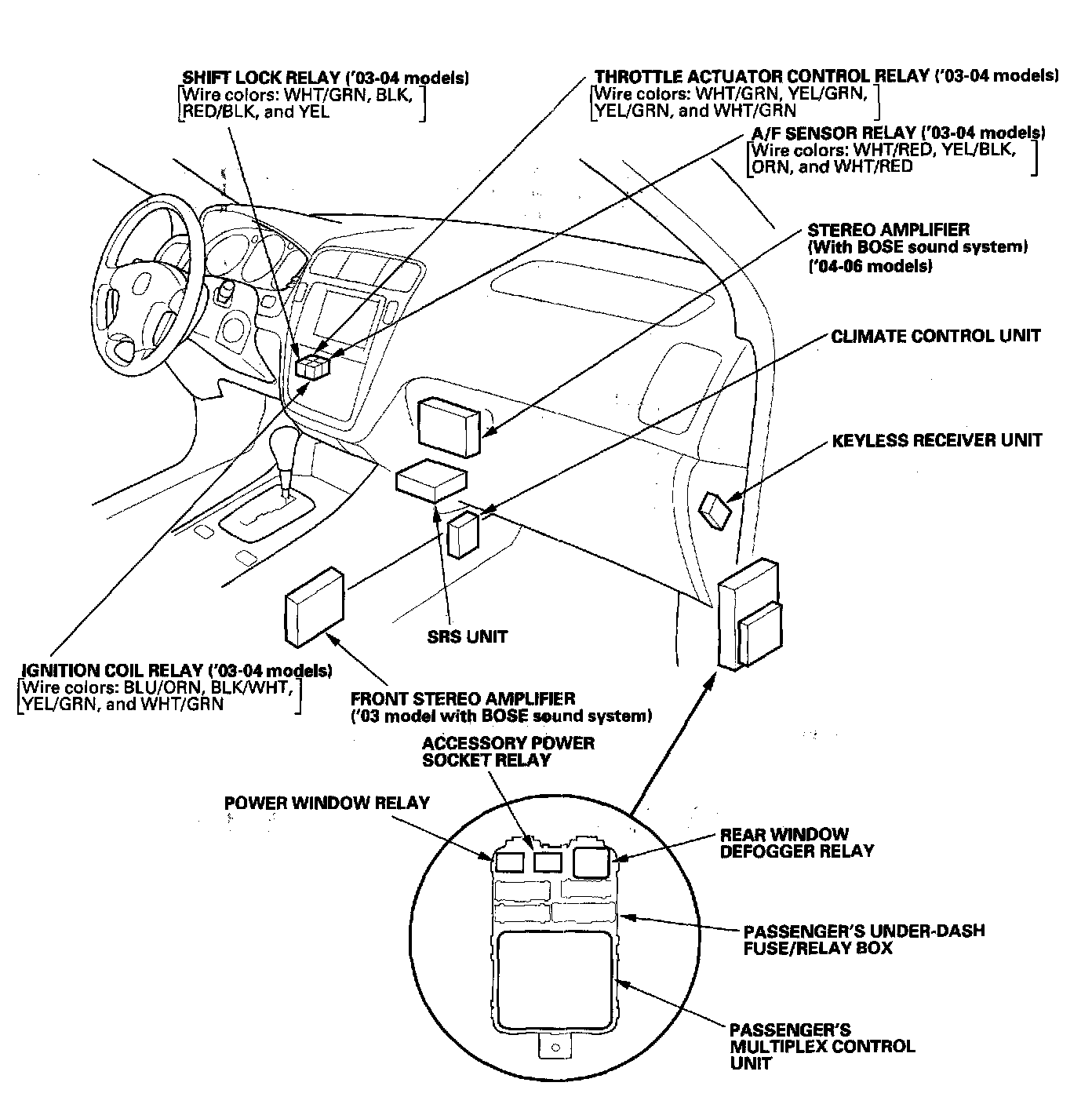

Relay And Control Unit Locations - Dashboard Part 1:



Relay And Control Unit Locations - Dashboard Part 2:



Relay And Control Unit Locations - Door, Rear Side Trim And Roof:



Multiplex Control System - Component Location Index:
