Power Window Control Module: Locations

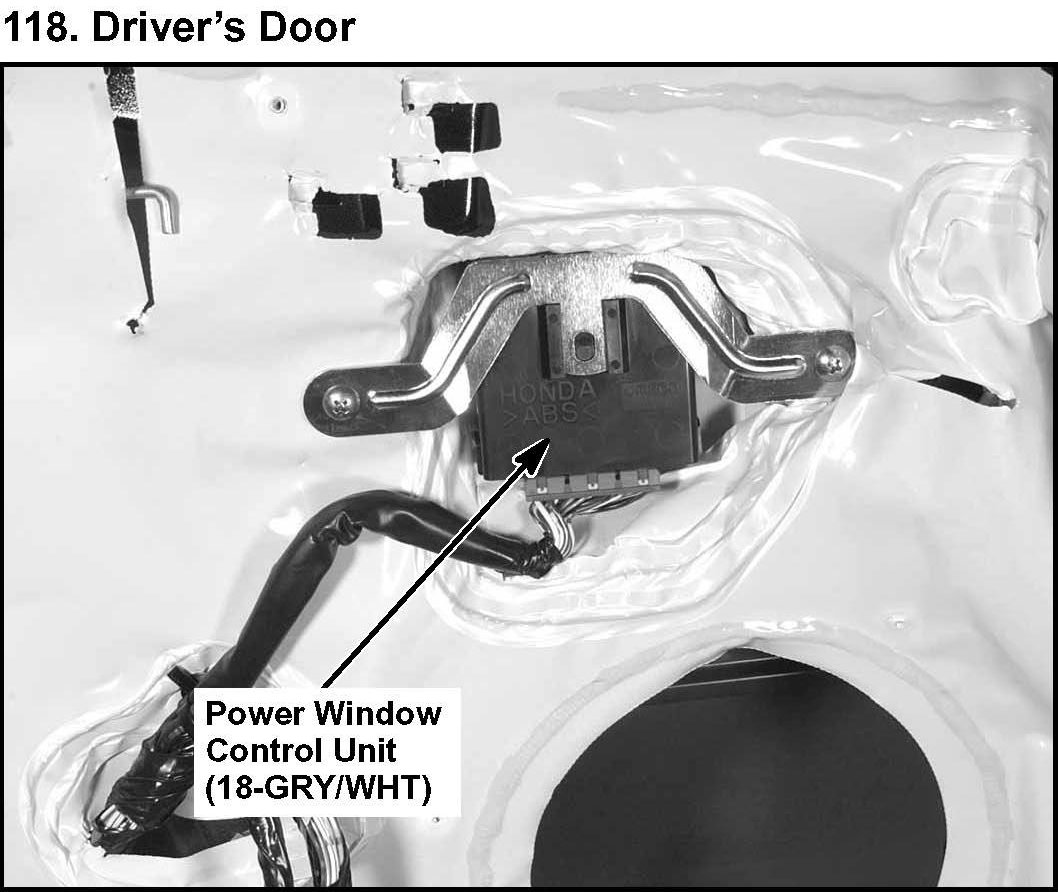

118. Driver's Door:

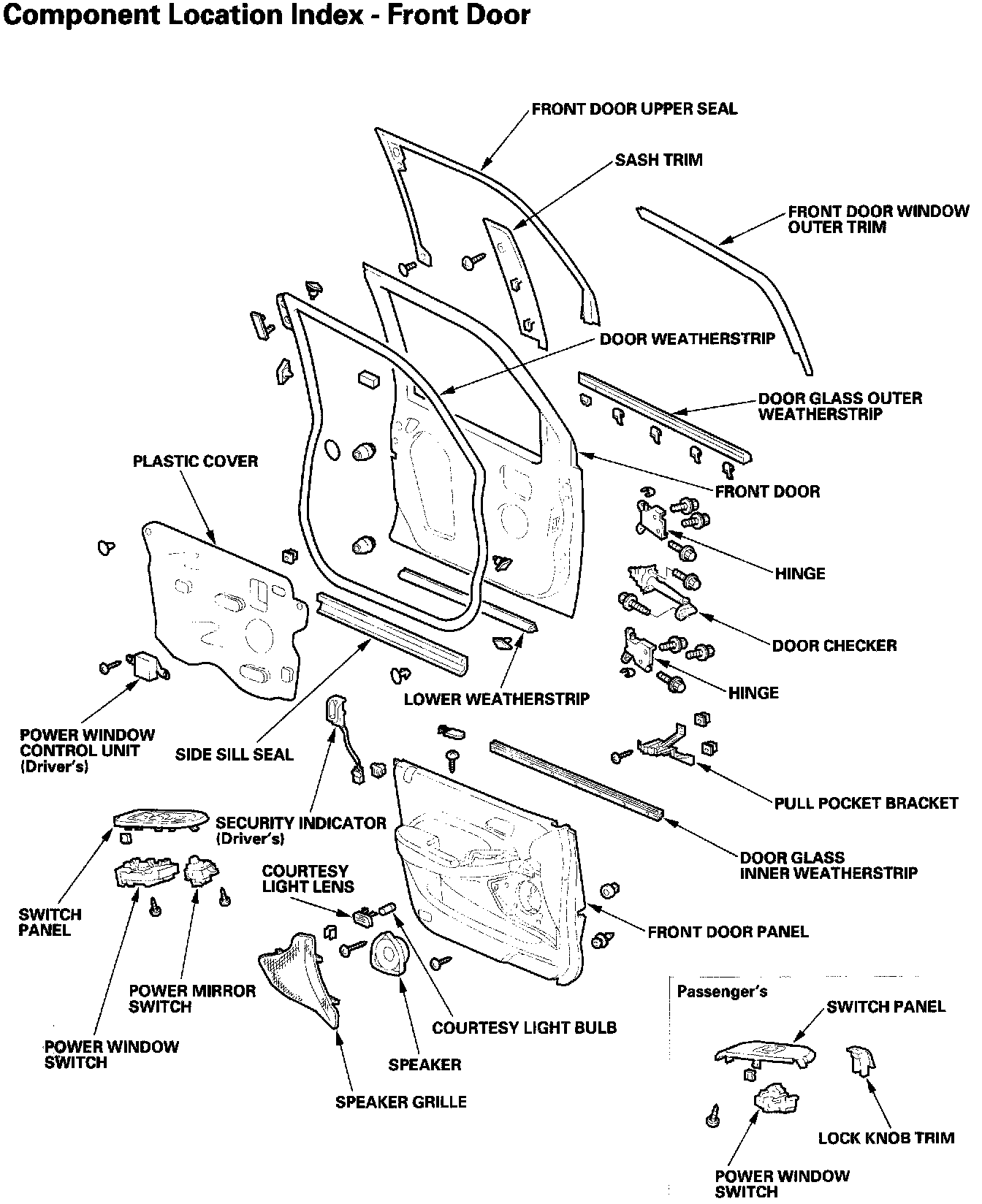

Doors - Component Location Index - Front Door:

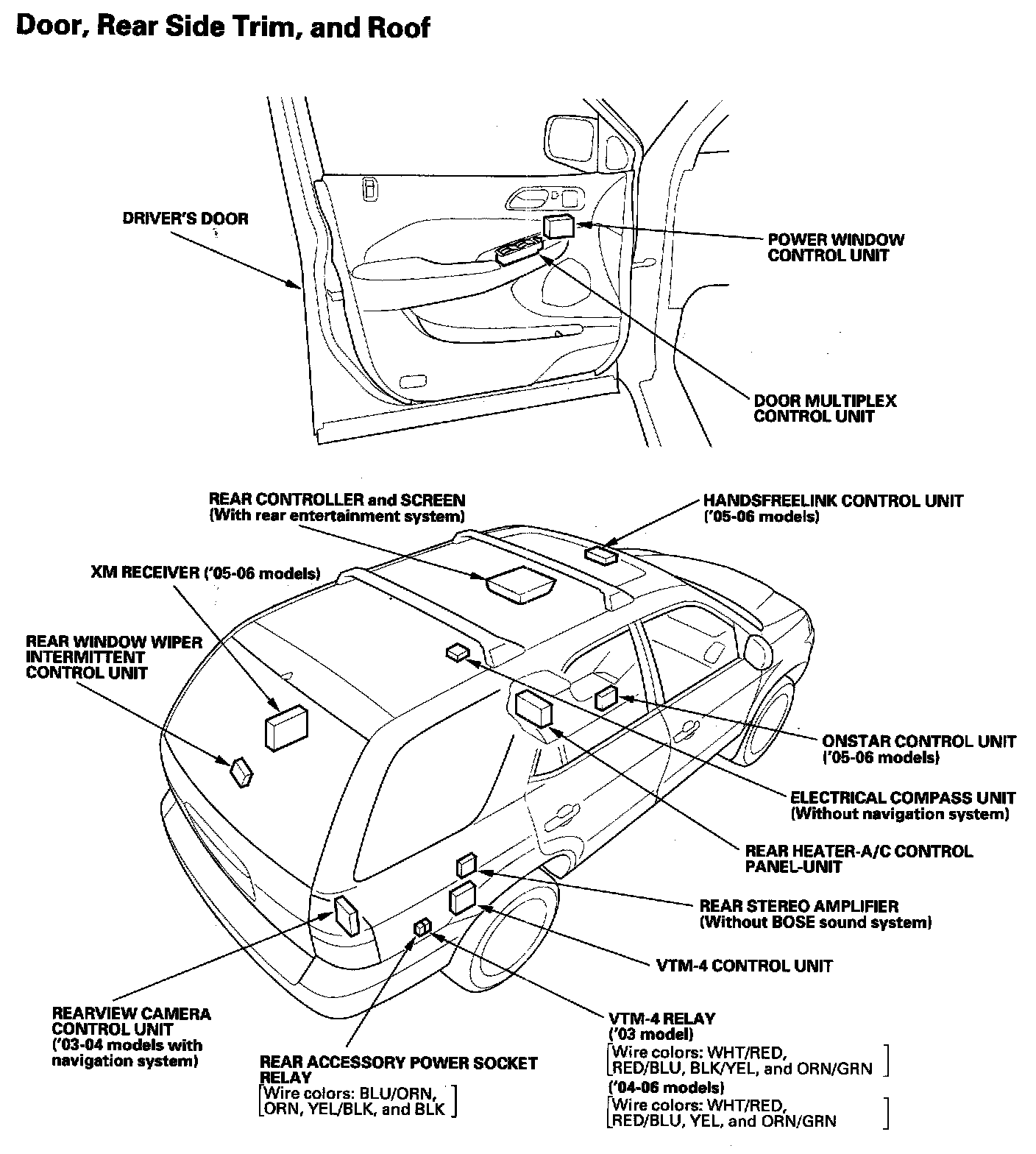

Relay And Control Unit Locations - Door, Rear Side Trim And Roof:

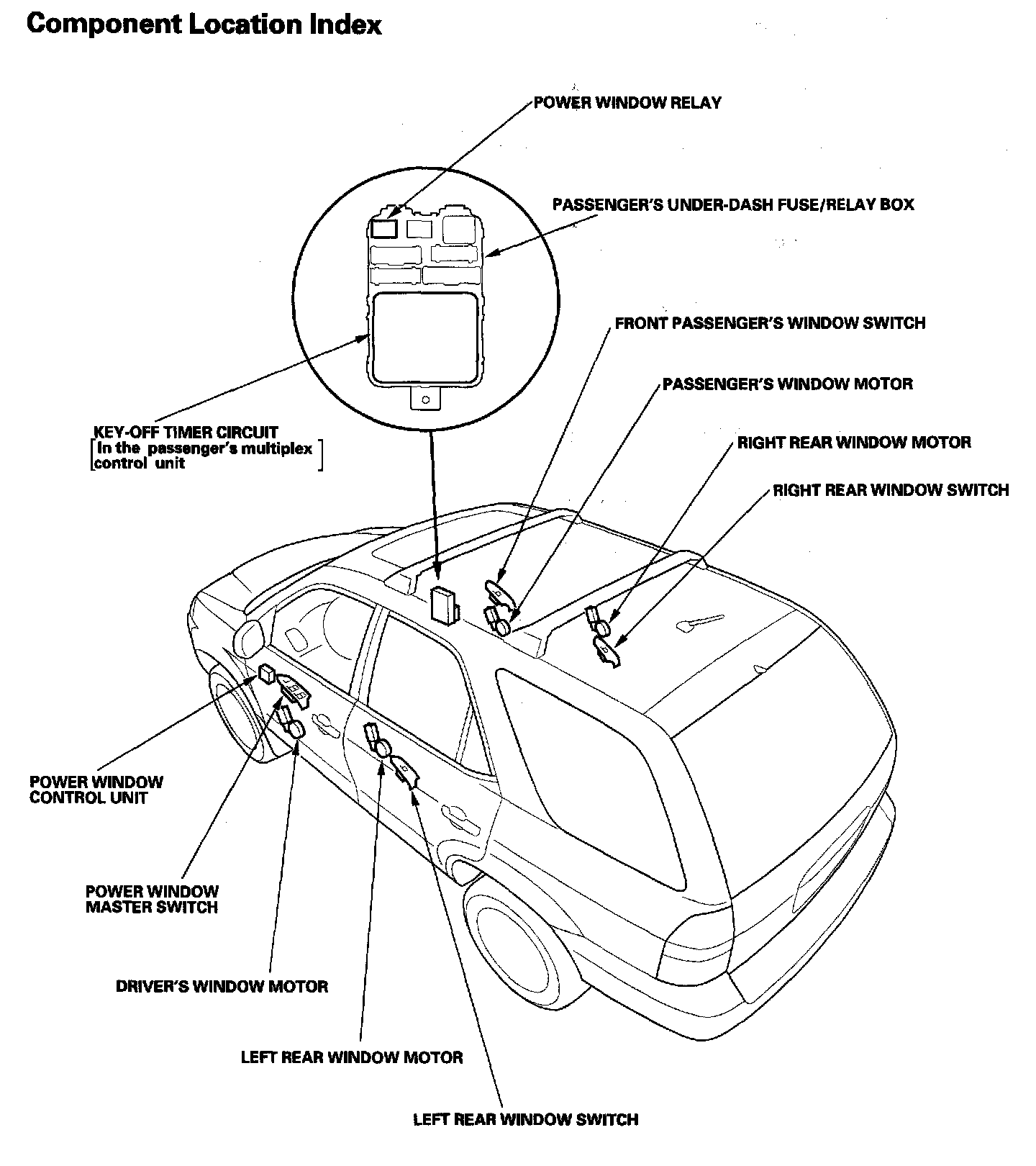

Power Windows - Component Location Index:
