System Diagram

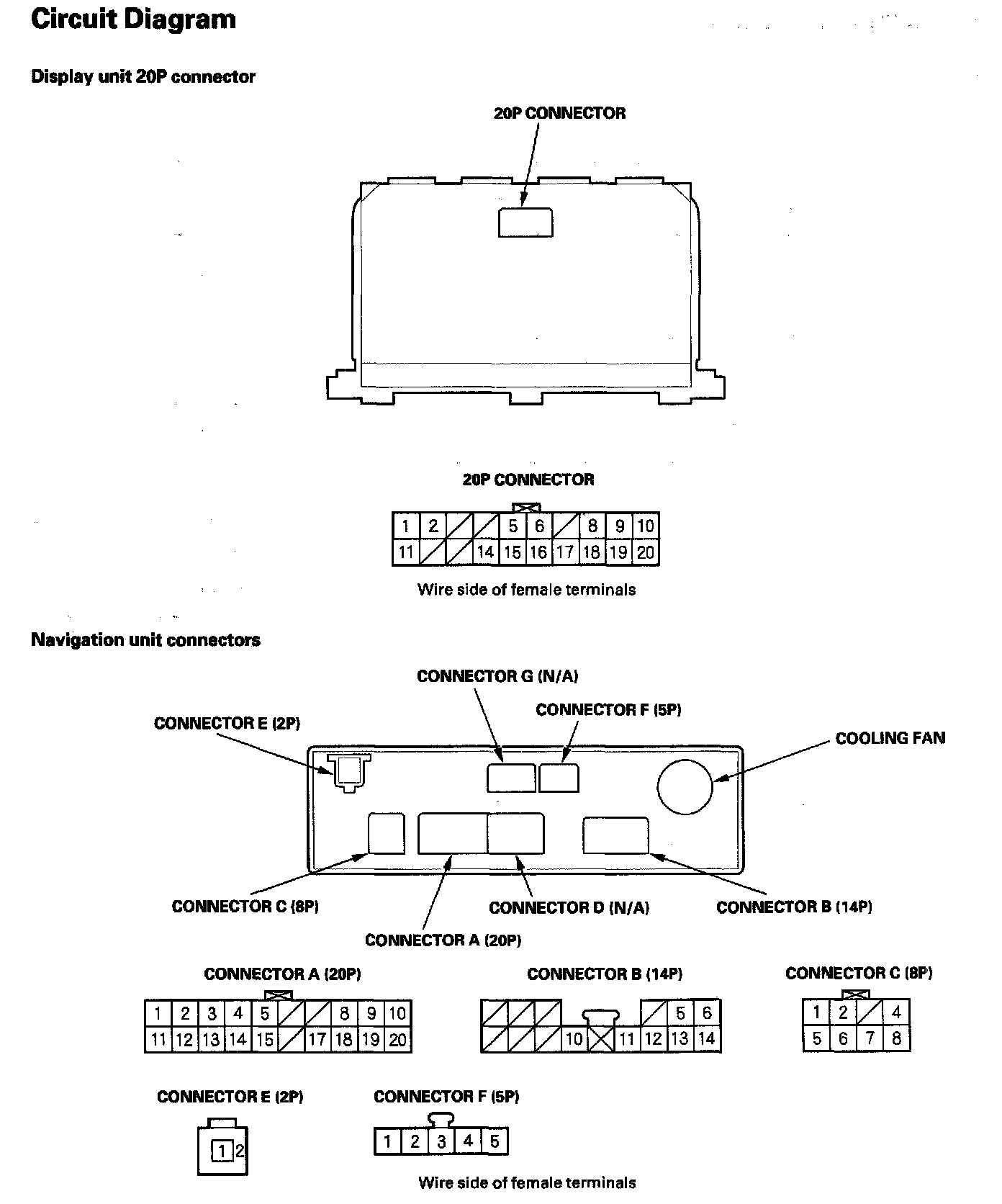

Navigation System - Circuit Diagram:

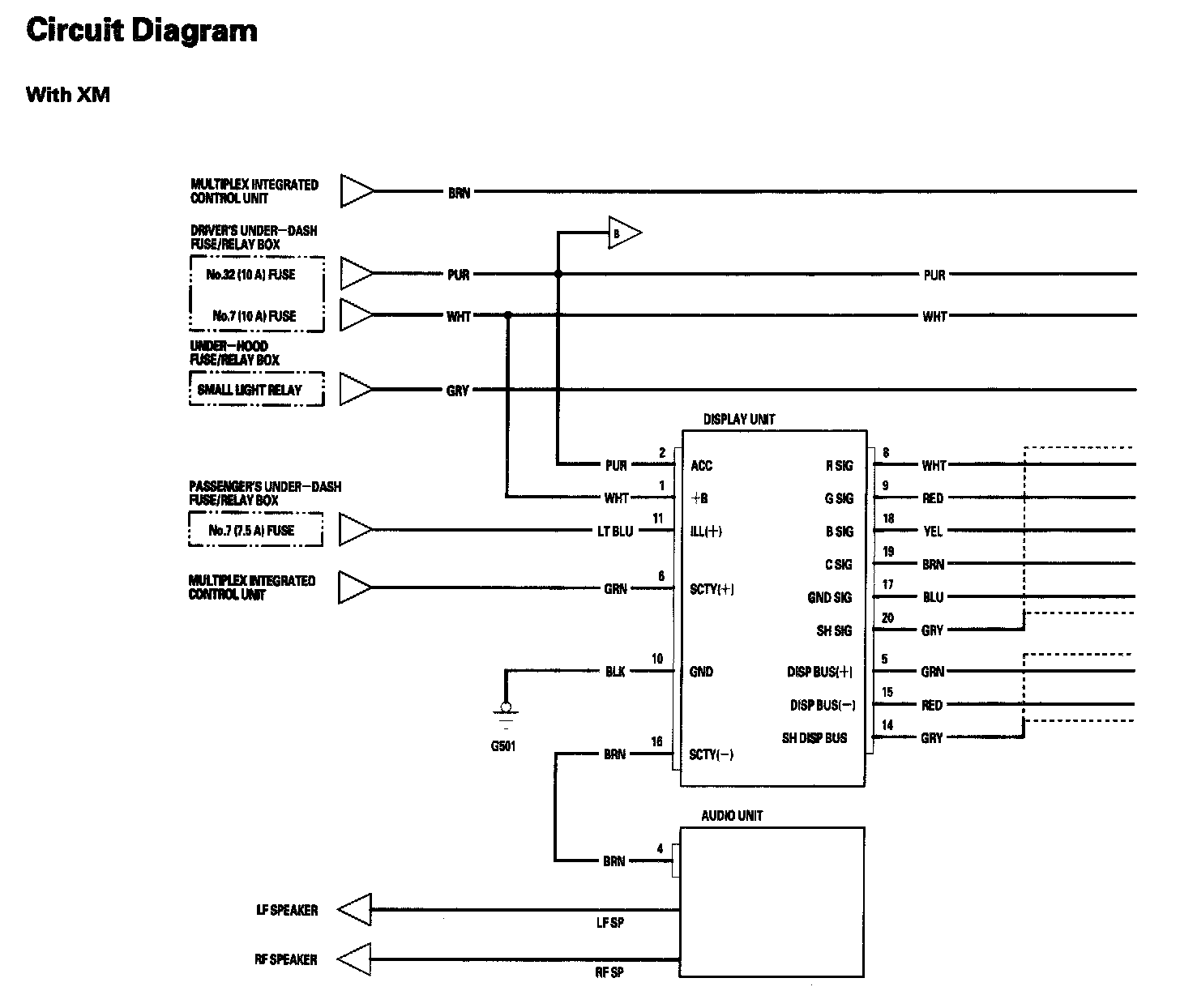

Navigation System With XM - Circuit Diagram Part 1:

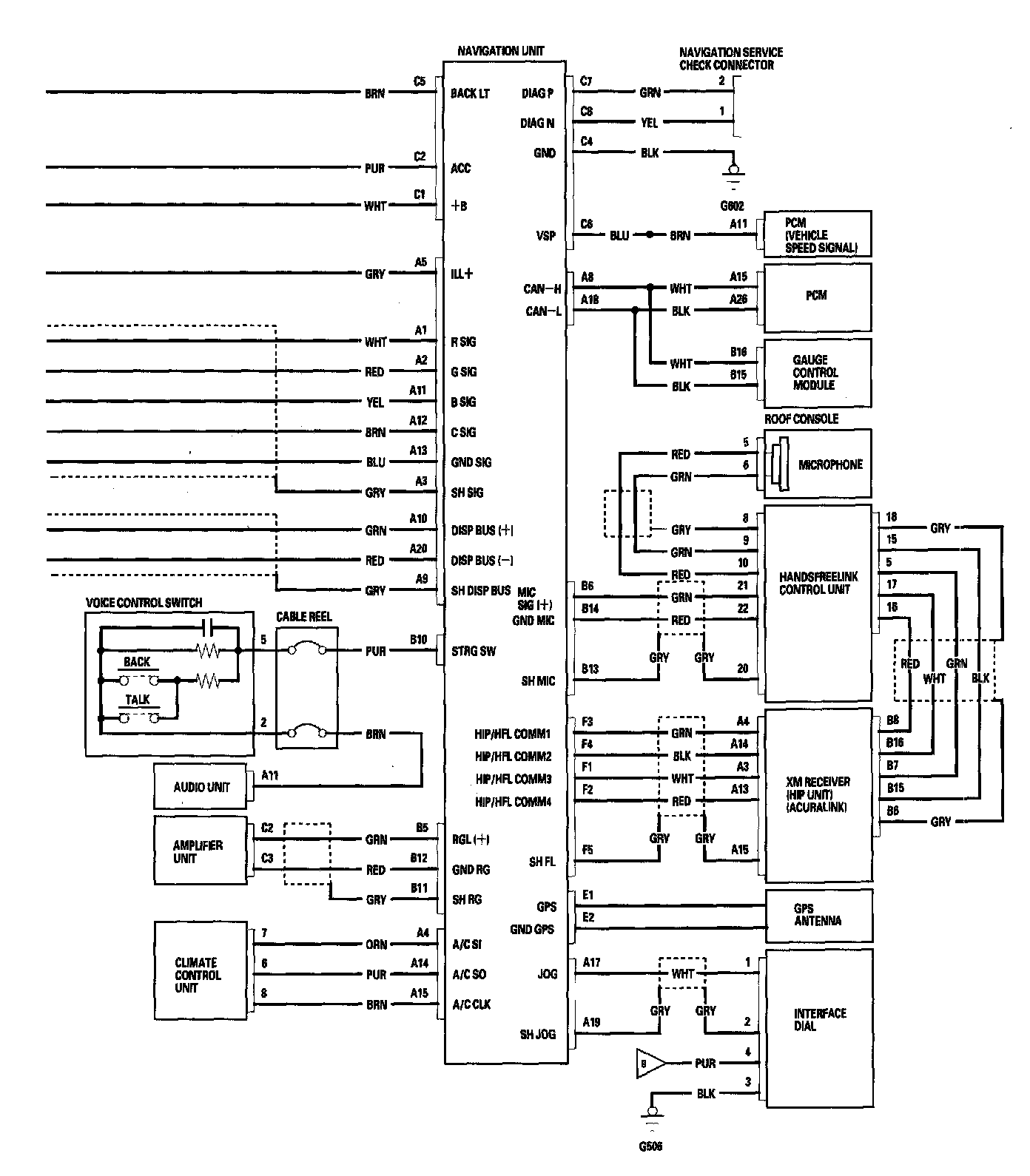

Navigation System With XM - Circuit Diagram Part 2:

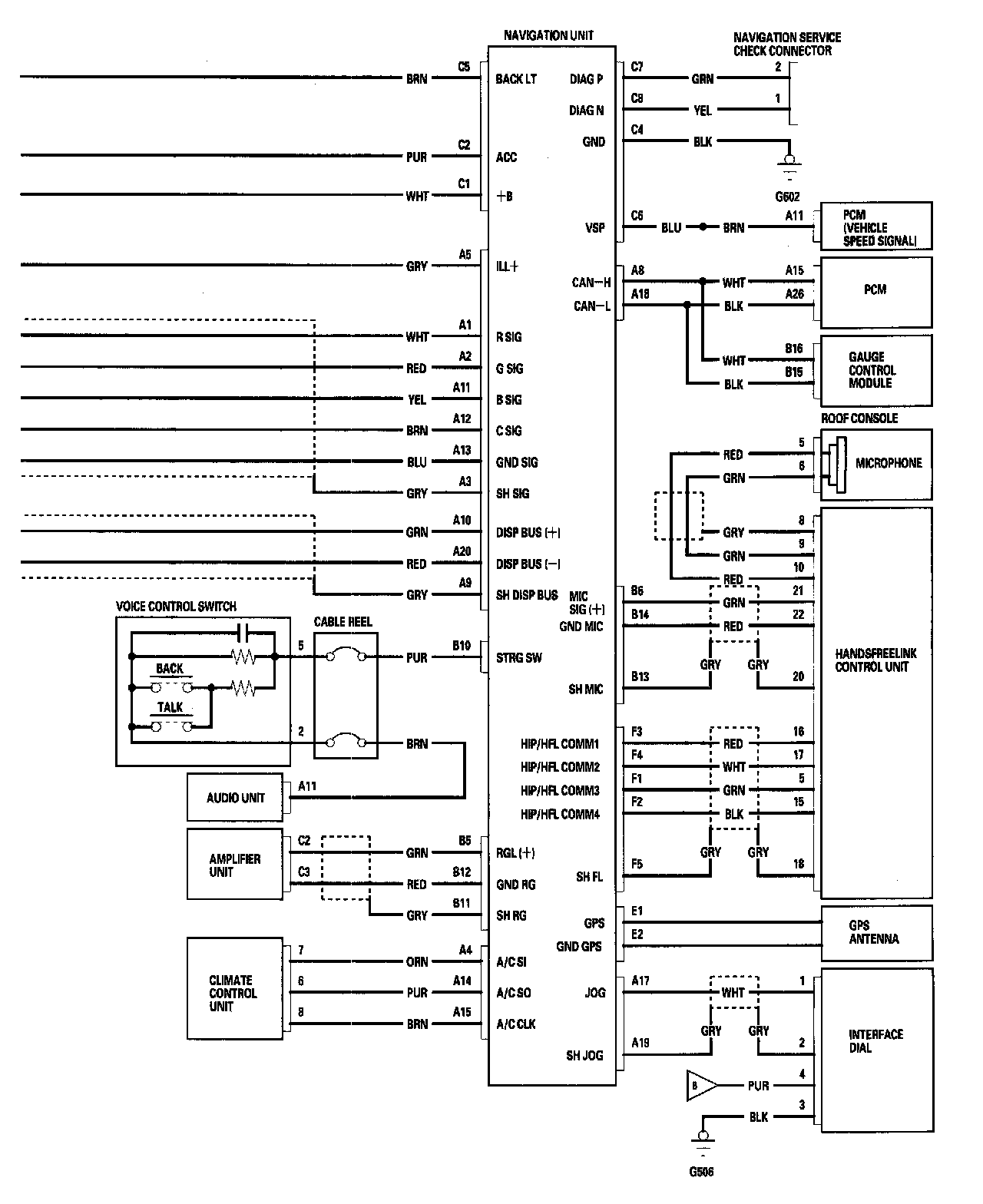

Navigation System Without XM - Circuit Diagram Part 1:



Navigation System Without XM - Circuit Diagram Part 2:
