Component Location Index

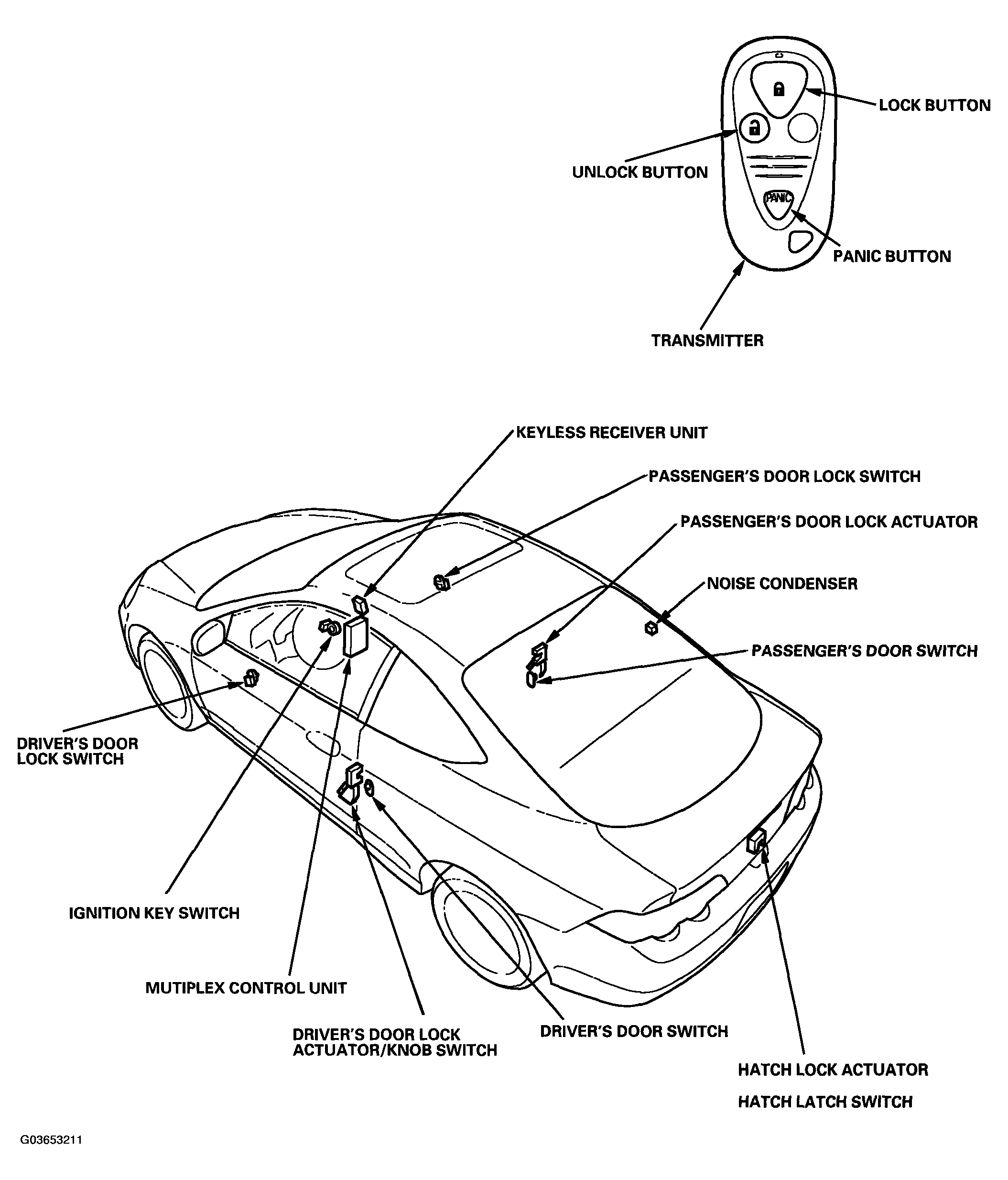

Fig 1: Identifying Keyless/Power Door Lock System Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
