ECM/PCM Circuit Diagrams

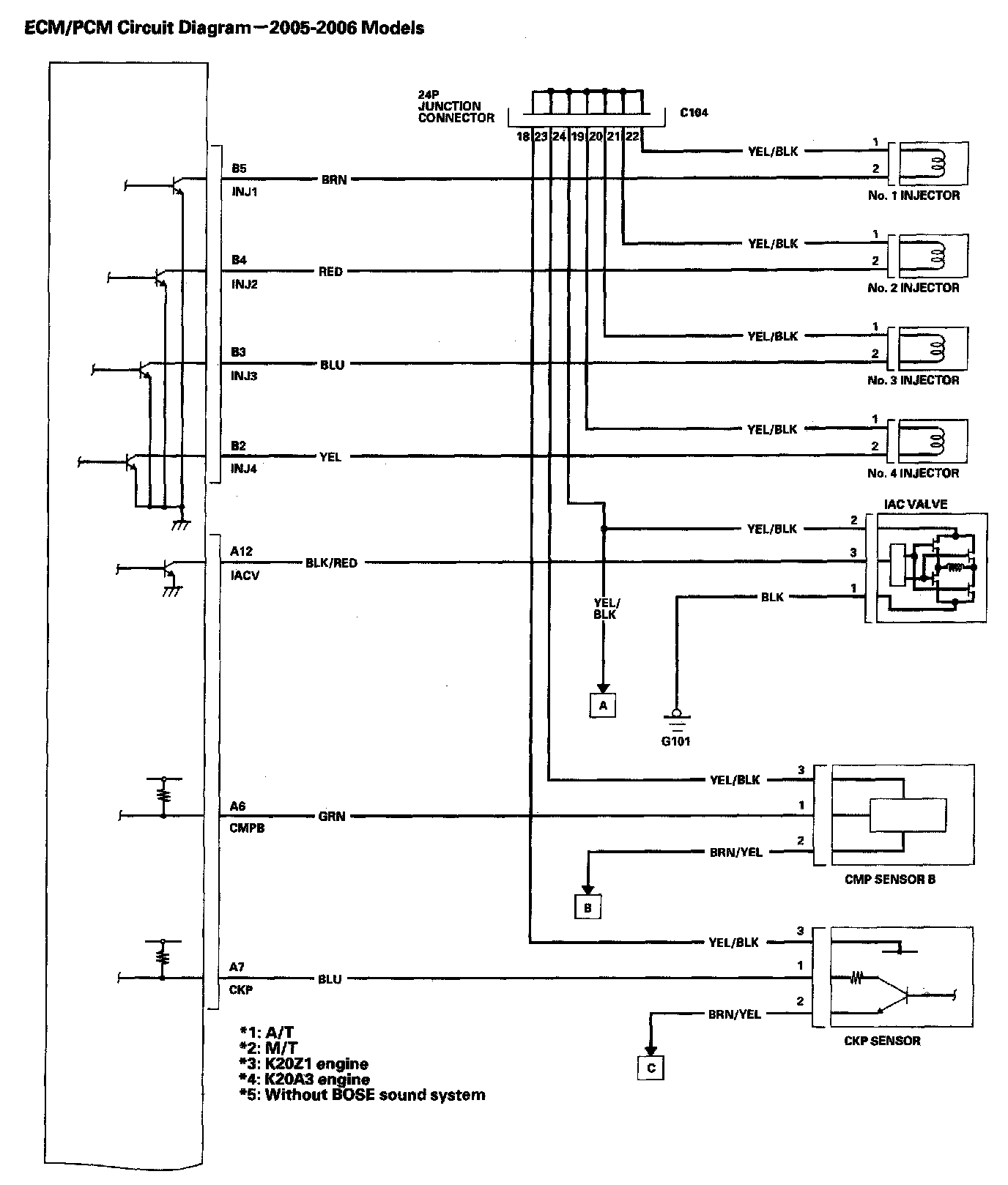

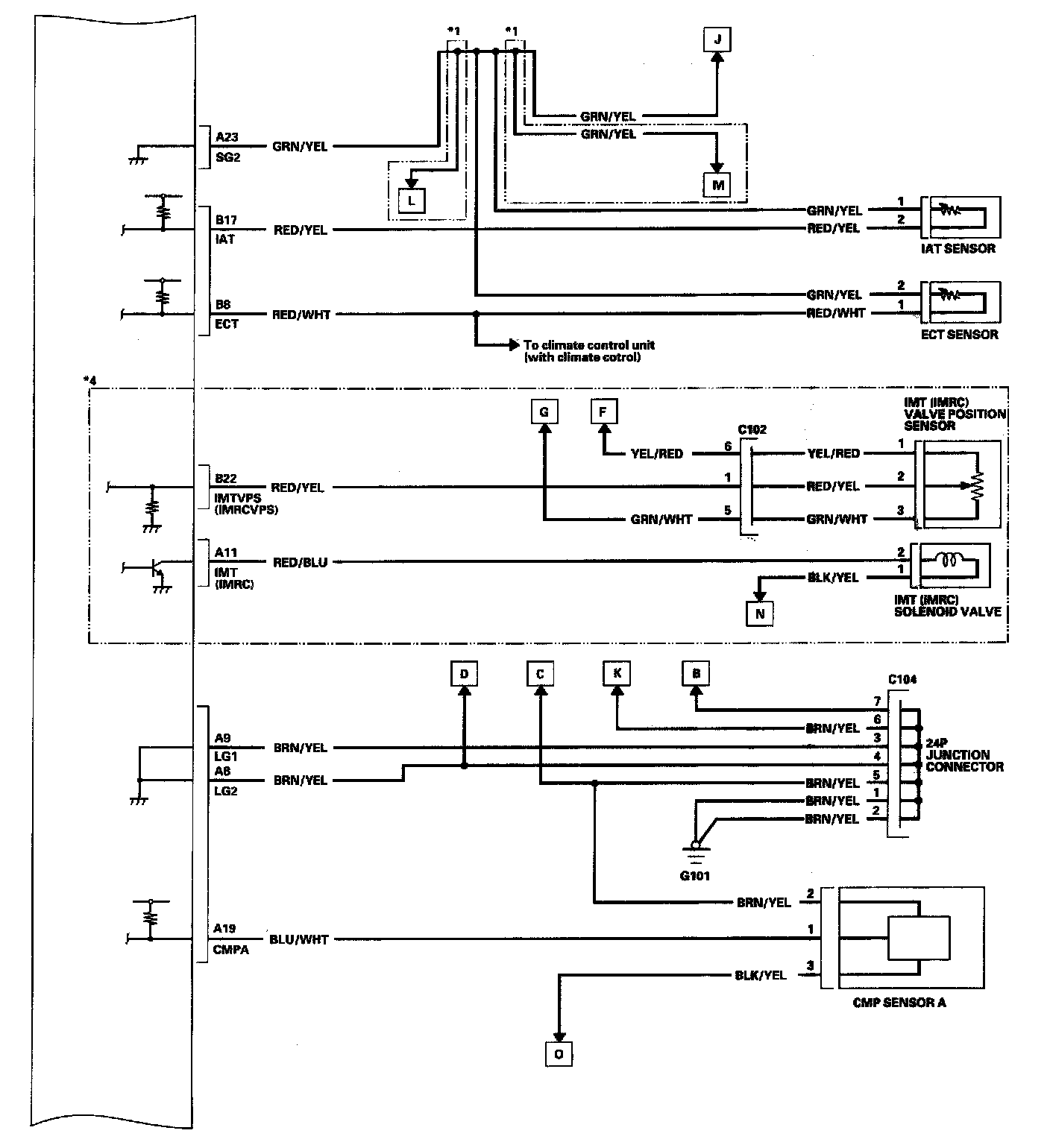

ECM/PCM Circuit Diagram 11-80:

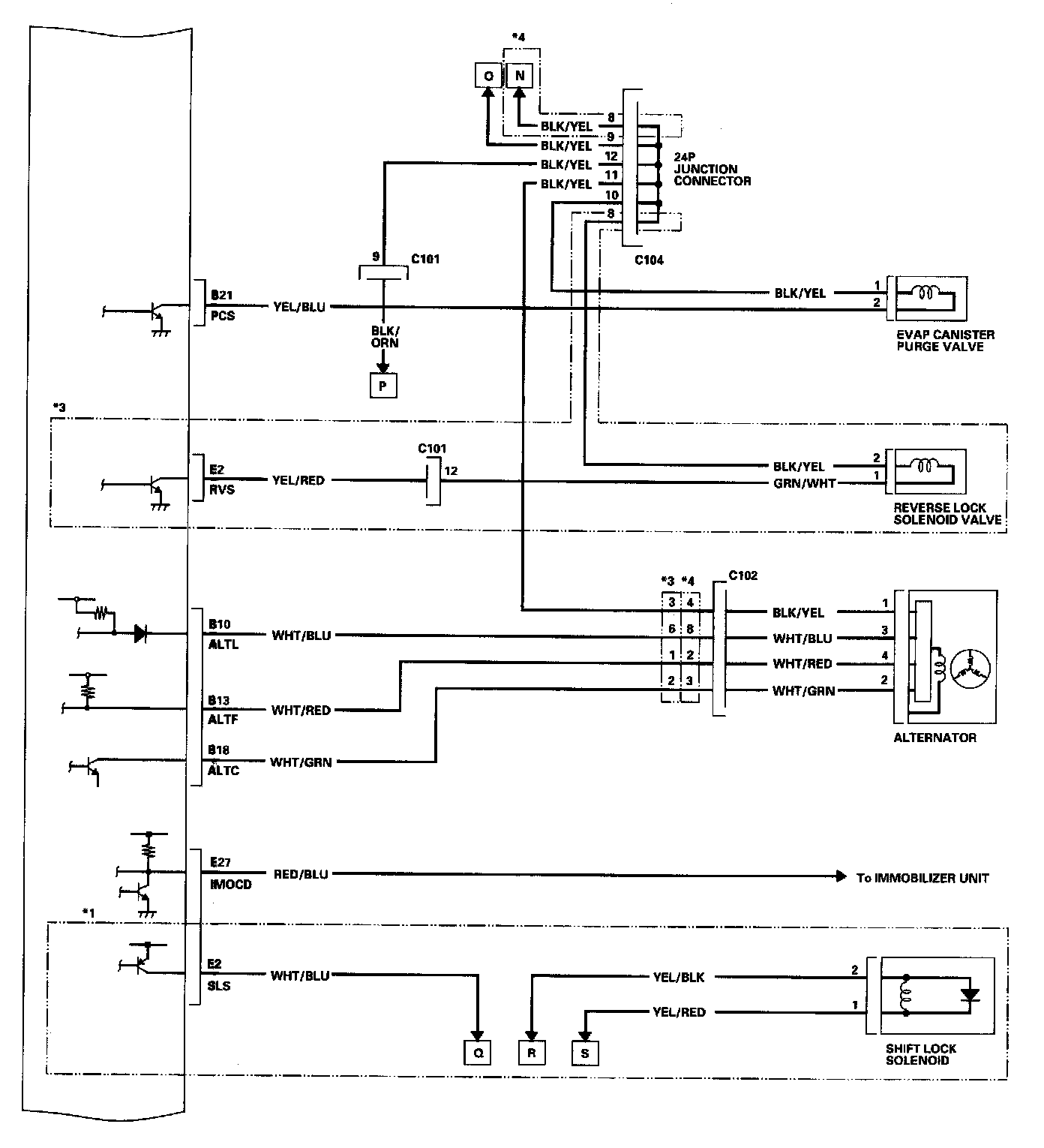

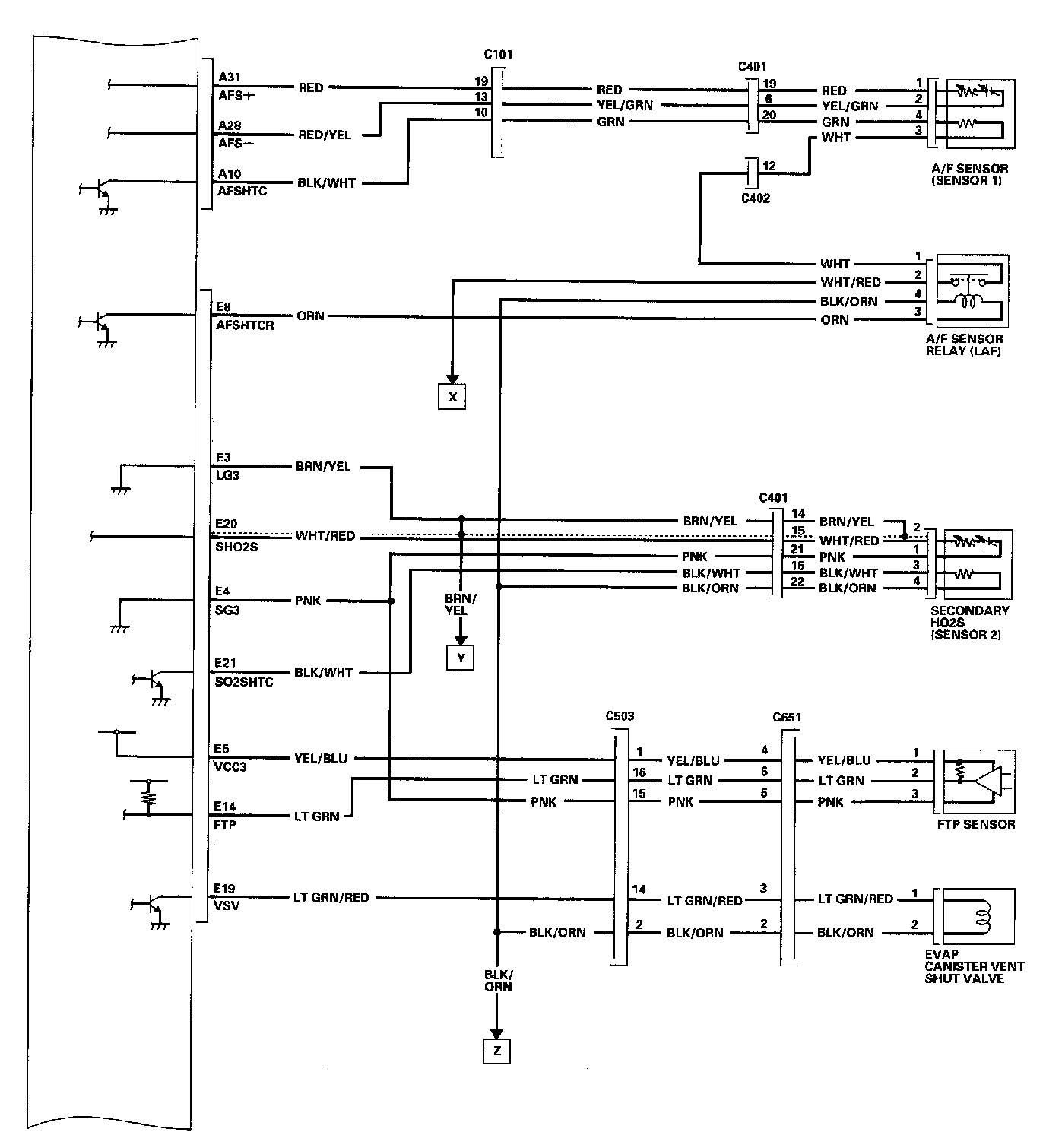

ECM/PCM Circuit Diagram 11-81:

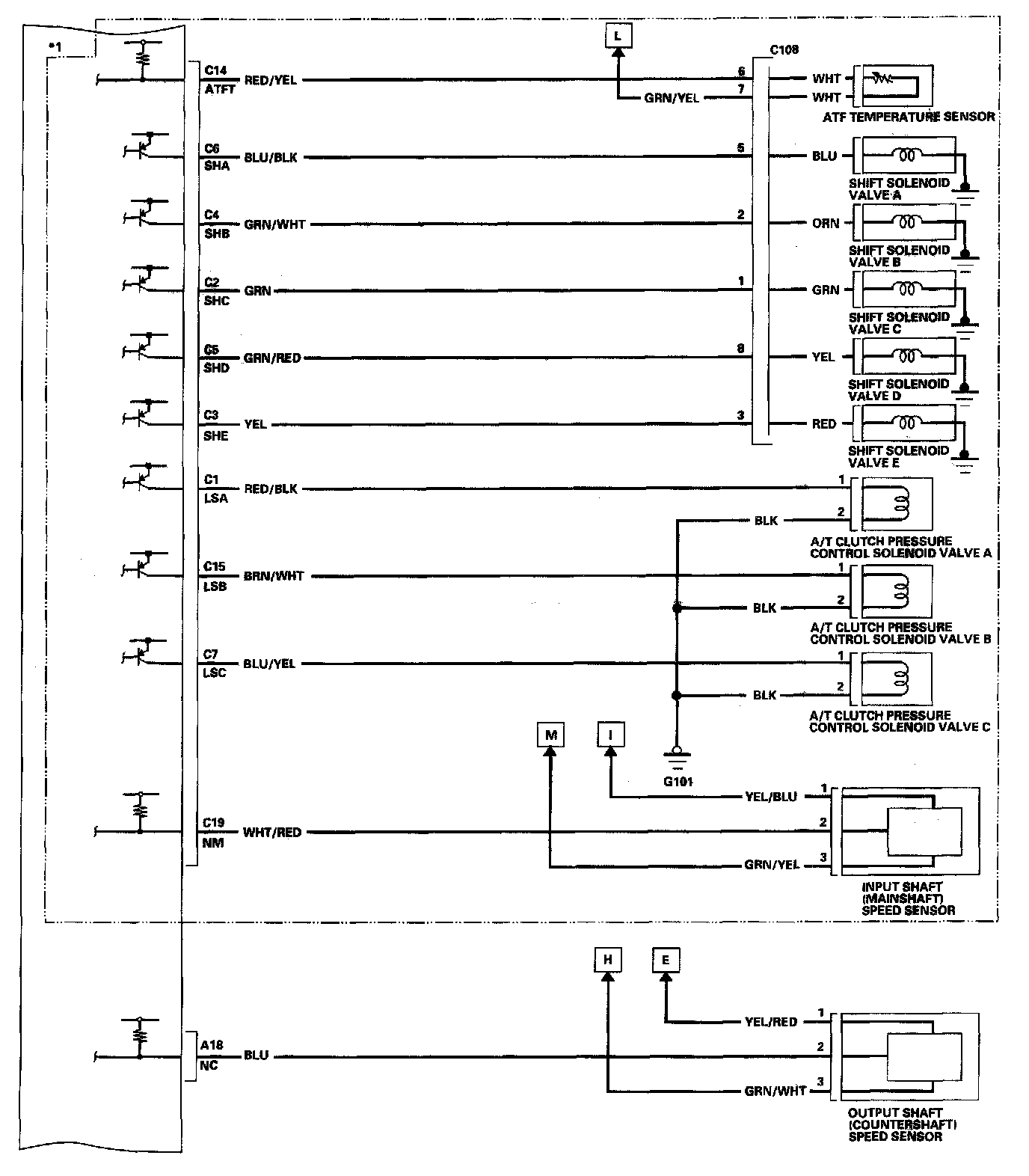

ECM/PCM Circuit Diagram 11-82:

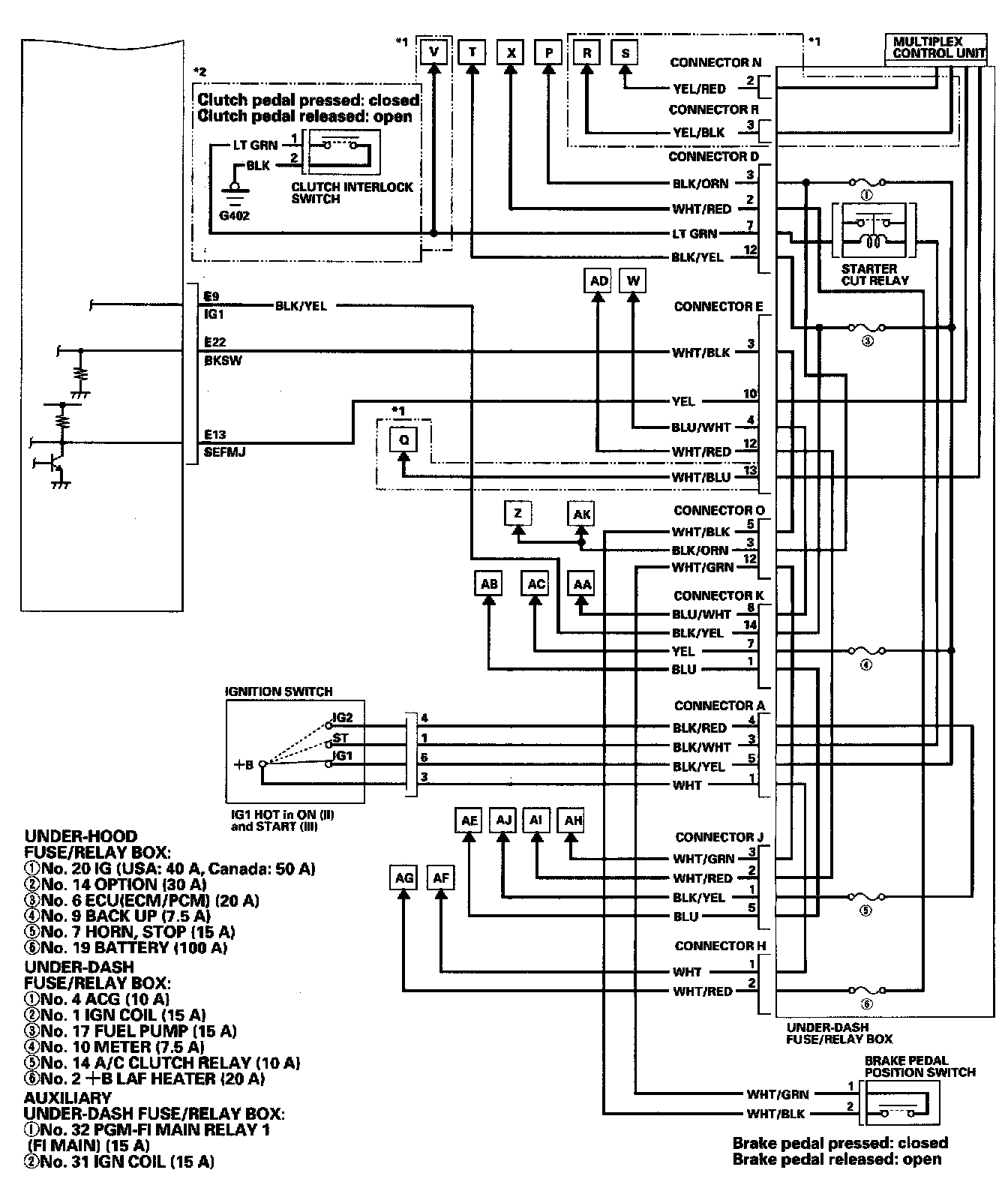

ECM/PCM Circuit Diagram 11-83:

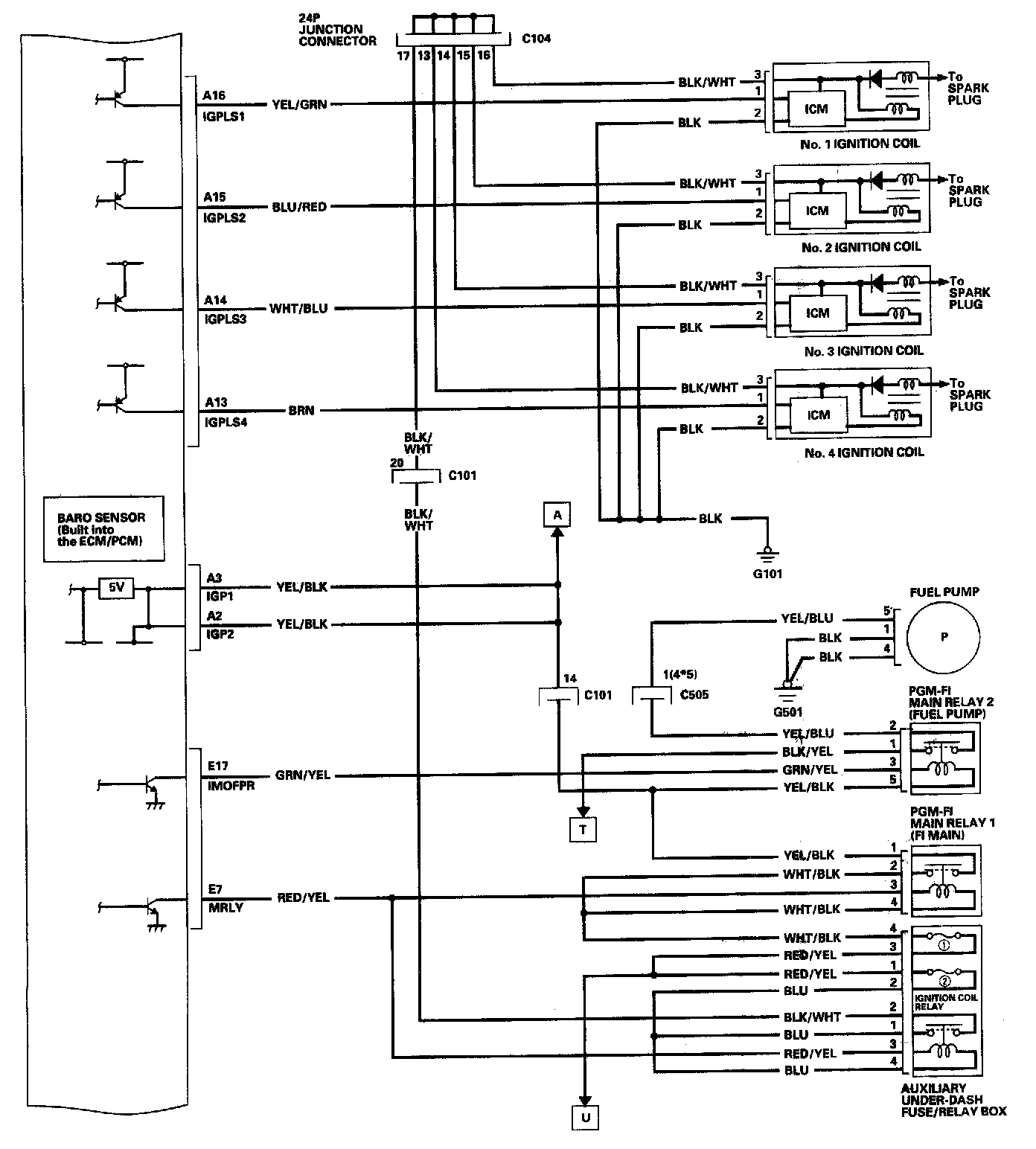

ECM/PCM Circuit Diagram 11-84:

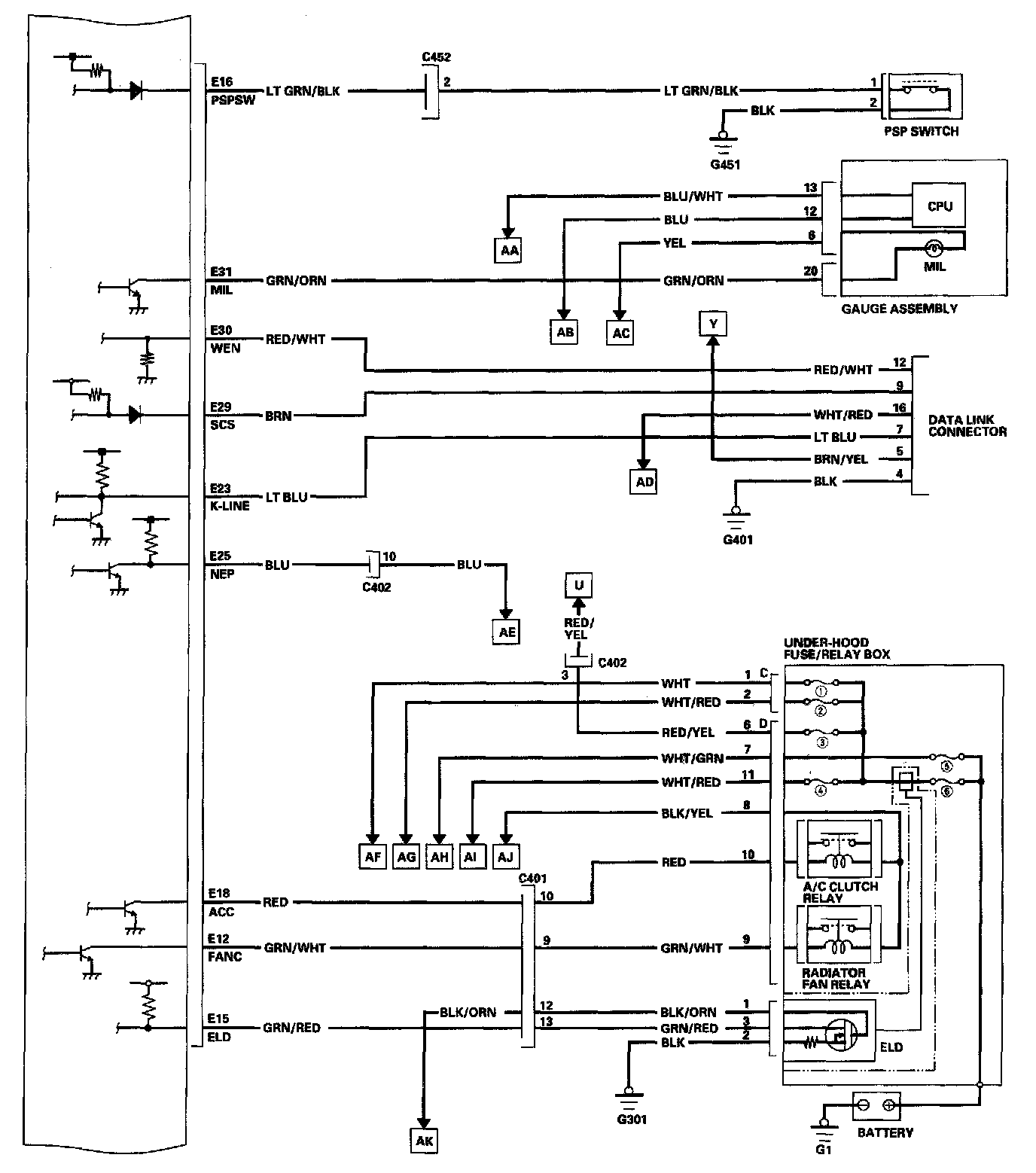

ECM/PCM Circuit Diagram 11-85:

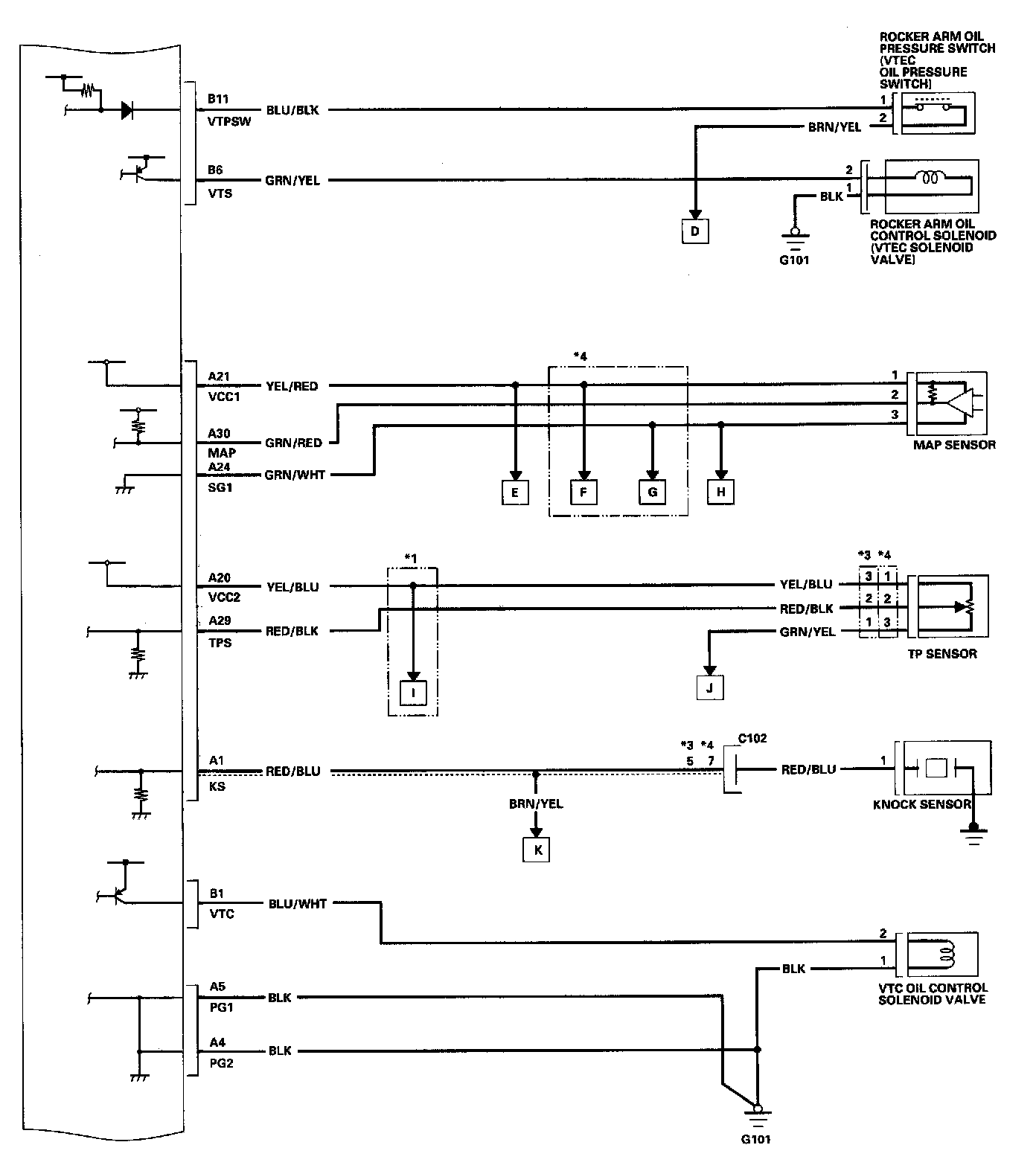

ECM/PCM Circuit Diagram 11-86:

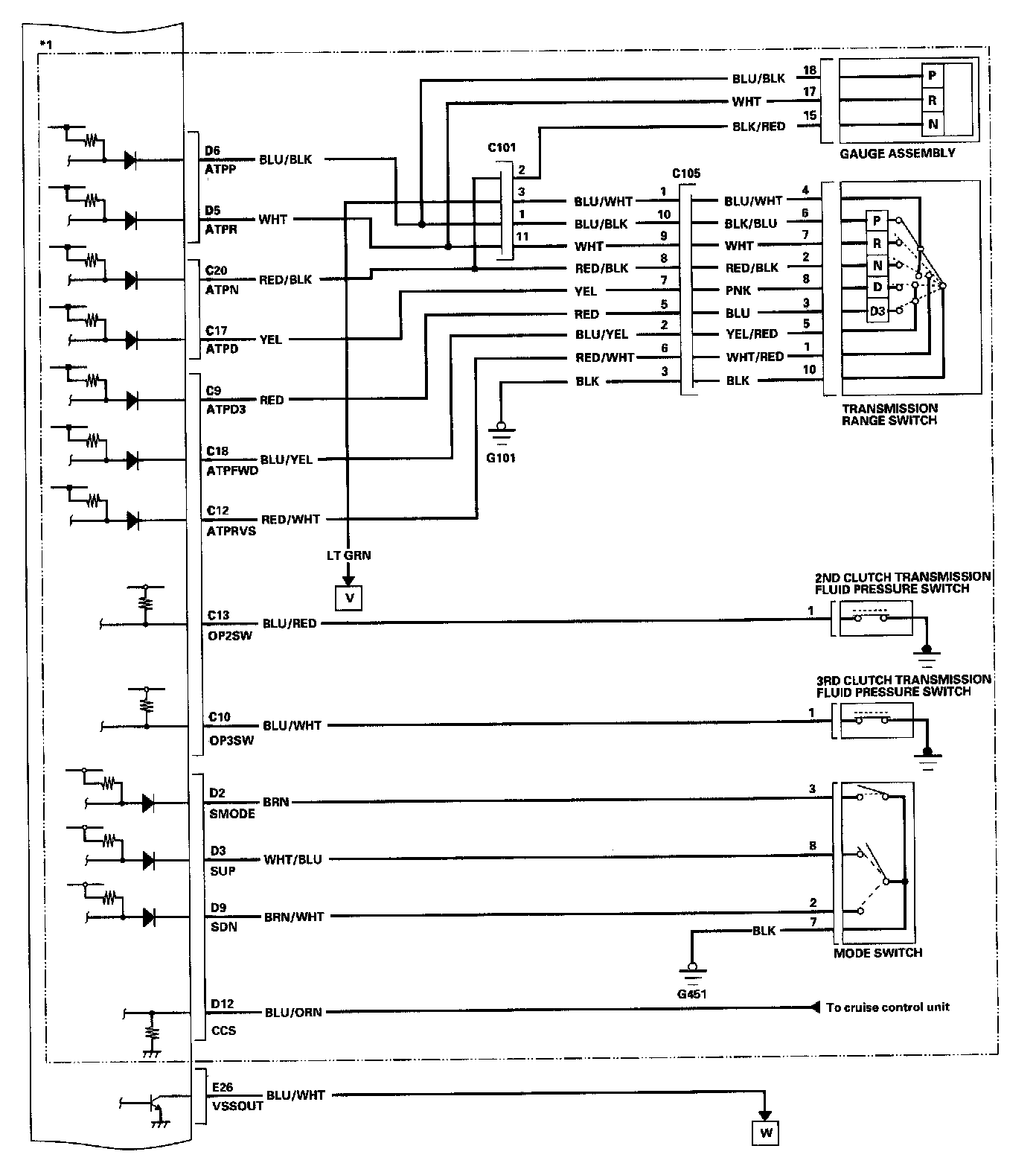

ECM/PCM Circuit Diagram 11-87:



ECM/PCM Circuit Diagram 11-88:



ECM/PCM Circuit Diagram 11-89:
