Air Bag Control Module: Locations

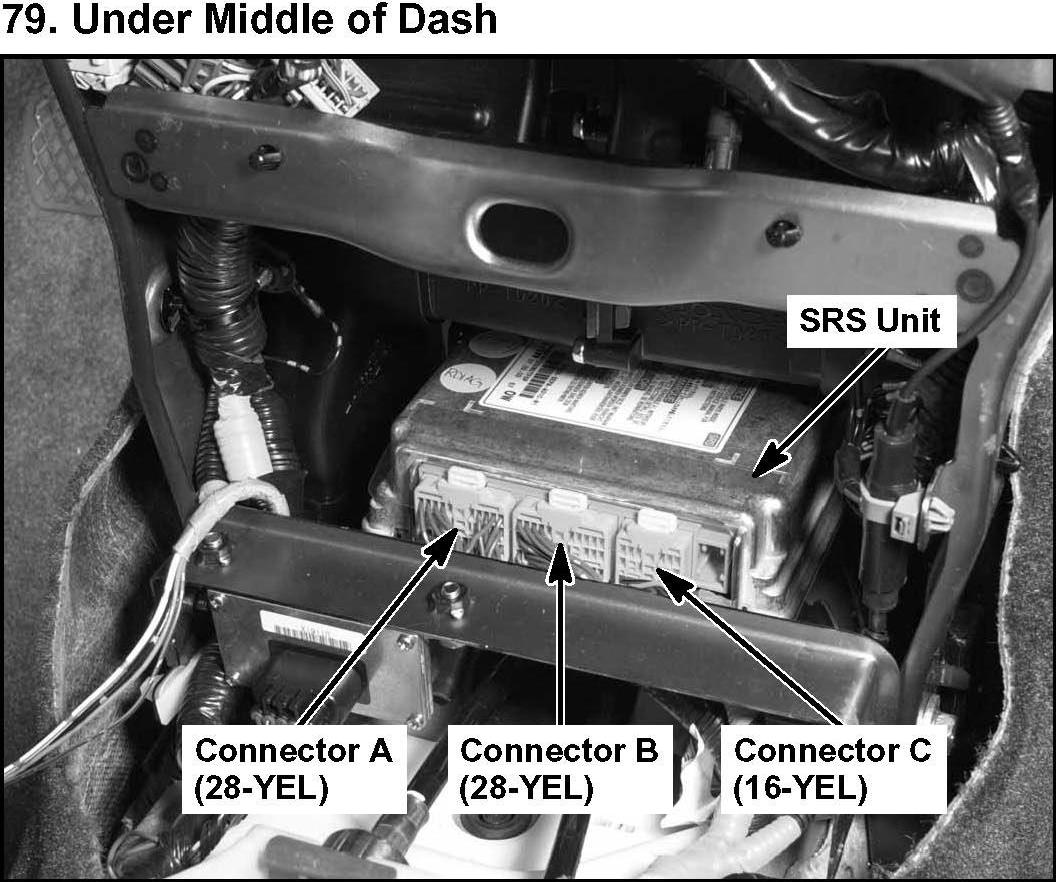

79. Under Middle of Dash:

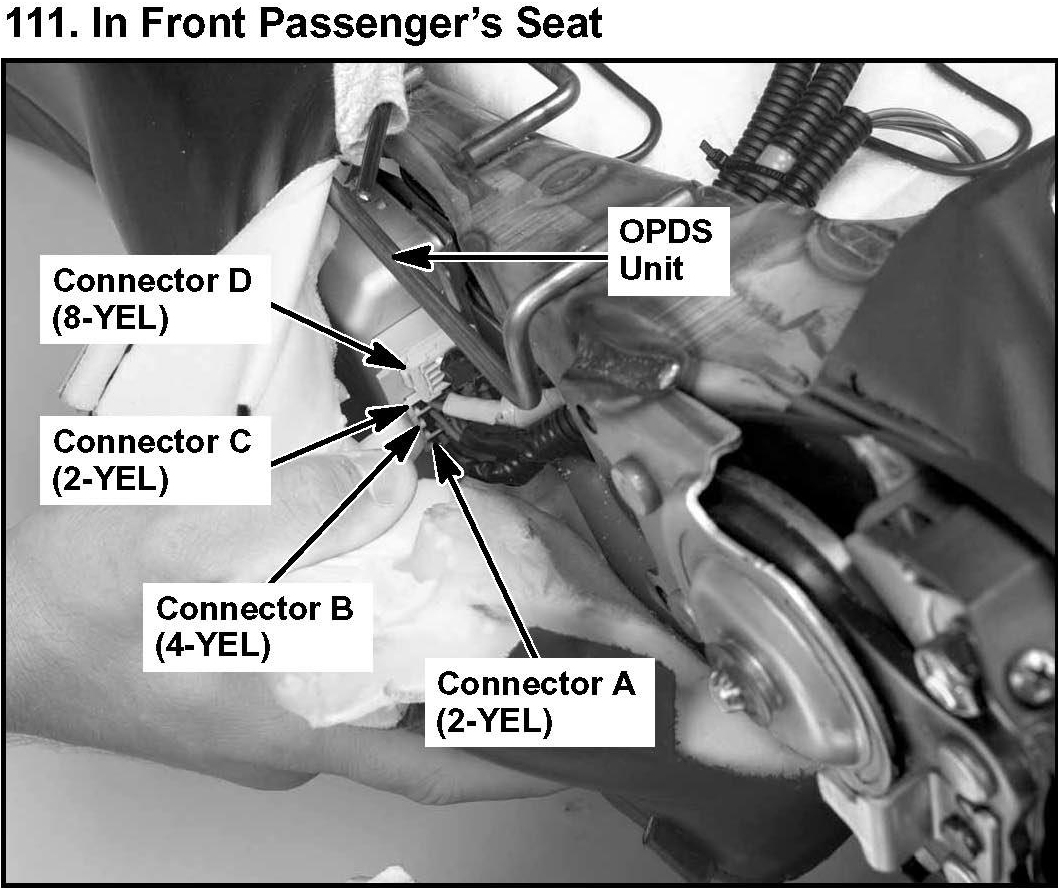

111. In Front Passenger's Seat:

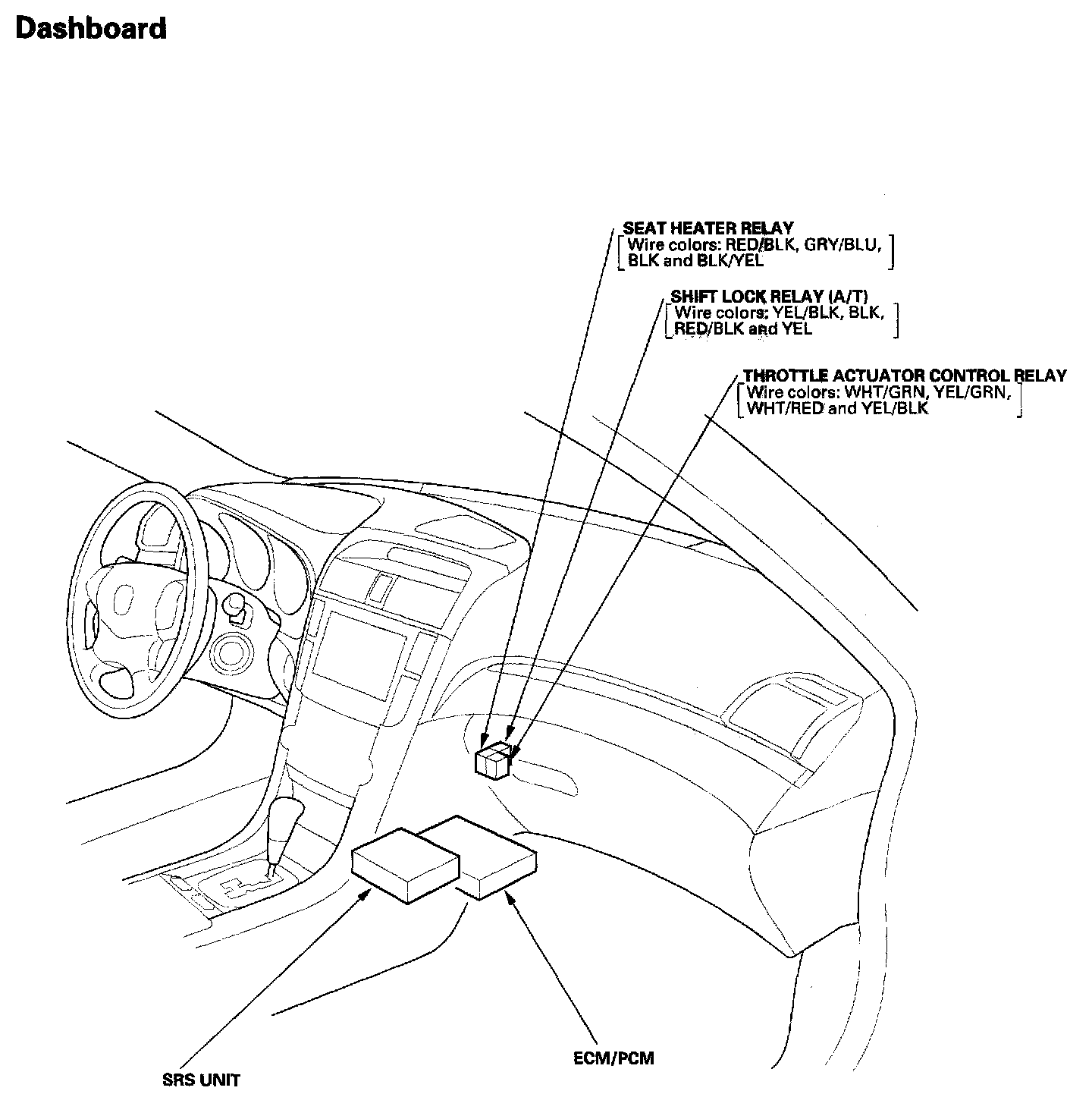

Relay And Control Unit Locations - Dashboard:



Relay And Control Unit Locations - Door And Seat:

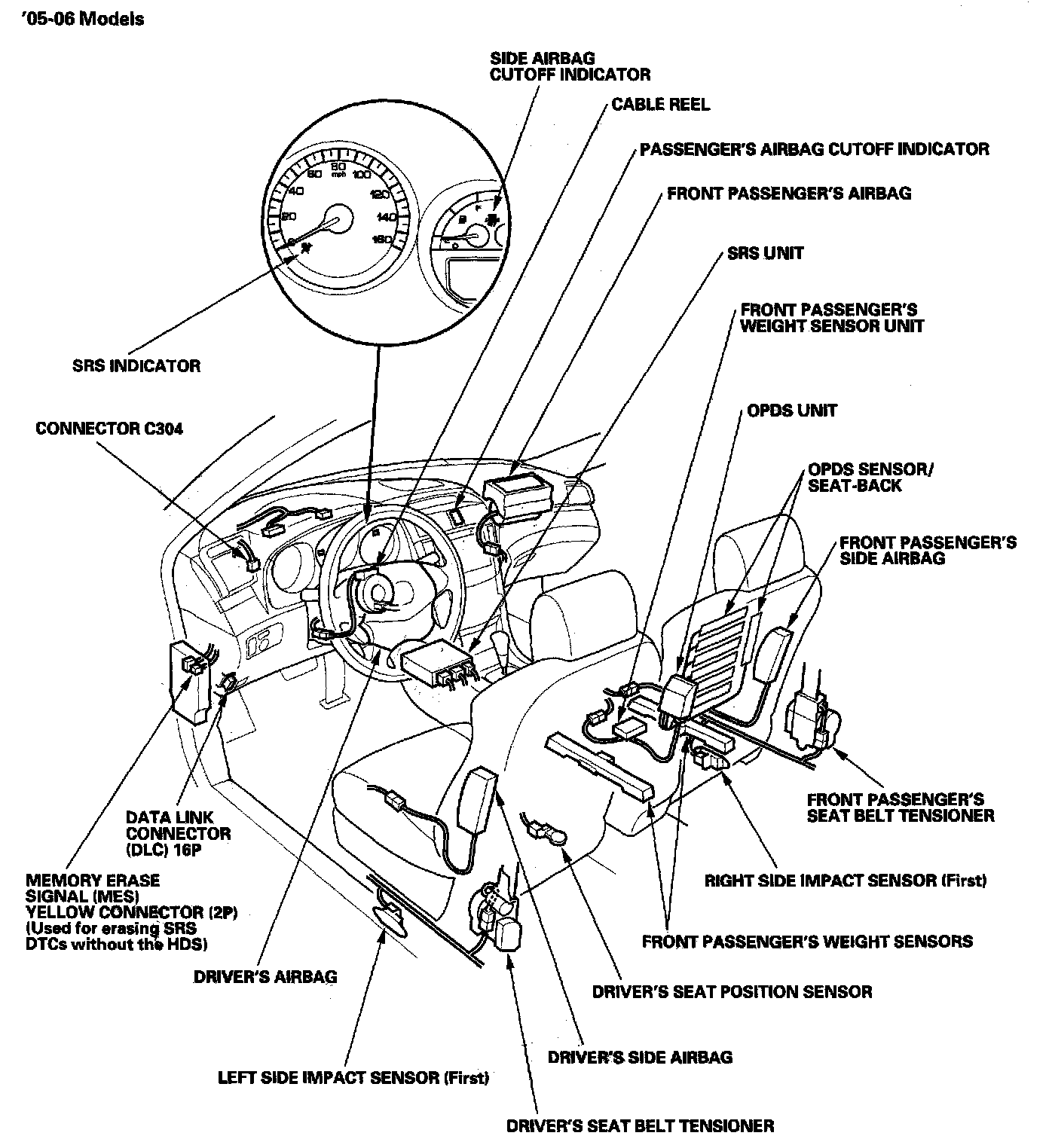

SRS - Component Location Index:
