Refrigerant Oil: Service and Repair
A/C Refrigerant Oil ReplacementRecommended PAG oil: KEIHIN SP-10
- P/N 38897-P13-003: 120 mL (4fl-oz)
- P/N 38899-P13-A01: 40 mL(1 1/3fl-oz)

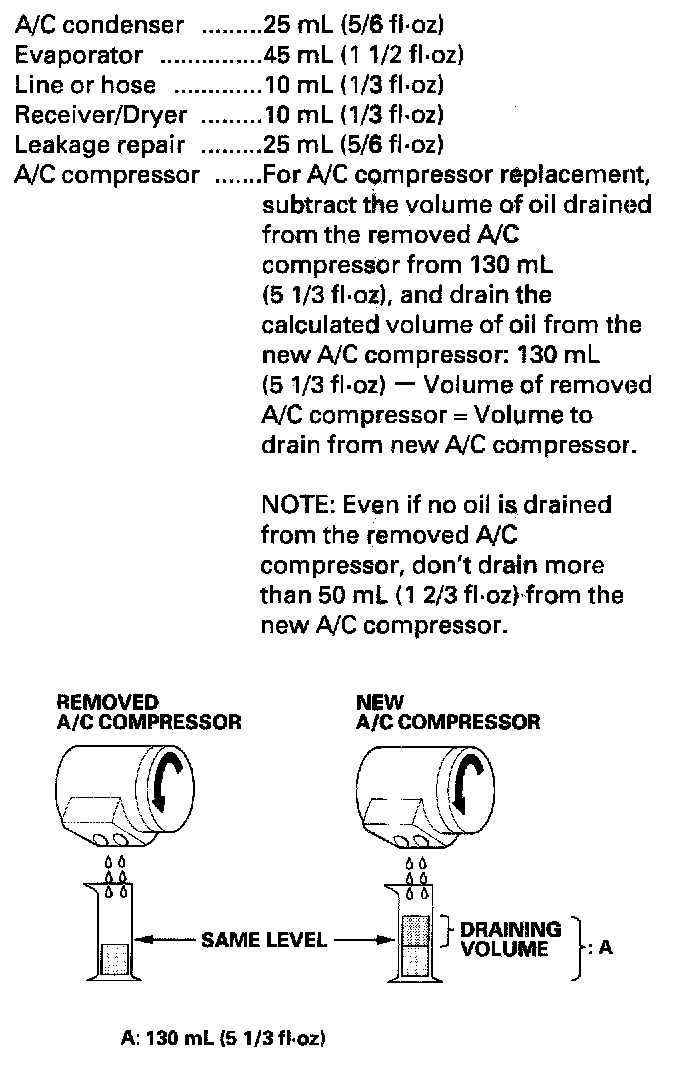

Add the recommended refrigerant oil in the amount listed if you replace any of the following parts.
- To avoid contamination, do not return the oil to the container once dispensed, and never mix it with other refrigerant oils.
- Immediately after using the oil, reinstall the cap on the container, and seal it to avoid moisture absorption.
- Do not spill the refrigerant oil on the vehicle; it may damage the paint; if it gets on the paint, wash it off immediately.
