Windows: Locations

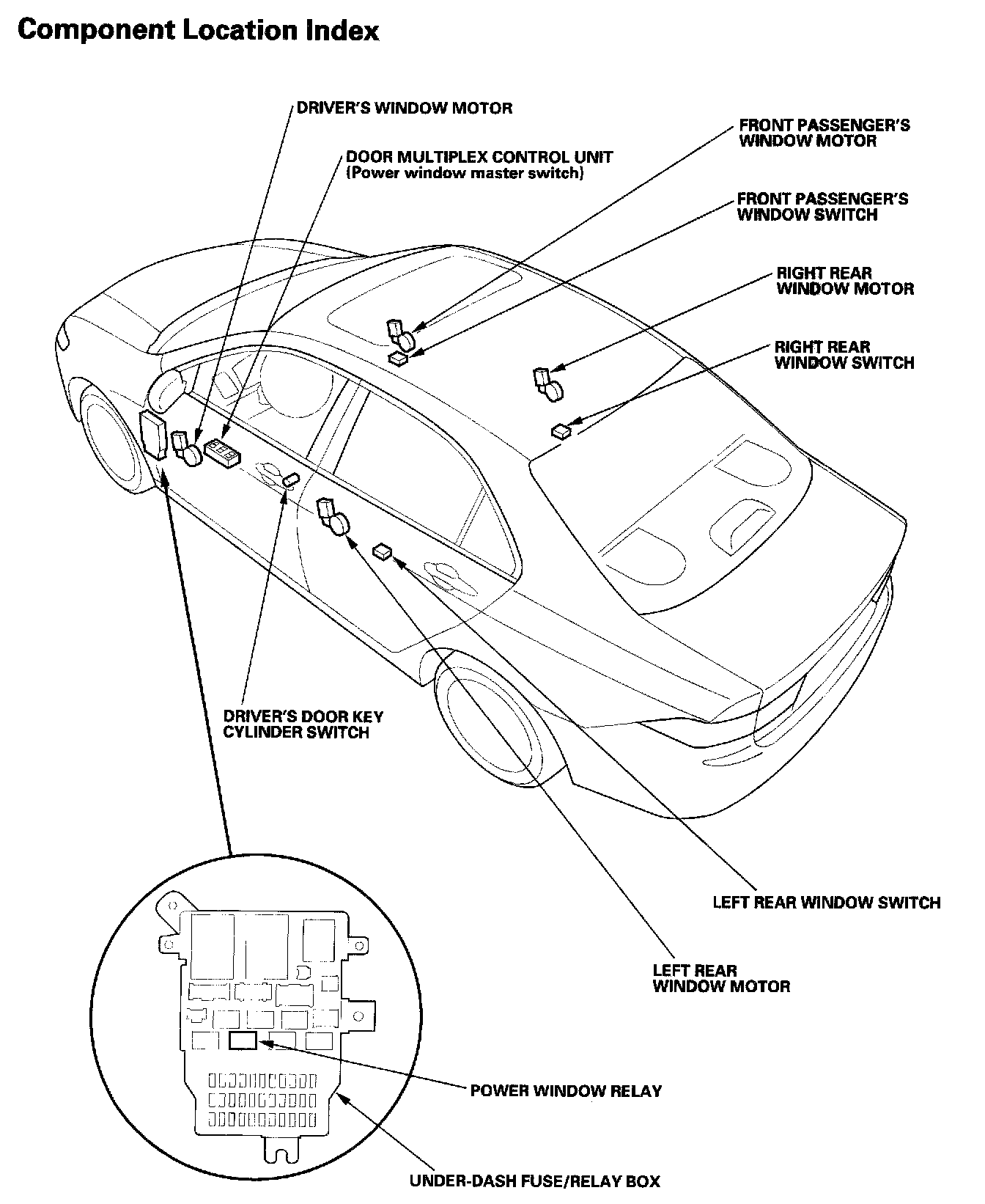

Power Windows - Component Location Index:

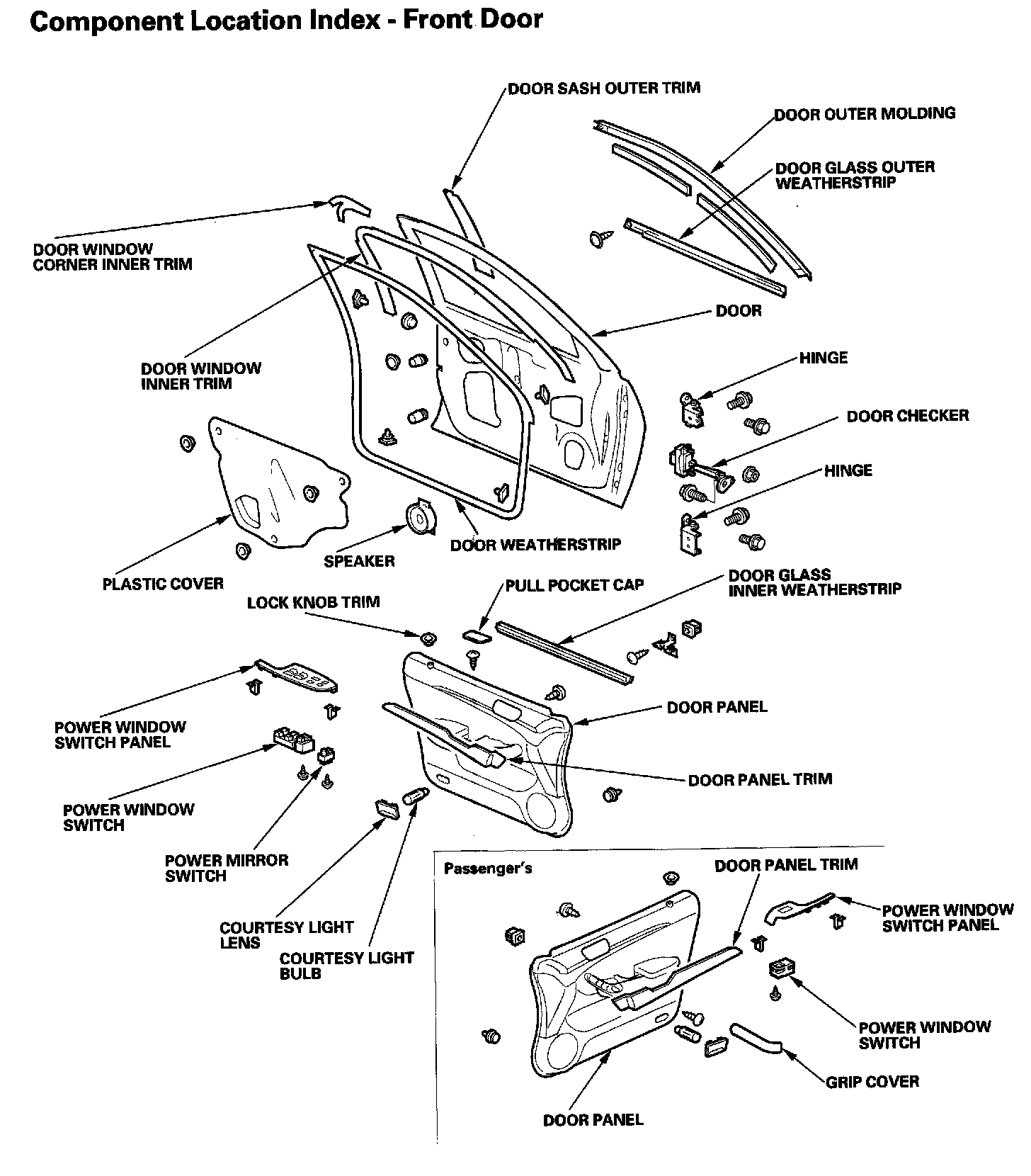

Doors - Component Location Index - Front Door:

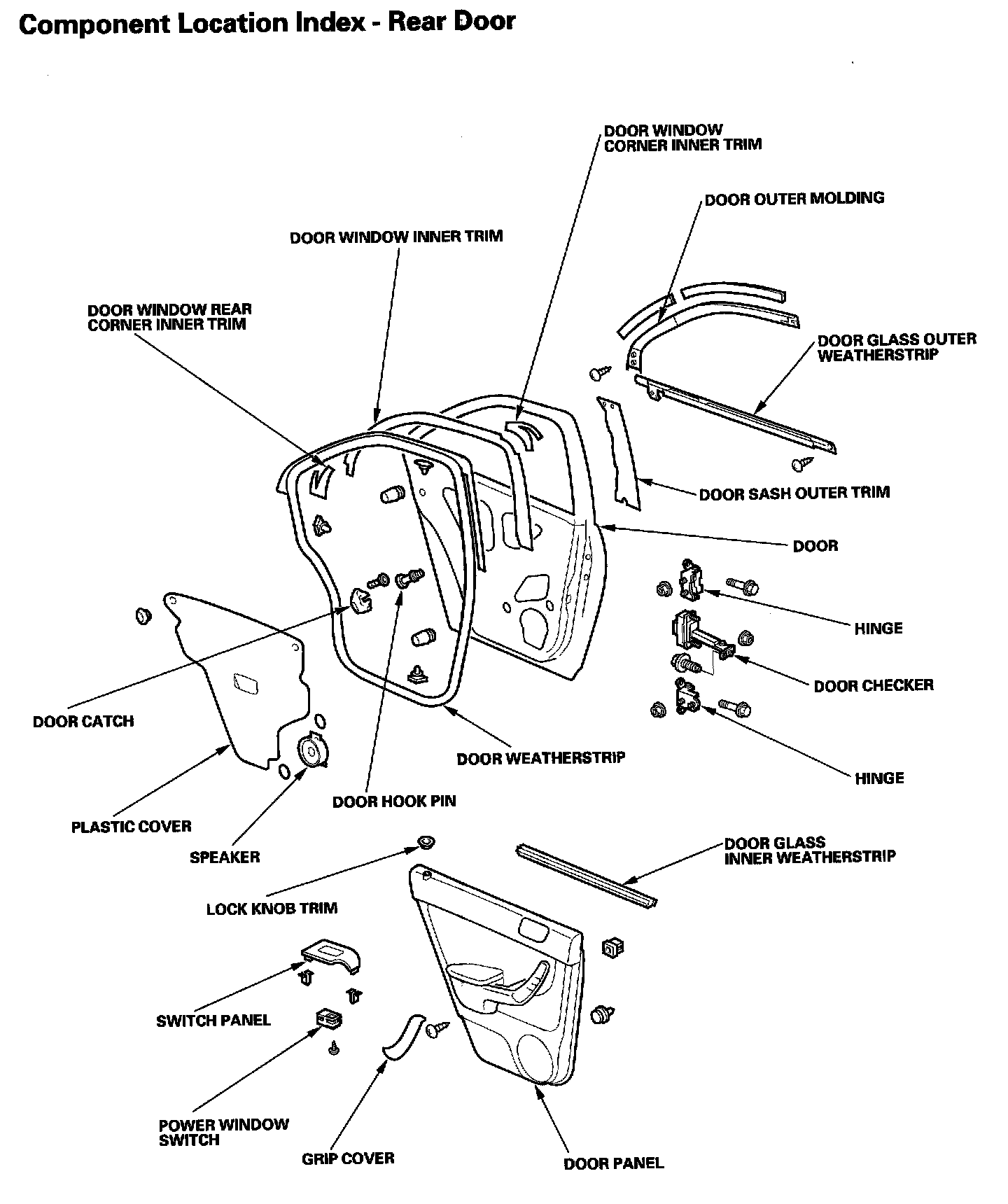

Doors - Component Location Index - Rear Door:



120. Driver's Door:



129. Front Passenger's Door:



130. Left Rear Door (Right Similar):
