Drive Belt Inspection

  1. Inspect the belt for cracks and damage. If the belt is cracked or damaged, replace it.

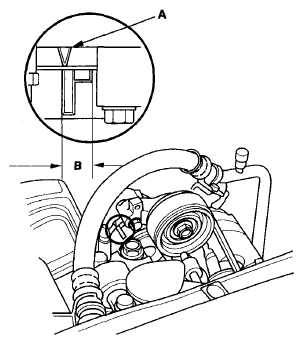

  2. Check that the auto-tensioner indicator (A) is within the standard range (B) as shown. If it is out of the standard range, replace the drive belt (see DRIVE BELT INSPECTION ).
Fig 1: Checking Auto-Tensioner Indicator With Standard Range
G06265439Courtesy of AMERICAN HONDA MOTOR CO., INC.
