Log Data

This screen allows the factory to collect log data to troubleshoot navigation system issues.

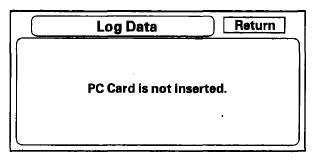

• There is no card in the "PC Card Slot", the screen appears as:
  Fig 1: Log Data - Screen Display

  Courtesy of AMERICAN HONDA MOTOR CO., INC.

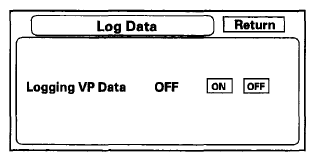

• However, if the factory provides a PC card, insert it into the card slot (label side up). Follow the factory logging VD data procedure for gathering test data and properly ending the test.
  Fig 2: Log Data - Screen Display

  Courtesy of AMERICAN HONDA MOTOR CO., INC.
