VSA Modulator-Control Unit Removal and Installation: Removal

  1. Disconnect the VSA modulator-control unit 37P connector (A) by pushing the lock (B) and pulling down the lever (C); the connector disconnects itself.

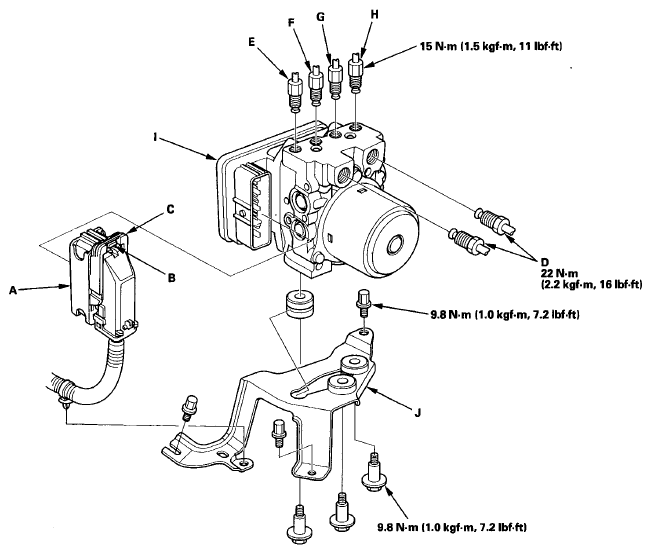

    Fig 1: Exploded View Of VSA Modulator-Control Unit With Torque Specifications
    G06267975Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Disconnect the six brake lines from the VSA modulator-control unit.
    NOTE: Brake lines are connected to the master cylinder (D) and to the right-front (E), the left-rear (F), the right-rear (G), and the left-front (H) brake systems.
  3. Remove the VSA modulator-control unit (I) with the bracket (J) from the body.
  4. Remove the VSA modulator-control unit from the bracket.
