Component Location Index
K20Z2

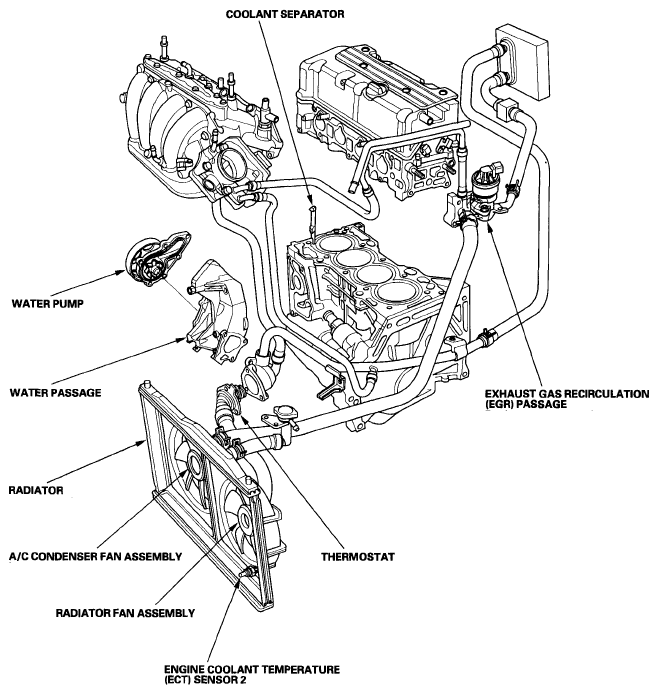

Fig 1: Identifying Cooling System Component Location Index (K20Z2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
K20Z3

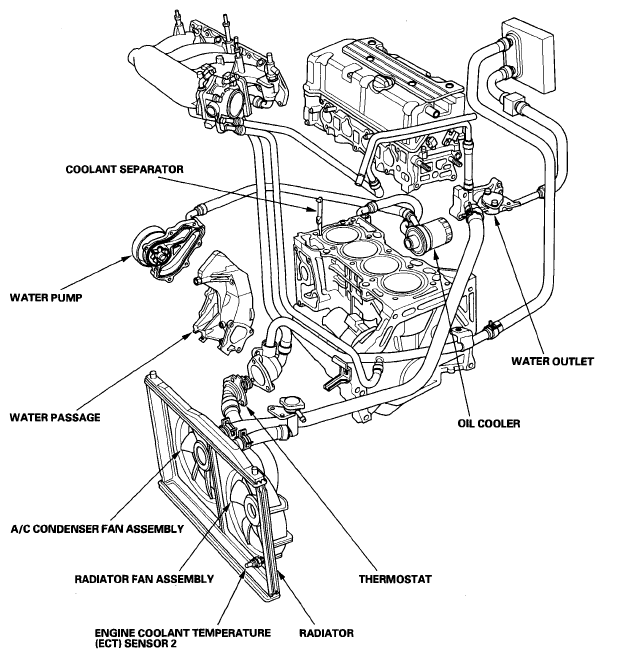

Fig 2: Identifying Cooling System Component Location Index (K20Z3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
