Front Air Guide Plate Replacement
WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Take care not to scratch the body

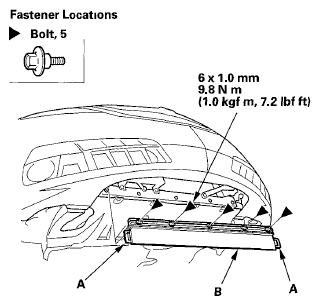

- Remove the bolts, and release the hooks (A), then remove the front air guide plate (B)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Install the plate in the reverse order of removal
