Power Relay Test

Power Relay Test

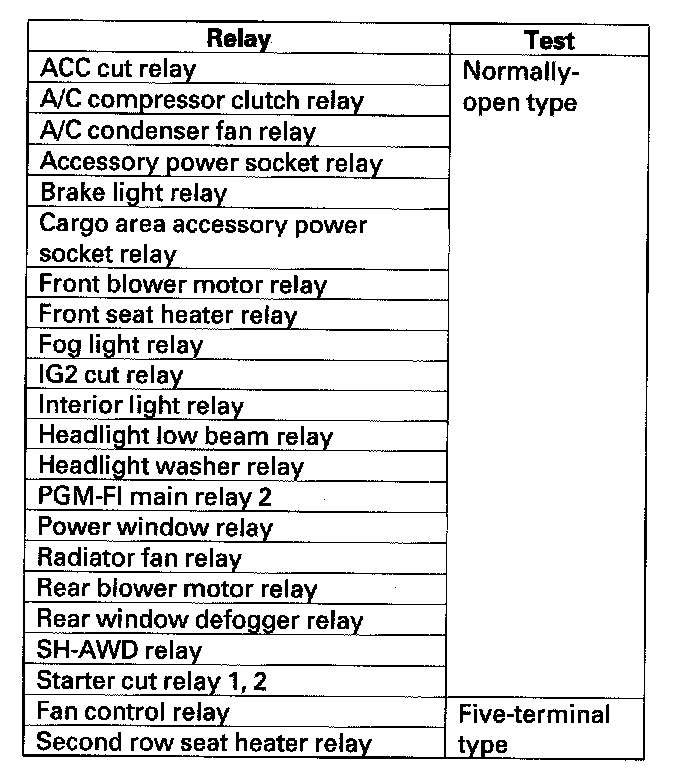

Use this chart to identify the type of relay, then do the test listed for it.

Normally-open type

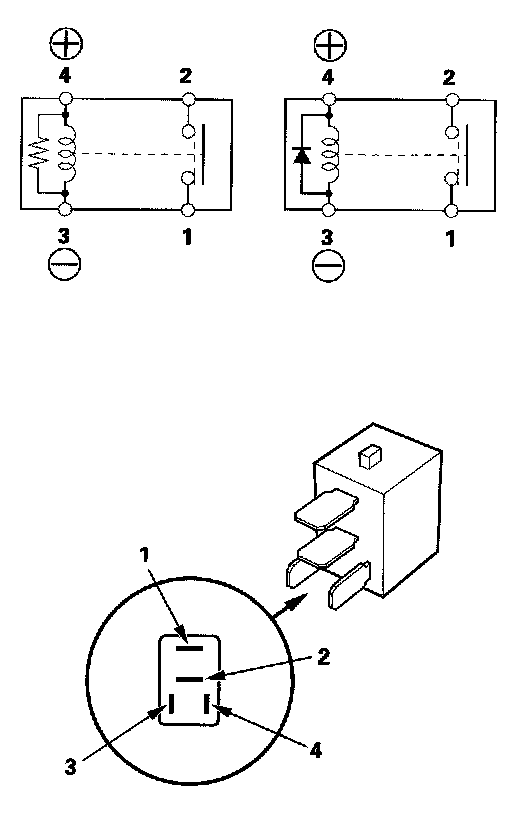

Check for continuity between the terminals.
- There should be continuity between the No. 1 and No. 2 terminals when battery positive terminal is connected to the No. 4 terminal, and battery negative terminal is connected to the No. 3 terminal.
- There should be no continuity between the No. 1 and No. 2 terminals when power is disconnected.
