Wiper/Washer Switch (Combination Switch Control Unit) Input Test
Wiper/Washer Switch (Combination Switch Control Unit) Input TestNOTE: Before testing, troubleshoot the B-CAN System Diagnosis Test Mode A.
1. Remove the dashboard lower cover.
2. Remove the steering column covers.

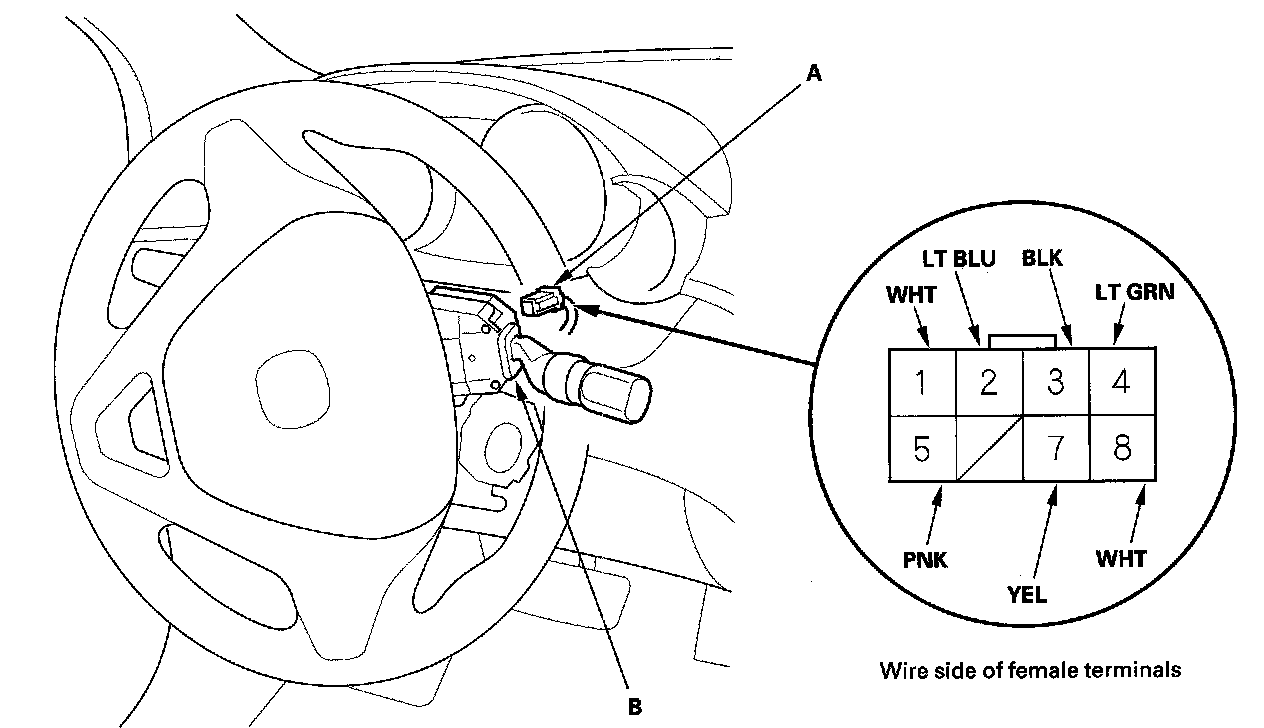

3. Disconnect the 8P connector (A) from the wiper/washer switch (B).
4. Inspect the connector and socket terminals to be sure they are all making good contact.
- If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
- If the terminals look OK, go to step 5.

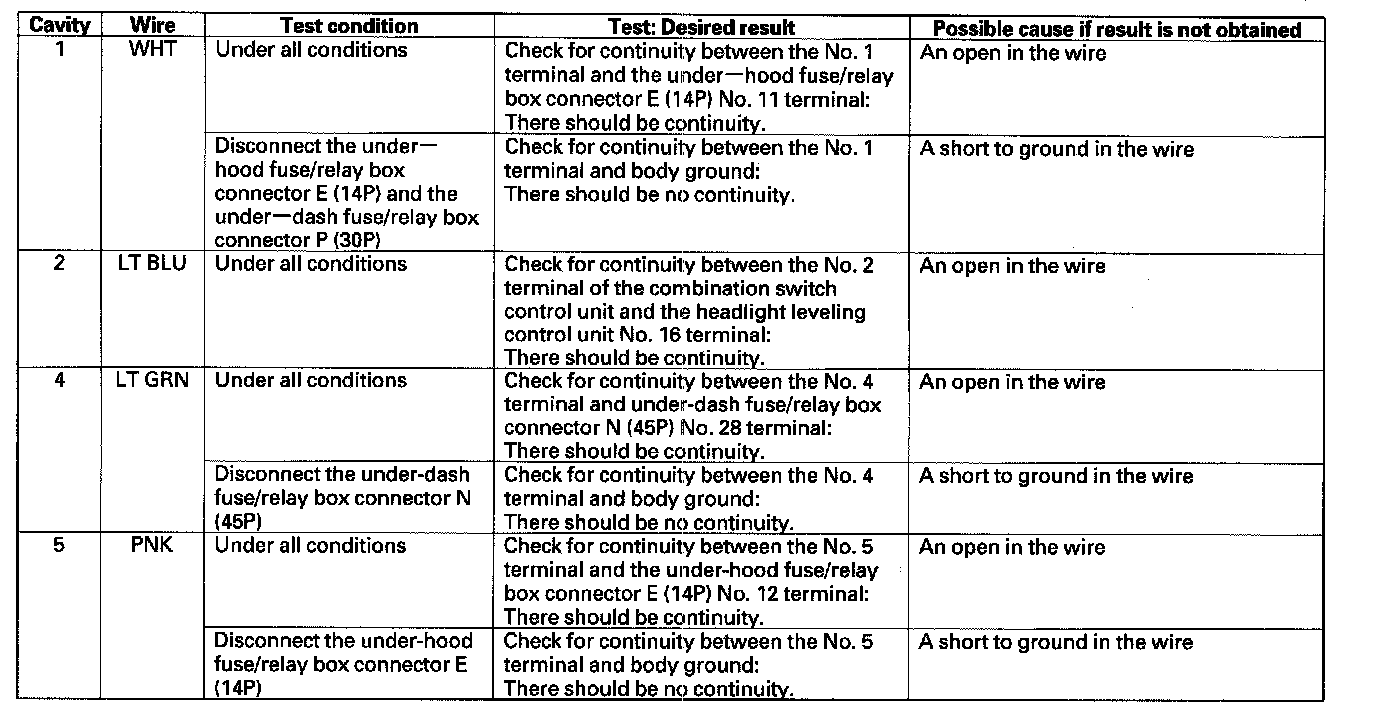

5. With the connector still disconnected, make these input tests at the connector.
- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, go to step 6.

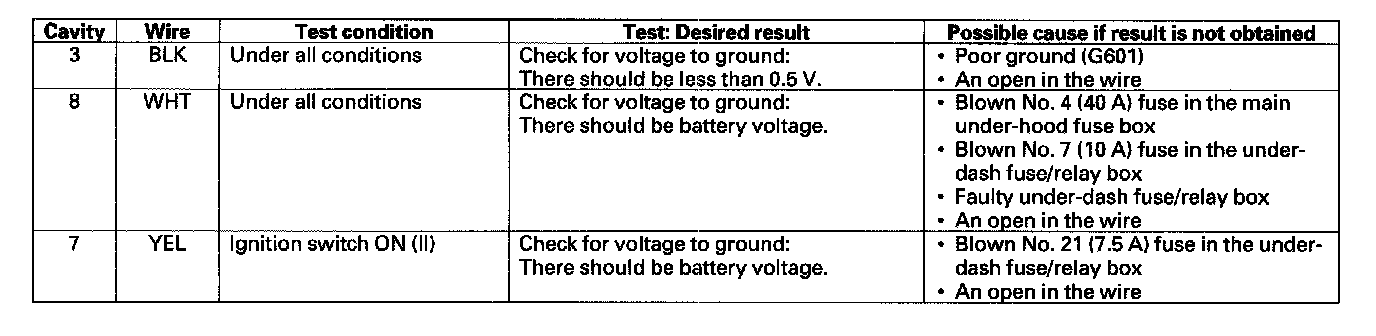

6. Reconnect the 8P connector to the wiper/washer switch, and make these input tests at the connector.
- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, replace the wiper/washer switch (combination switch control unit).
