Sealing Bolt Installation

NOTE: When installing the sealing bolt (A), always use a new washer.

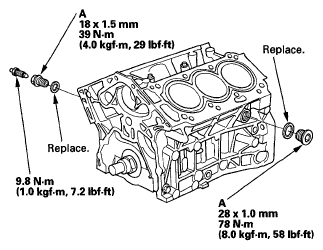

Fig 1: Sealing Bolt With Torque Specifications
G05484821Courtesy of AMERICAN HONDA MOTOR CO., INC.
