Throttle Position Learning Check

WARNING: This page is about a different car, the 2006 Acura MDX, 2005 Acura MDX, 2004 Acura MDX, and 2003 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Connect the HDS to the data link connector (DLC) (A) located under the driver's side of the dashboard.

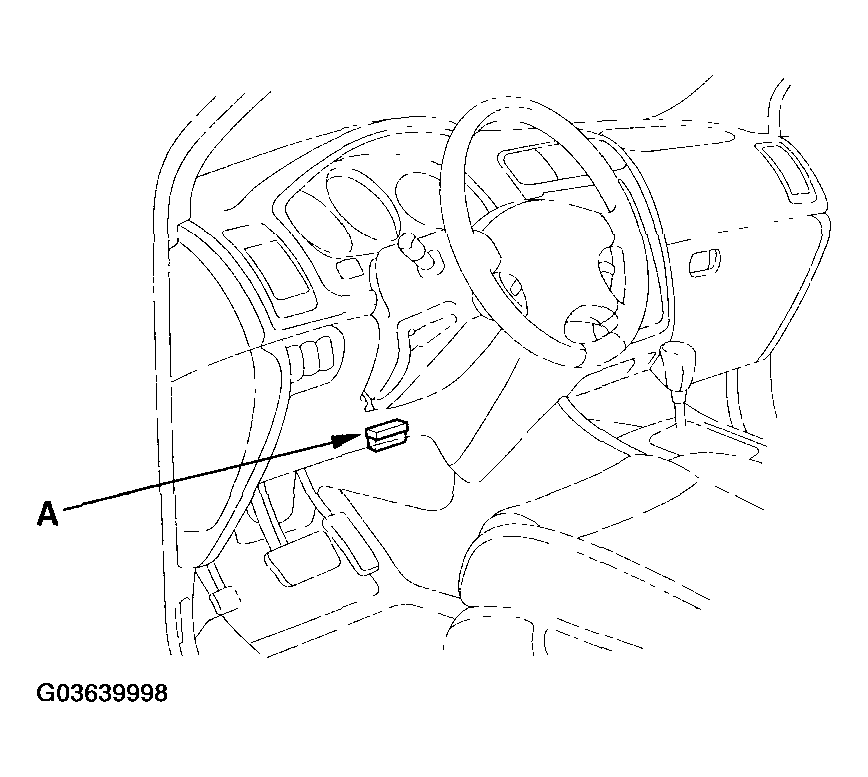

Fig 1: Connecting HDS To DLC
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Select the INSPECTION MENU with the HDS.
Do the TP POSITION CHECK in the ETCS TEST. If it indicates to clean the throttle body, do the throttle body cleaning (see THROTTLE BODY CLEANING ).
