Exploded View

WARNING: This page is about a different car, the 2006 Acura MDX, 2005 Acura MDX, 2004 Acura MDX, and 2003 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

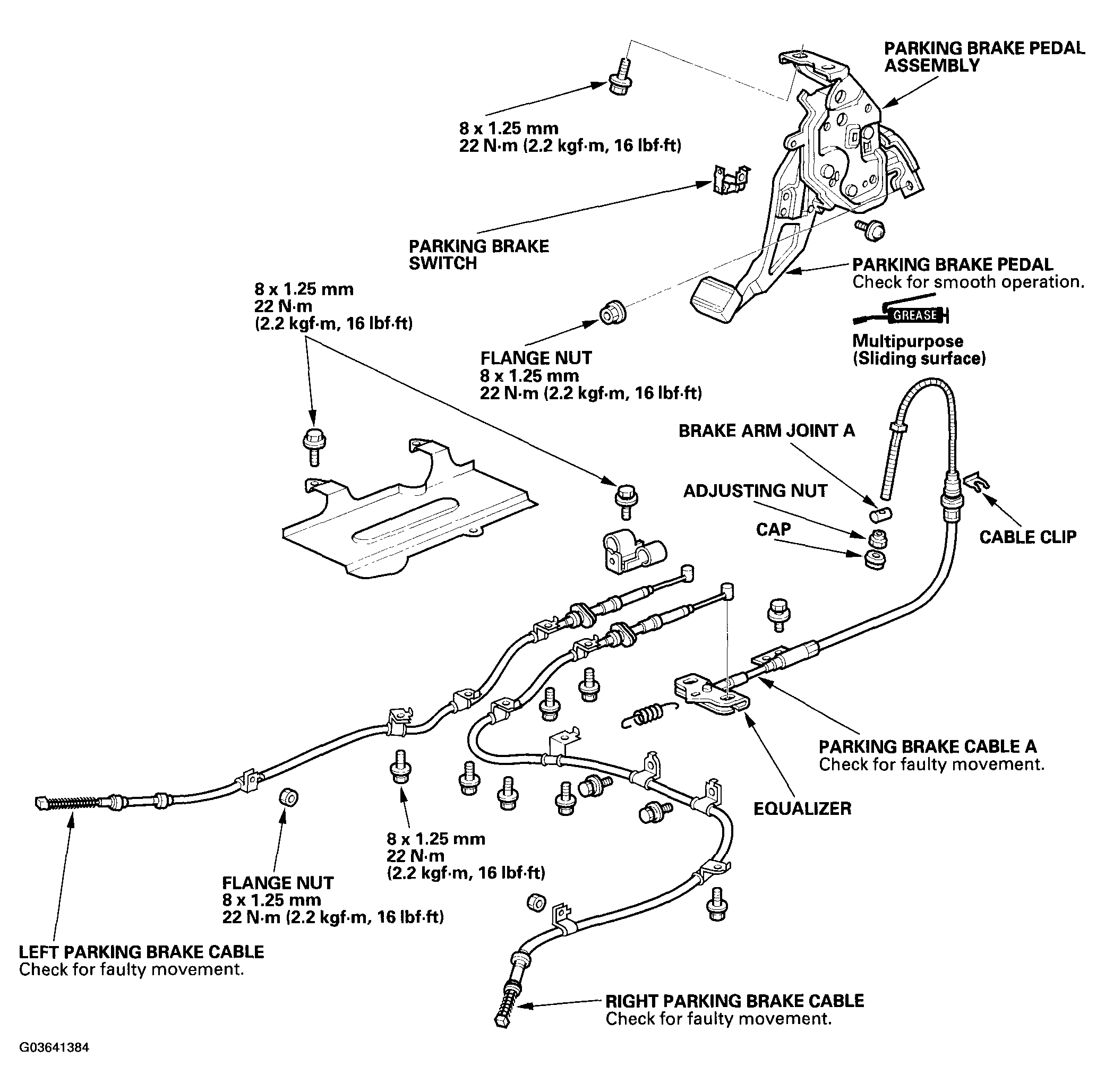

Fig 1: Exploded View Of Parking Brake Cable

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: The parking brake cable must not be bent or distorted. This will lead to stiff operation and premature cable failure. Refer to the Exploded View as needed during this procedure.

Remove the parking brake shoes, and disconnect the parking brake cable from the brake shoe (see PARKING BRAKE SHOE REPLACEMENT ).

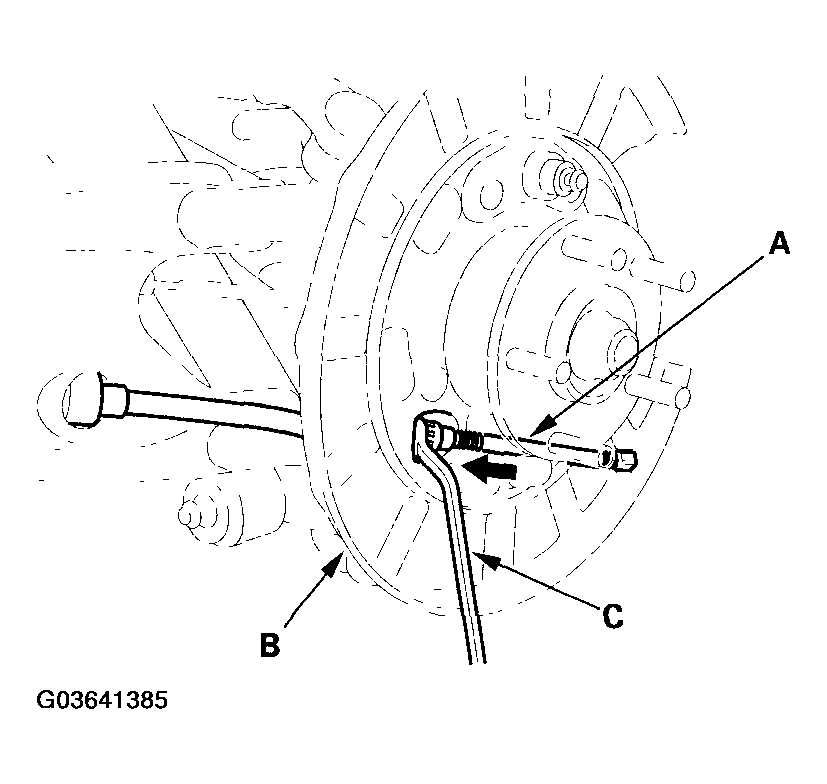

Remove the parking brake cable (A) from the backing plate (B) using a 12 mm offset wrench (C).

Fig 2: Removing Parking Brake Cable From Backing Plate
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the parking brake cable in the reverse order of removal, and adjust the parking brake (see PARKING BRAKE CHECK AND ADJUSTMENT ). Apply the parking brake firmly ten times, then adjust it again.
