'03-04 Models

WARNING: This page is about a different car, the 2006 Acura MDX, 2005 Acura MDX, 2004 Acura MDX, and 2003 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the driver's airbag assembly (see DRIVER'S AIRBAG REPLACEMENT ).
  2. Disconnect the 5P connector (A), the 1P connector (B) and the 1P connector (C) from the radio remote switch (D).

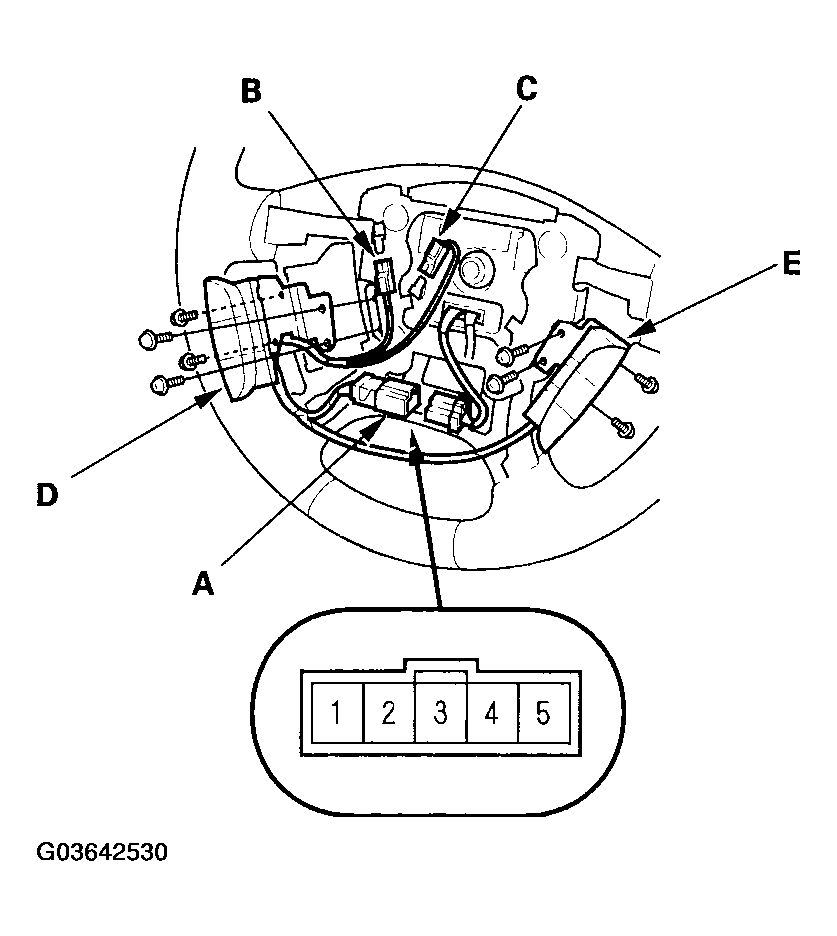

    Fig 1: Disconnecting Connectors From Radio Remote Switch
    G03642530Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Measure the resistance between the 5P connector No. 1 terminal and 1P connector (C) in each switch position according to Fig 2 .
    Fig 2: Measuring Resistance Between 5P Connector Terminal 1 And 1P Connector In Each Switch Position Chart
    G03642531Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. If the resistance is not as specified, go to step 5.
  5. Remove the four screws and the cruise control set/ resume/cancel switch (E) from the steering wheel.
  6. Remove the four screws and the radio remote switch.
