'05-06 Models

WARNING: This page is about a different car, the 2006 Acura MDX, 2005 Acura MDX, 2004 Acura MDX, and 2003 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the driver's airbag assembly (see DRIVER'S AIRBAG REPLACEMENT ).
  2. Disconnect the 16P connector (A) from the cable reel.

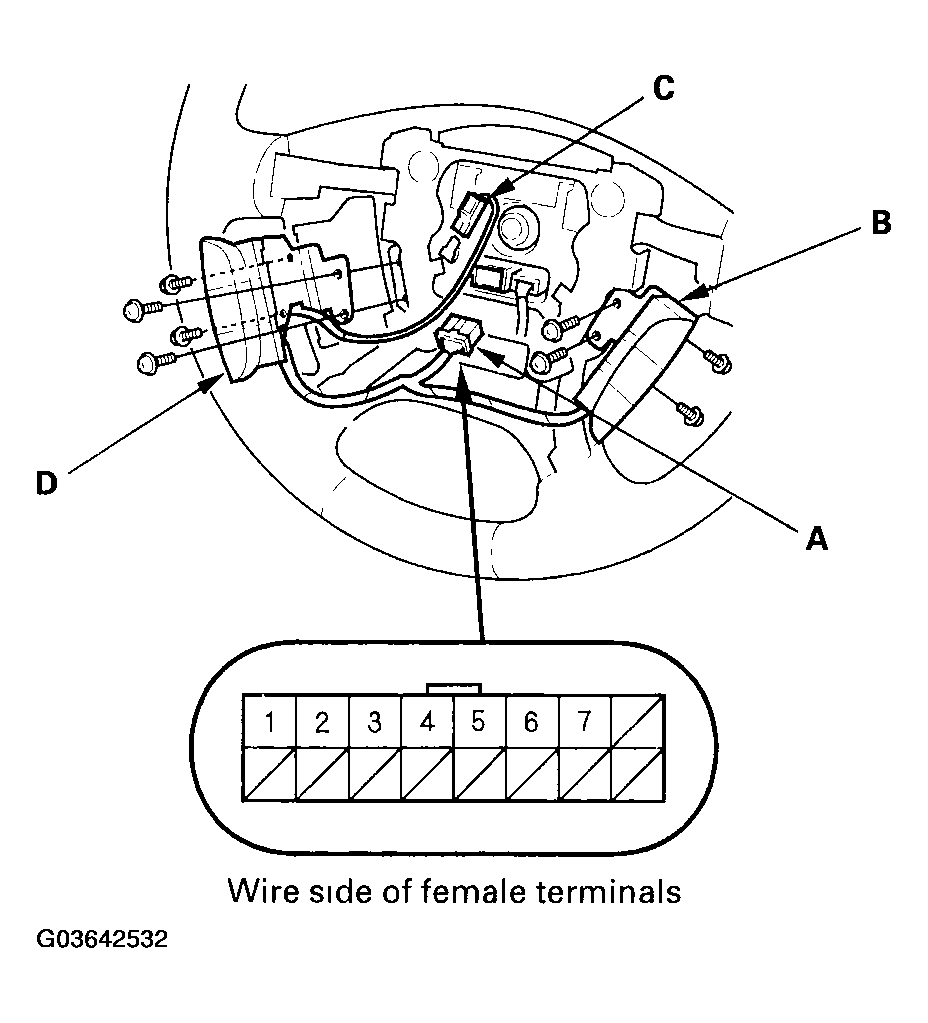

    Fig 1: Disconnecting 16P Connector From Cable Reel
    G03642532Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Measure the resistance between the 16P connector No. 5 and No. 7 terminals in each switch position according to Fig 2 .
    Fig 2: Measuring Resistance Between 16P Connector Terminals 5 And 7 In Each Switch Position Chart
    G03642533Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. If the resistance is not as specified, go to step 5.
  5. Remove the two screws and the cruise control set/ resume/switch (B) from the steering wheel.
  6. Remove the four screws, the 1P connector (C) and the radio remote switch (D), HFL-voice control switch and cruise set/resume/cancel switch as an assembly.
