Rear Fuse/Relay Box Connector End View

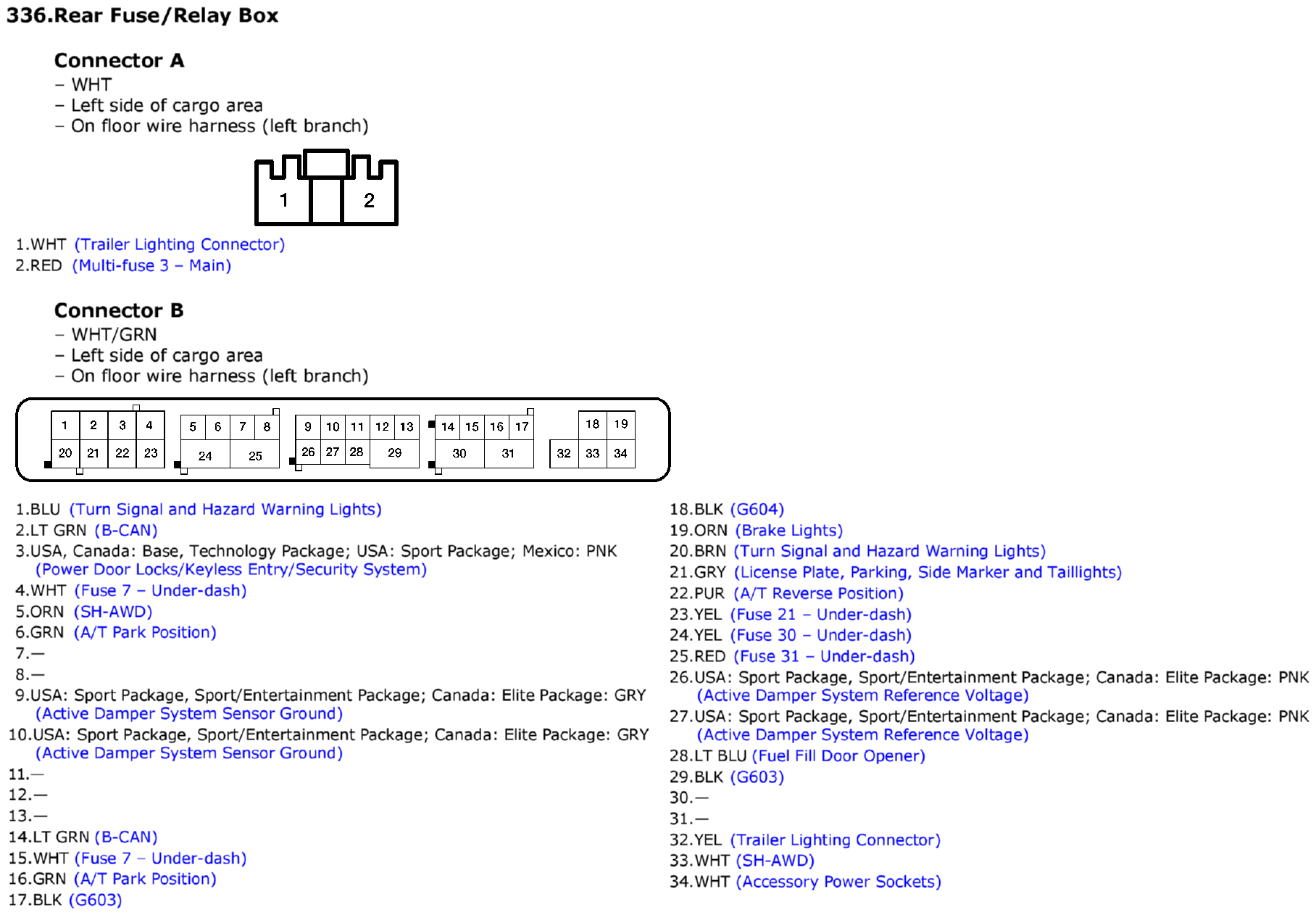

Fig 1: Rear Fuse/Relay Box Connector End View (1 of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

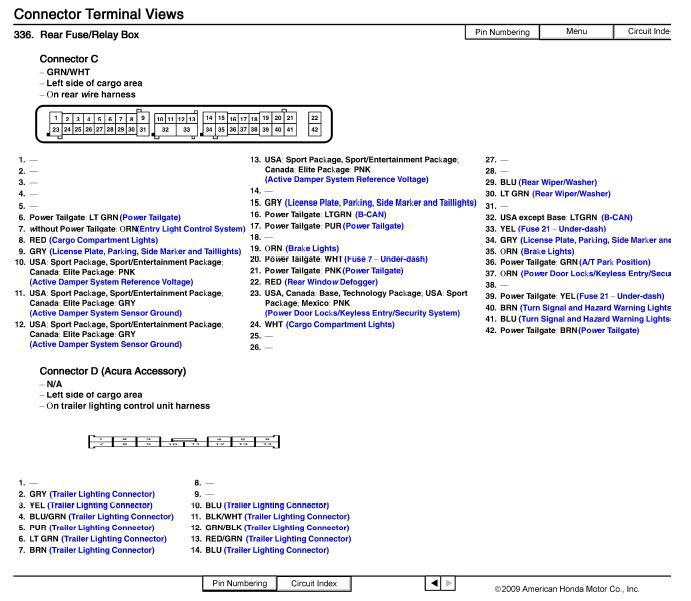

Fig 2: Rear Fuse/Relay Box Connector End View (2 of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
