Side View

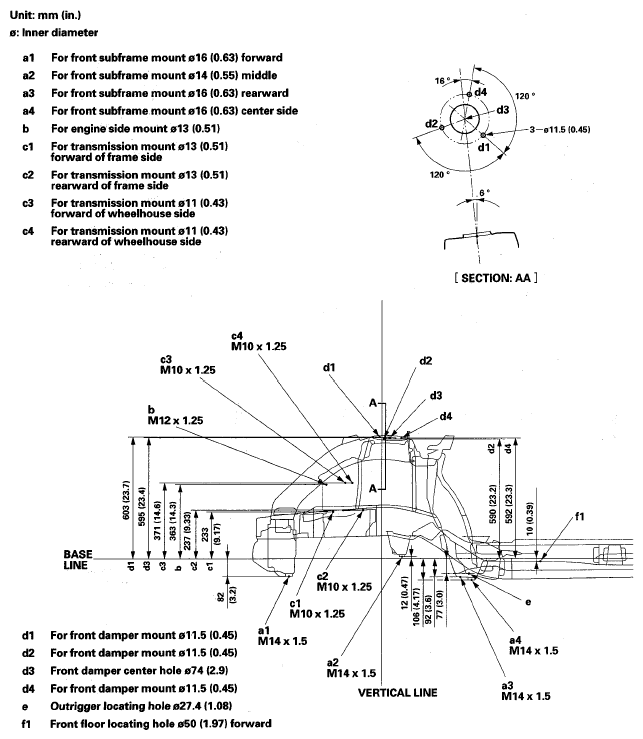

Fig 1: Frame Repair Chart (Side View)
G05446148Courtesy of AMERICAN HONDA MOTOR CO., INC.

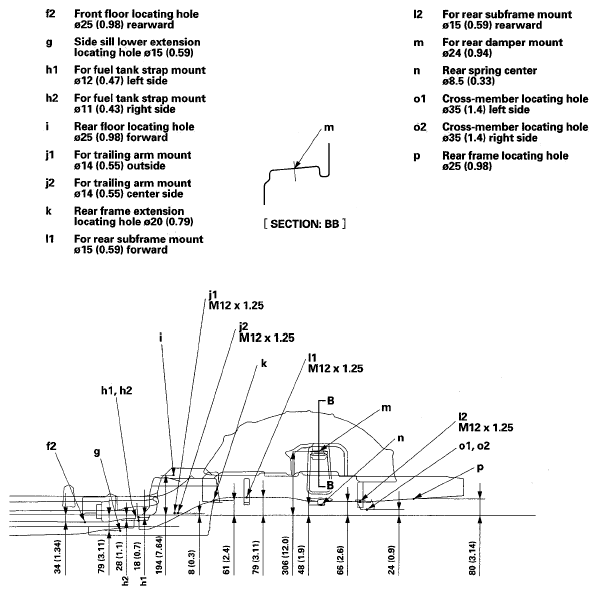

Fig 2: Frame Repair Chart (Side View)
G05446149Courtesy of AMERICAN HONDA MOTOR CO., INC.
