Passenger's Power Window Motor Test

Remove the passenger's power window switch (see FRONT PASSENGER'S ), and disconnect the connectors.
Test the motor in each direction by connecting battery power and ground to the passenger's power window switch 14P connector according to the table.

Fig 1: Identifying Passenger's Power Window Switch And Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the motor does not run or fails to run smoothly, go to step 4.
Disconnect the 6P or 2P connector from the passenger's power window motor.
Check for continuity between the passenger's power window switch 14P connector No. 8 and No. 14 terminals and the passenger's power window motor 6P connector No. 1 and No. 4 terminals.
Front passenger's door

FRONT PASSENGER'S

POWER WINDOW SWITCH

14P CONNECTOR

No. 8 terminal

No. 14 terminal

FRONT PASSENGER'S

POWER WINDOW

MOTOR 4P CONNECTOR

No. 4 terminal

No. 1 terminal

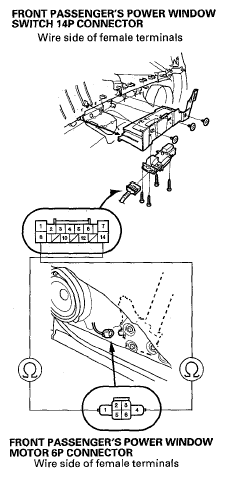

Fig 2: Checking Continuity Between Passenger's Power Window Switch 14P Connector No. 8 And 14 Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Rear door

REAR POWER WINDOW

SWITCH 14P CONNECTOR

No. 8 terminal

No. 14 terminal

REAR POWER WINDOW

MOTOR 2P CONNECTOR

No. 2 terminal

No. 1 terminal

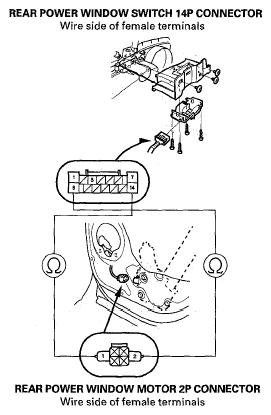

Fig 3: Checking Continuity Between Rear Power Window Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the wire harness is OK, replace the appropriate power window motor.
