CMP Sensor A Replacement

  1. Remove the air cleaner (see AIR CLEANER REMOVAL/INSTALLATION ).
  2. Remove the air bypass outlet pipe (see CHARGE AIR COOLER REMOVAL AND INSTALLATION ).
  3. Disconnect the CMP sensor A 3P connector (A).

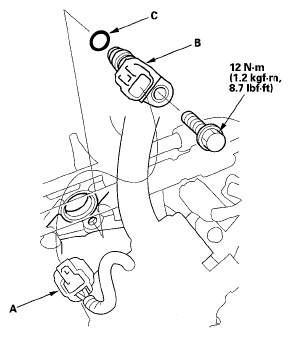

    Fig 1: CMP Sensor With Torque Specifications
    G05447050Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove CMP sensor A (B) from the intake camshaft side of the cylinder head.
  5. Install the parts in the reverse order of removal with a new O-ring (C).
