Component Location Index

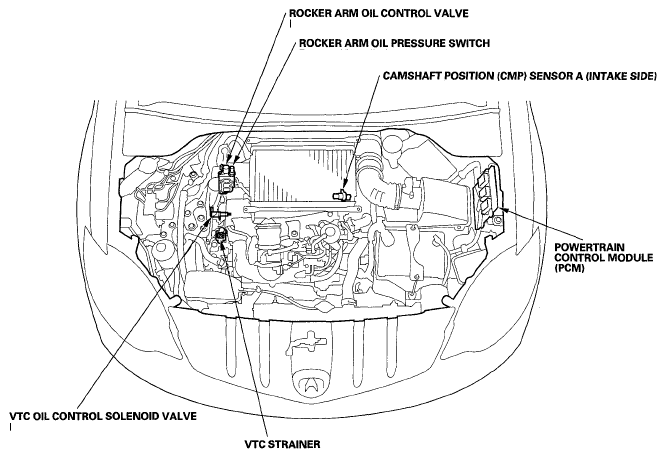

Fig 1: Identifying VTEC/VTC Components Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
