Driver/Vehicle Information Display

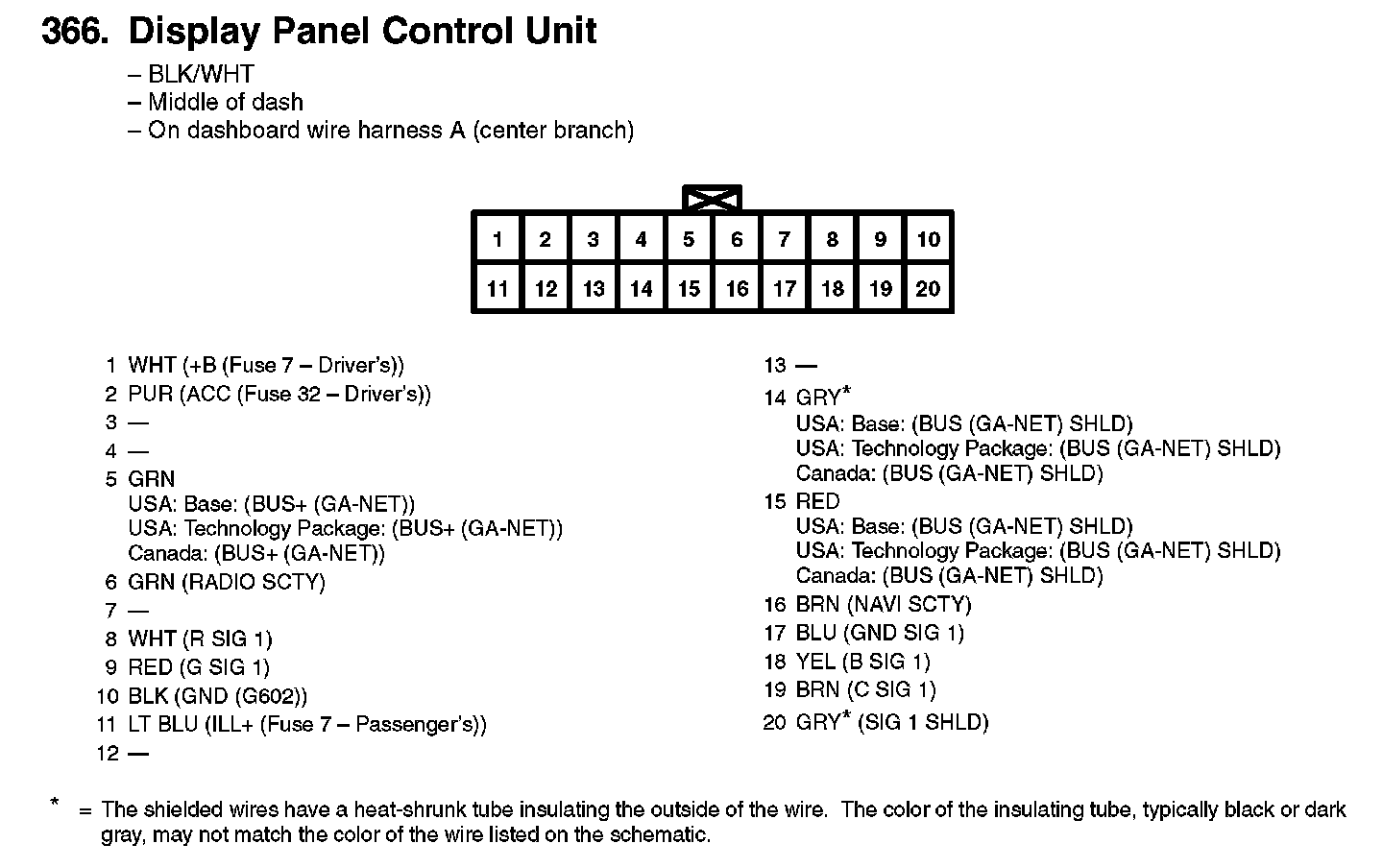

366. Display Panel Control Unit:



254. Select/Reset/Information Switch:
