Impact Sensor

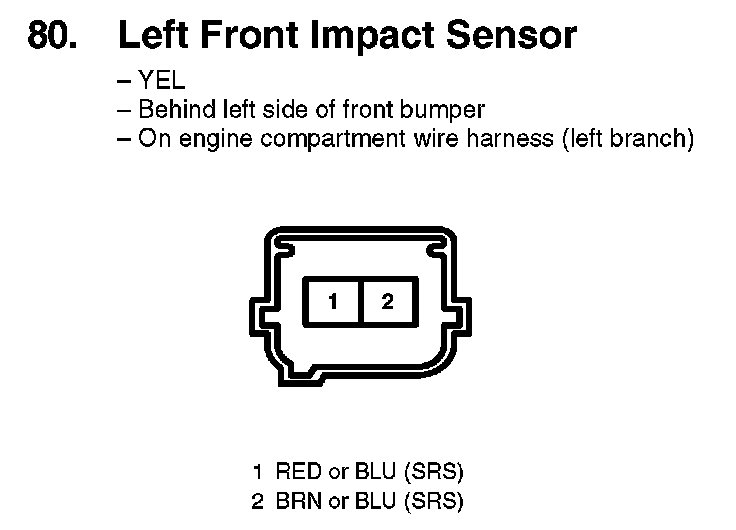

80. Left Front Impact Sensor:

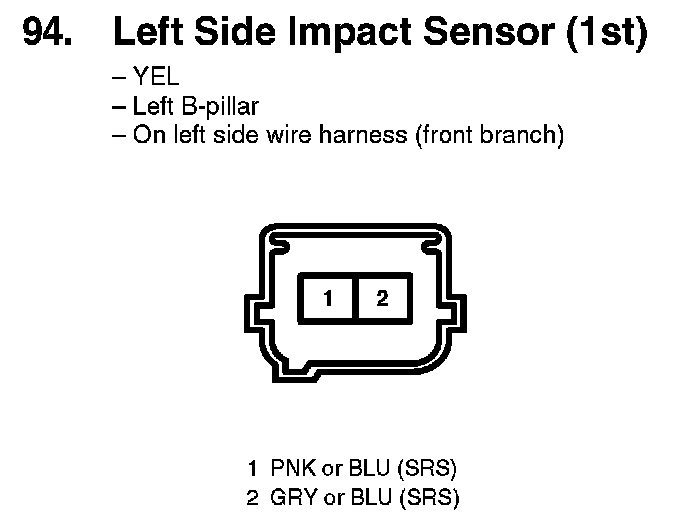

94. Left Side Impact Sensor (1st):

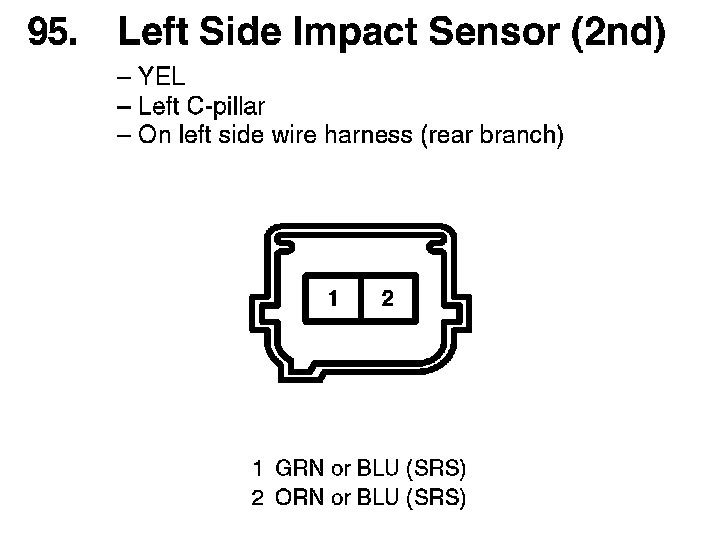

95. Left Side Impact Sensor (2nd):

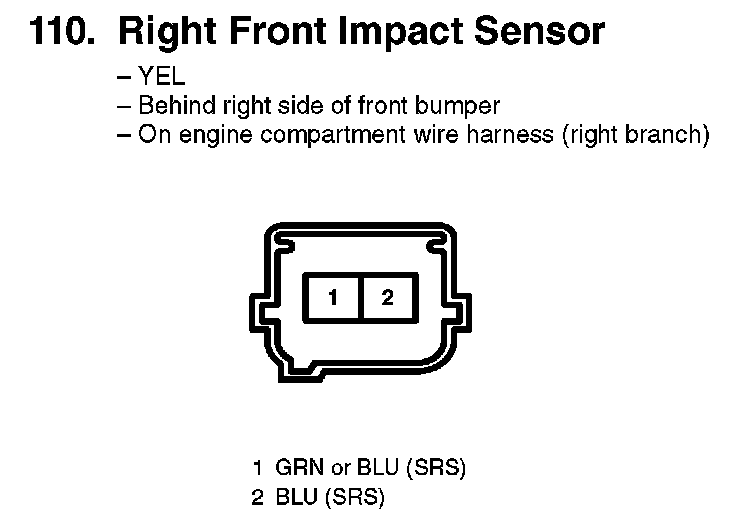

110. Right Front Impact Sensor:



124. Right Side Impact Sensor (1st):

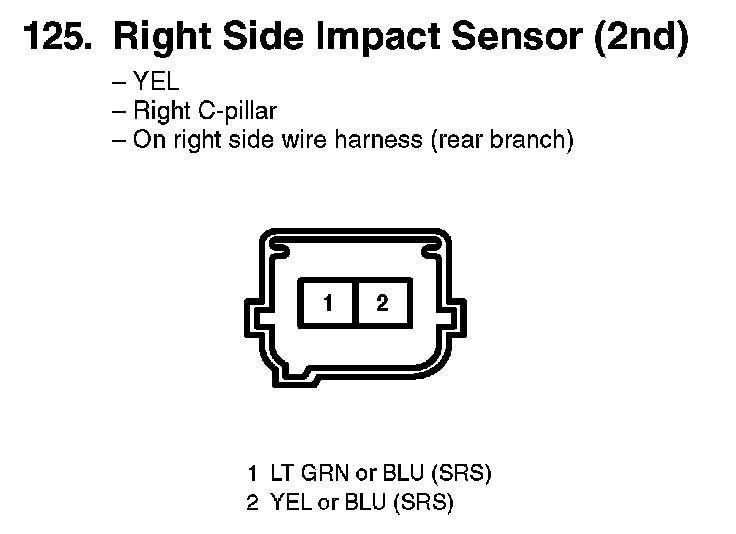

125. Right Side Impact Sensor (2nd):
