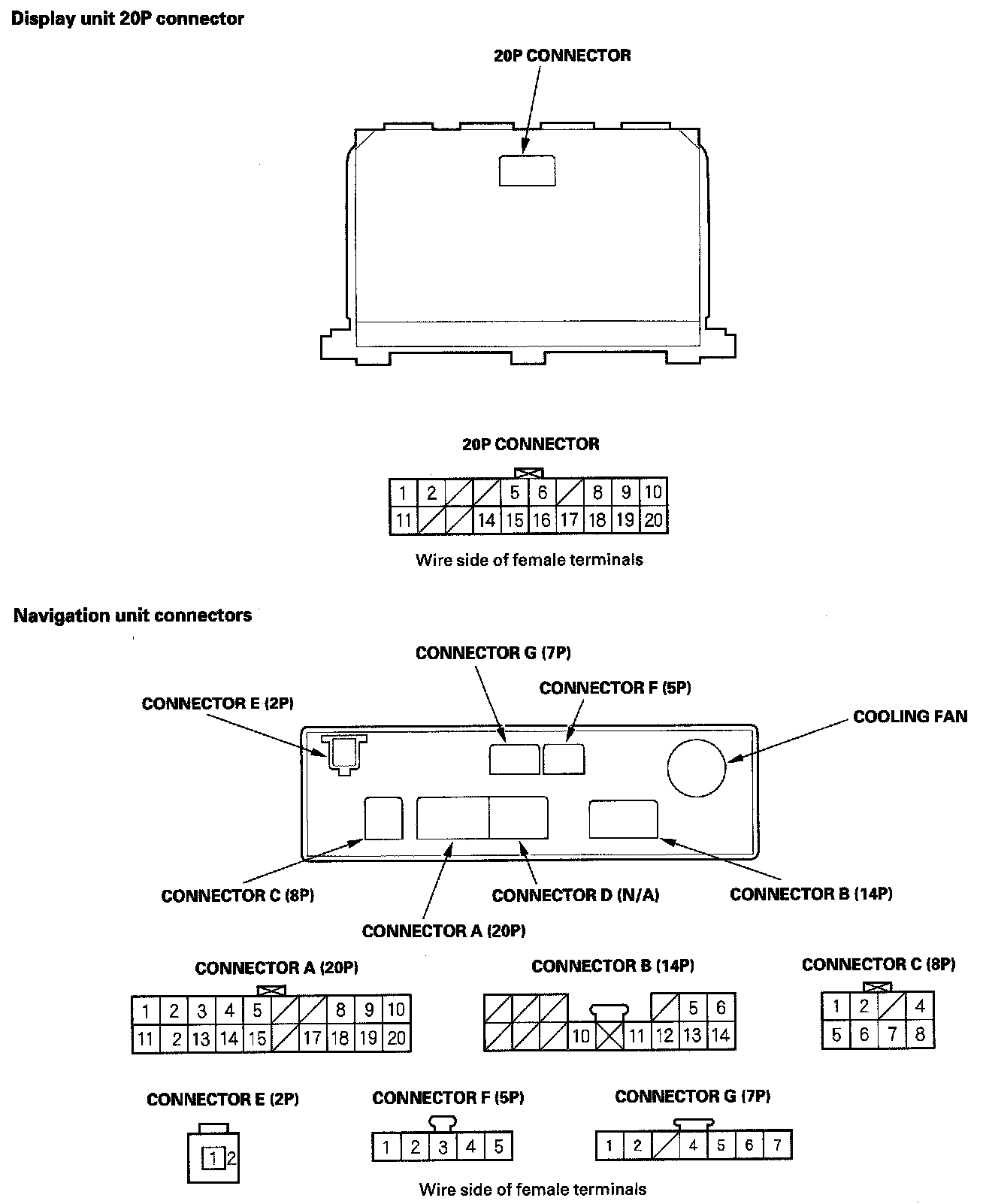

System Diagram

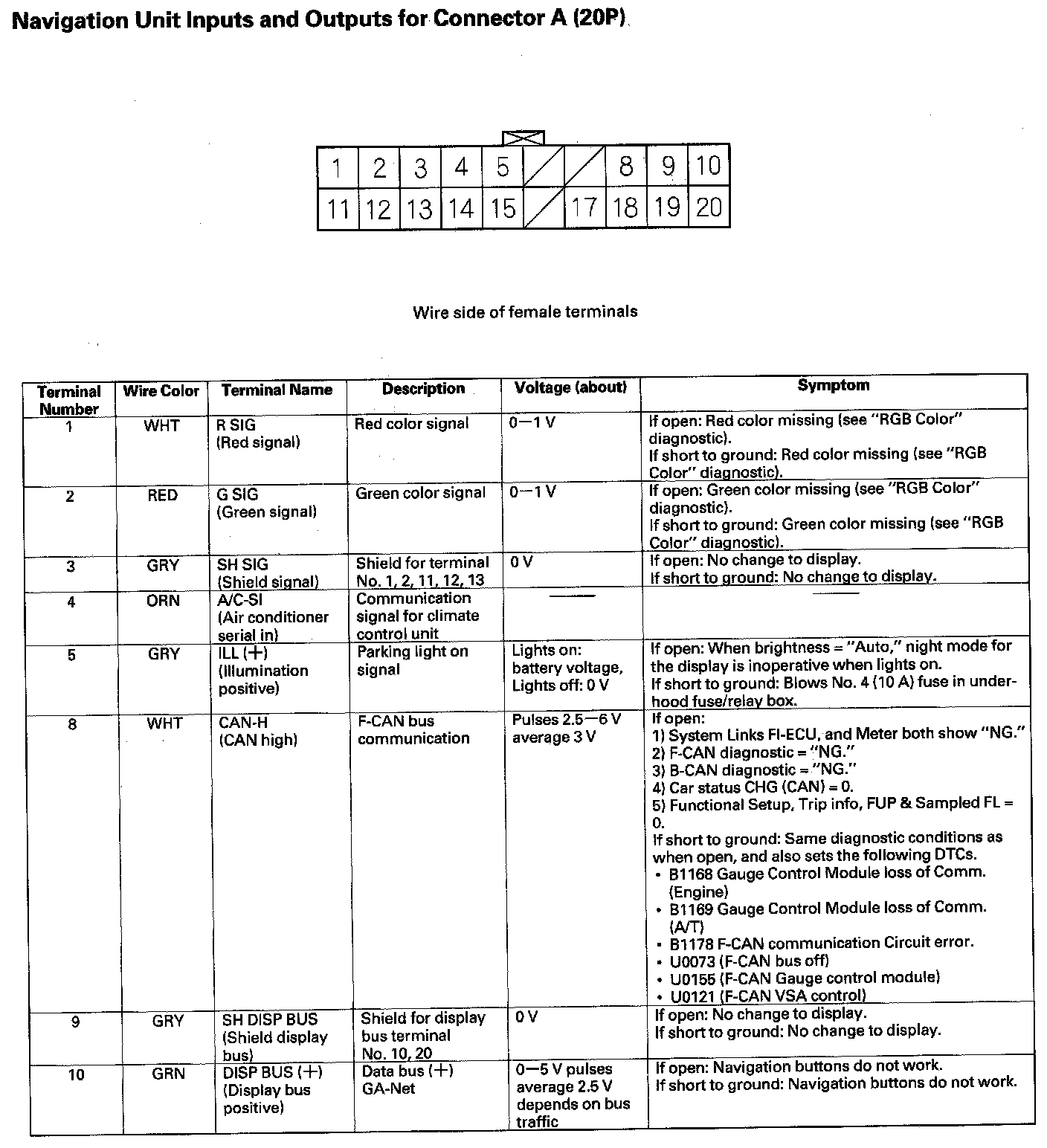

Navigation Unit Inputs And Outputs For Connector A (20P) Part 1:

Navigation Unit Inputs And Outputs For Connector A (20P) Part 2:

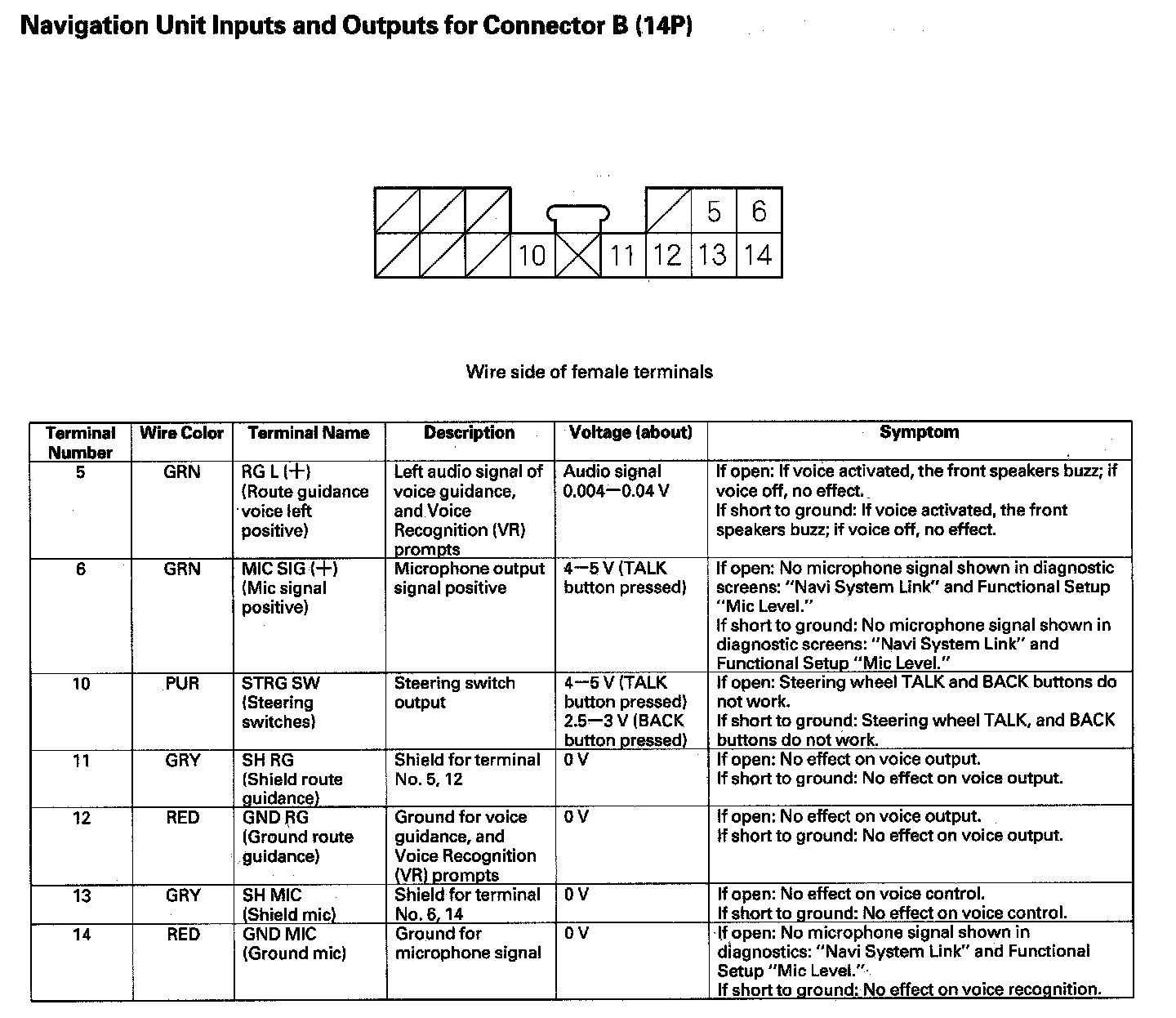

Navigation Unit Inputs And Outputs For Connector B (14P):

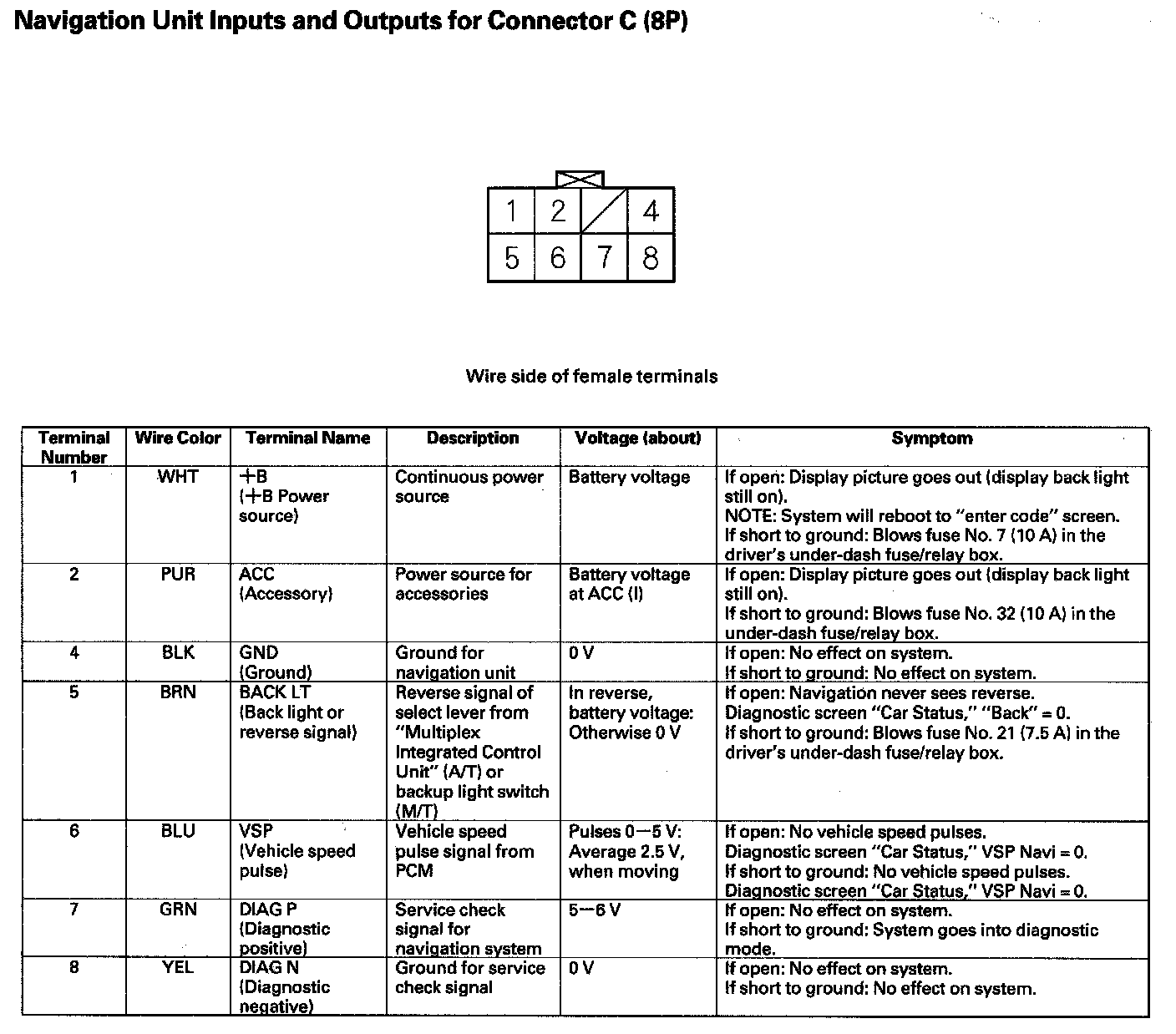

Navigation Unit Inputs And Outputs For Connector C (8P):

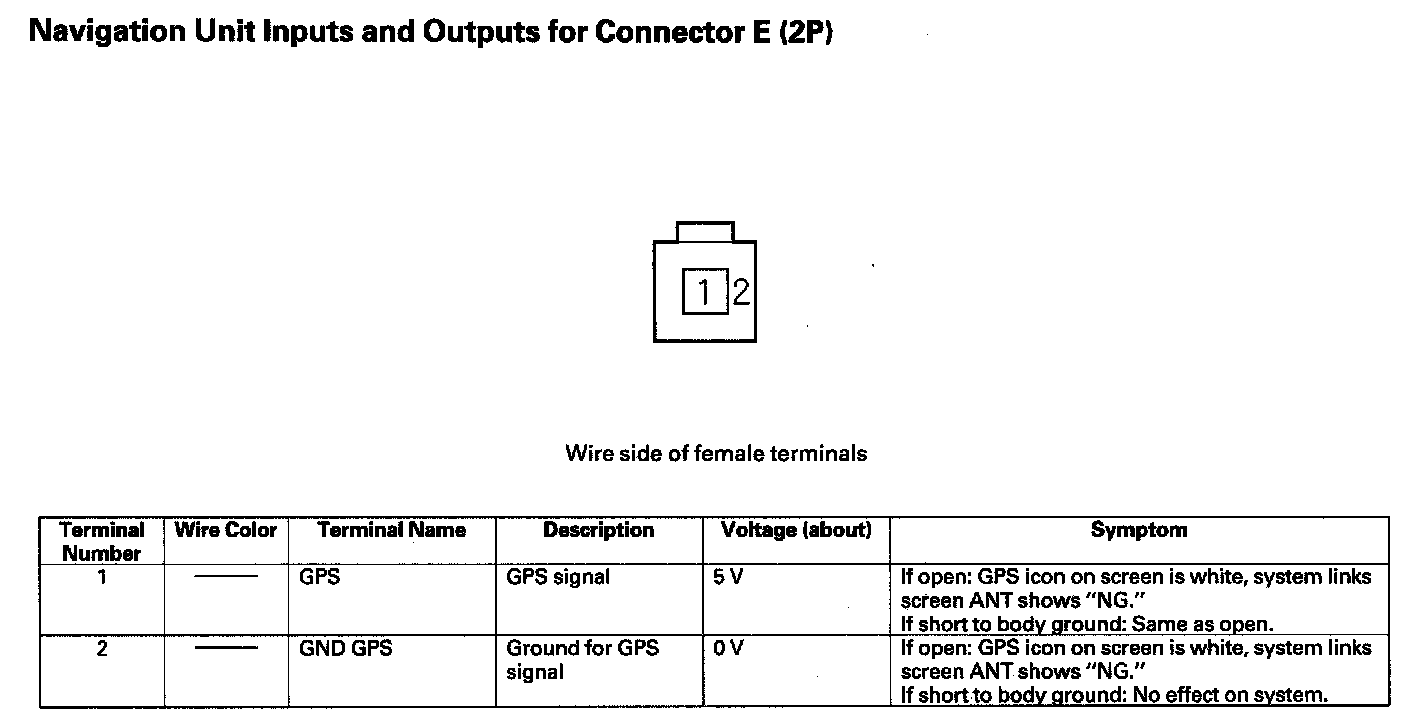

Navigation Unit Inputs And Outputs For Connector E (2P):

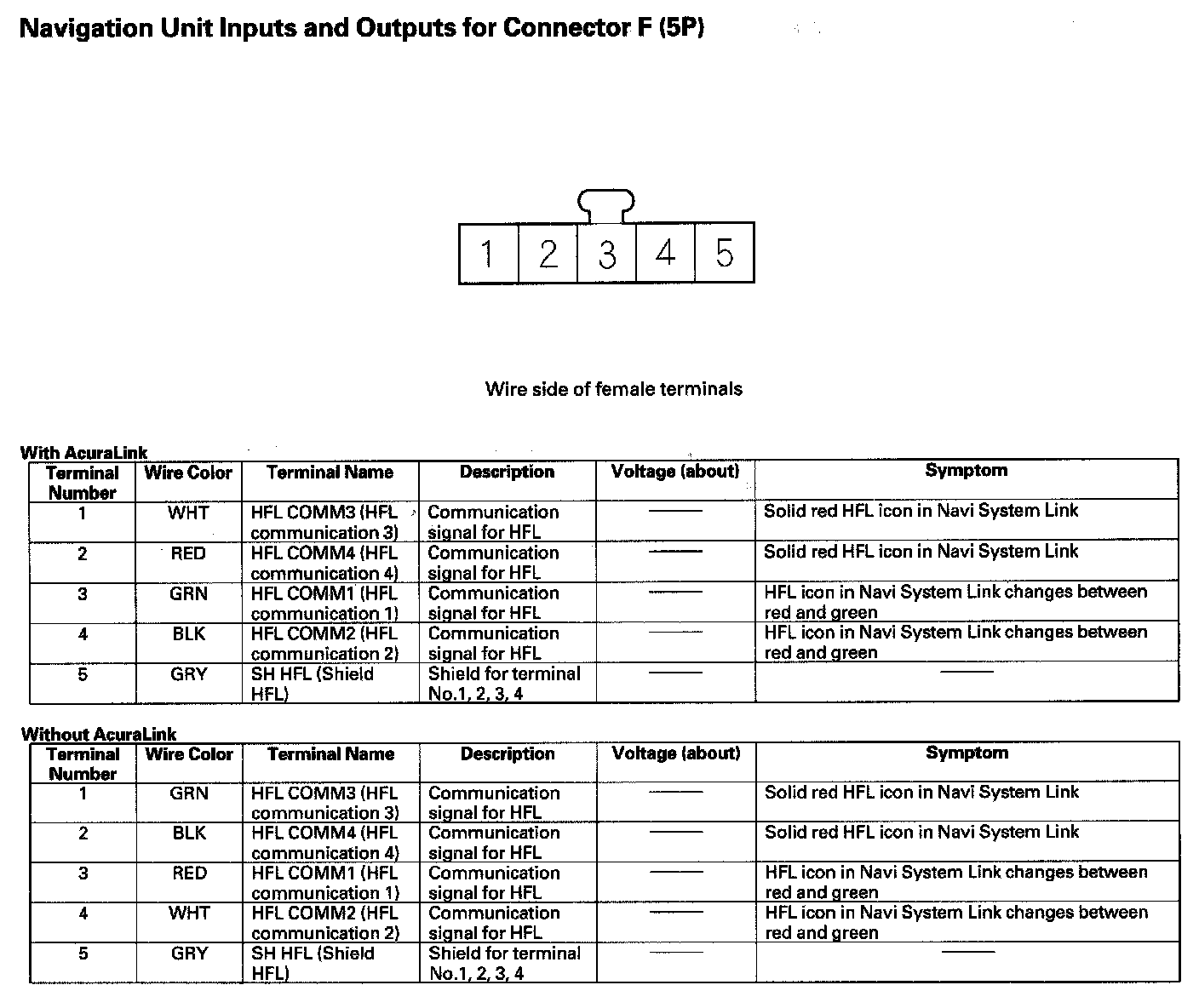

Navigation Unit Inputs And Outputs For Connector F (5P):

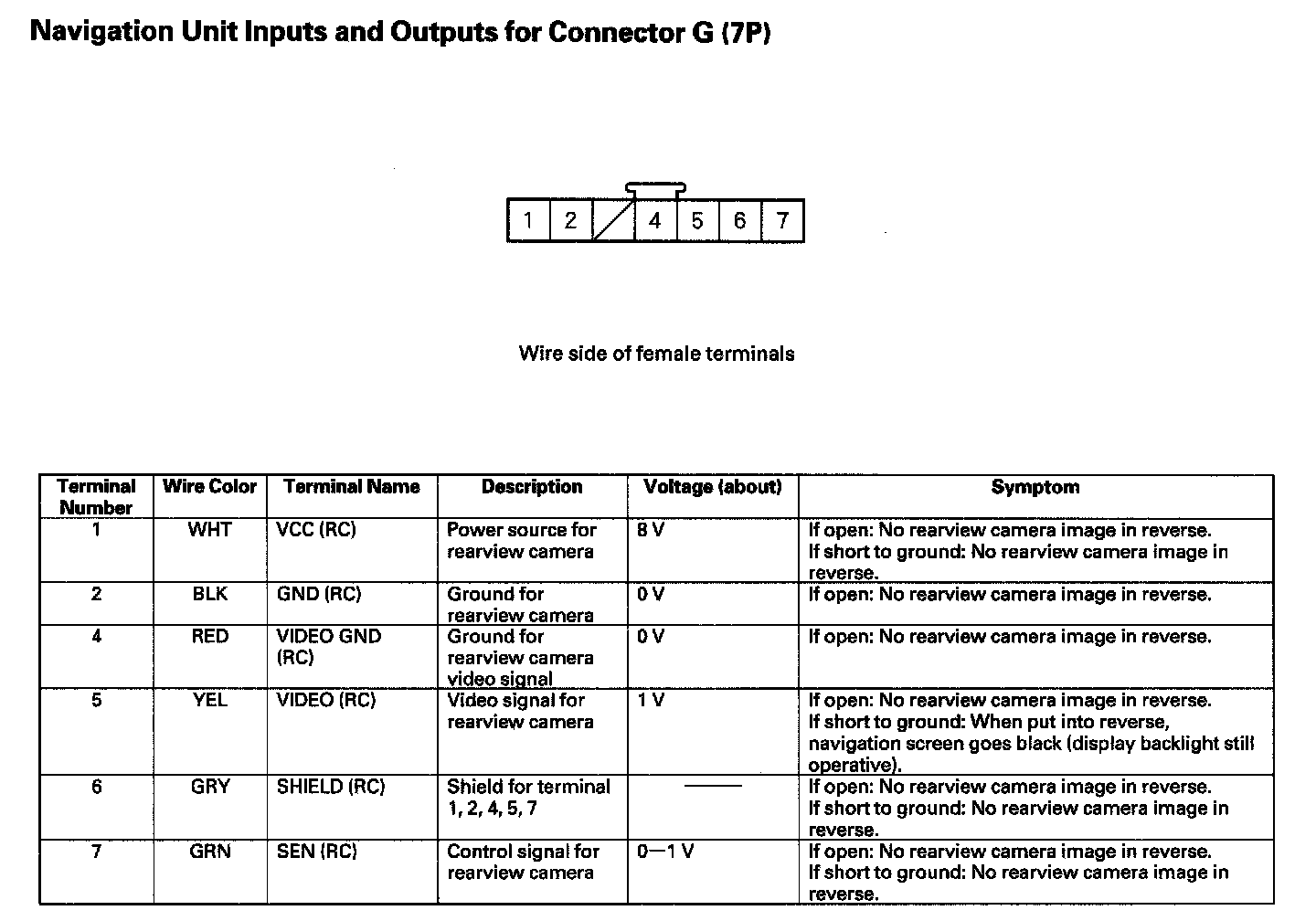

Navigation Unit Inputs And Outputs For Connector G (7P):

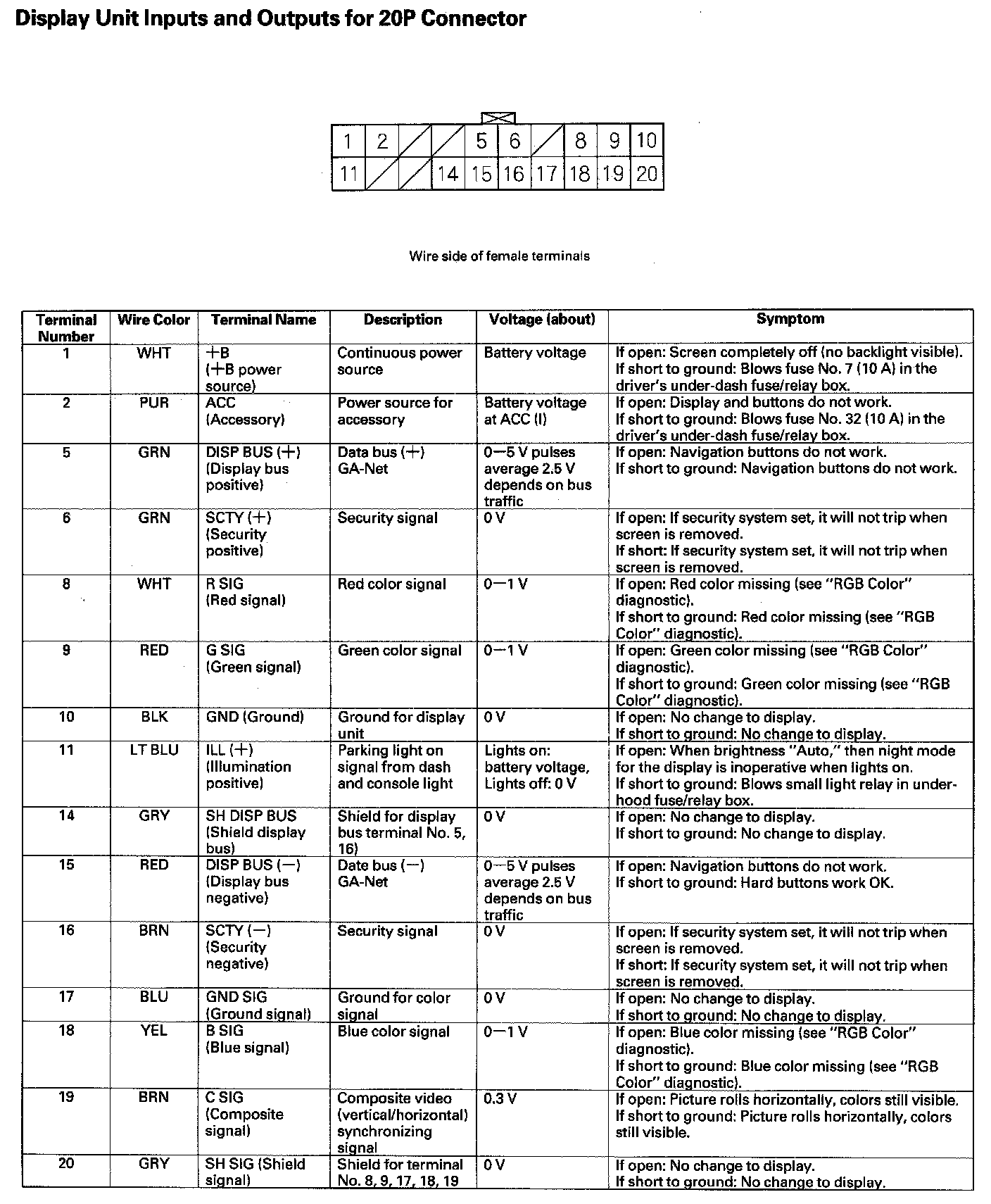

Display Unit Inputs And Outputs For 20P Connector Part 1:

Display Unit Inputs And Outputs For 20P Connector Part 2:

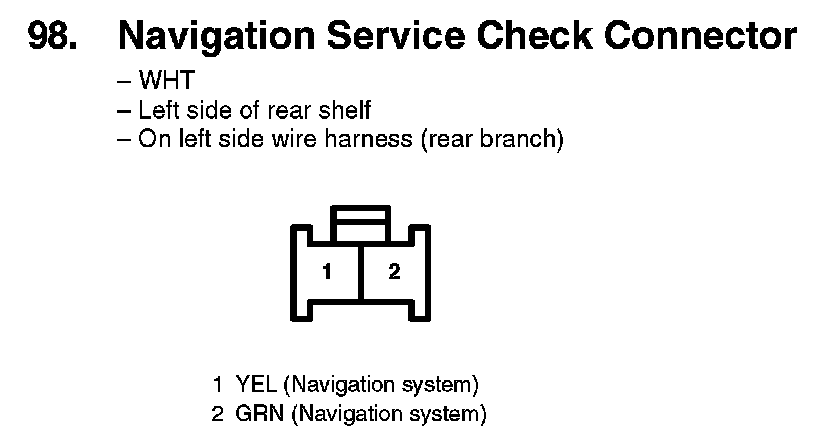

98. Navigation Service Check Connector:
