Shift Interlock Switch

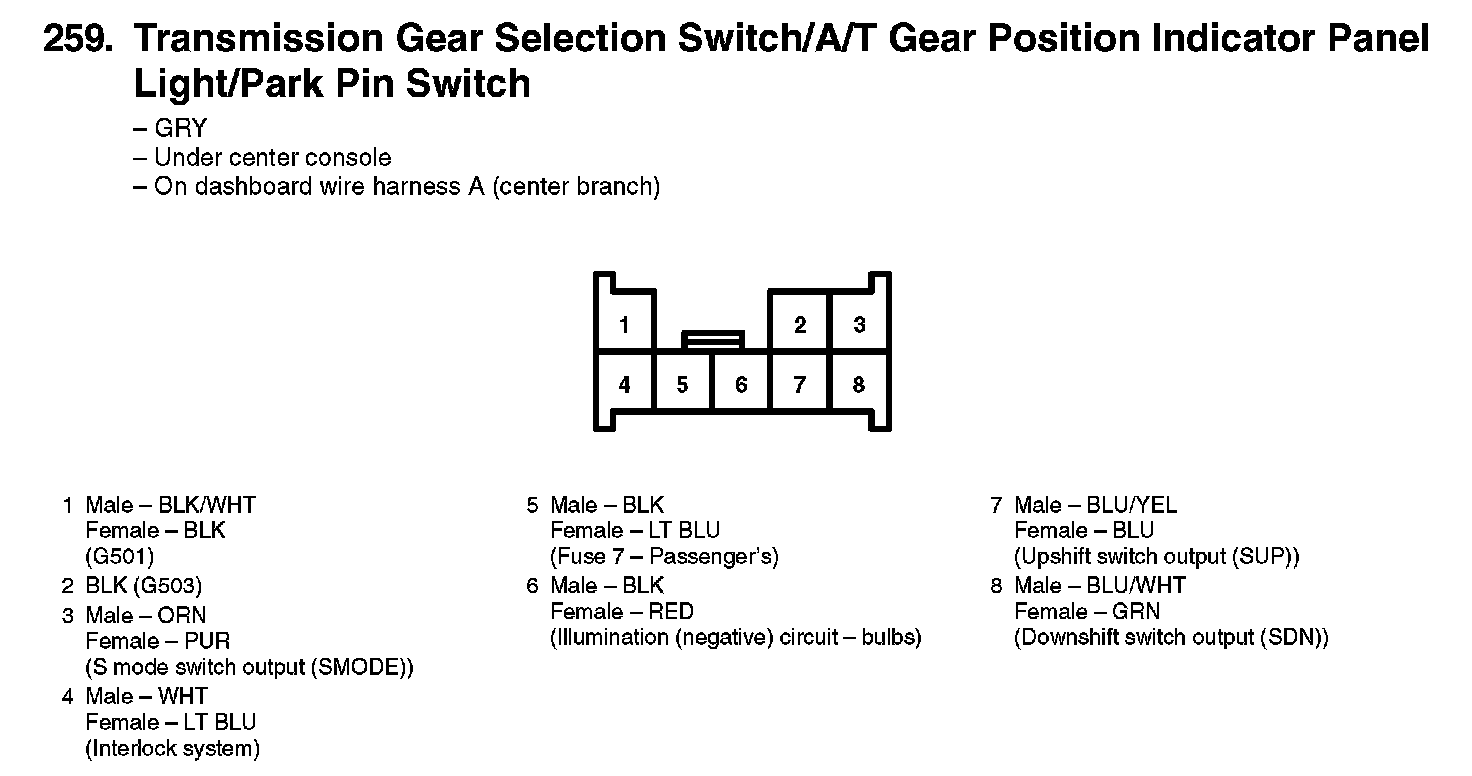

259. Transmission Gear Selection Switch/A/T Gear Position Indicator Panel Light/Park Pin Switch:

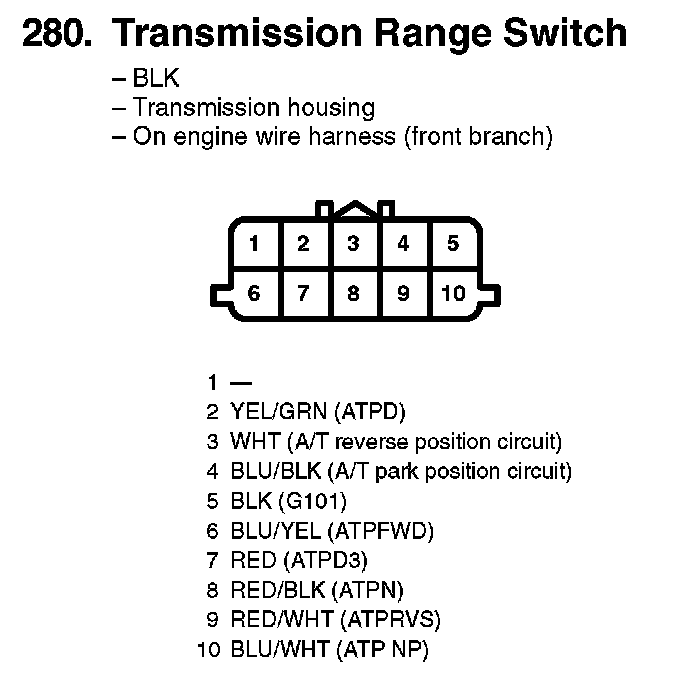

280. Transmission Range Switch:
