Radiator Cooling Fan Control Module: Service and Repair

RFC Unit Replacement

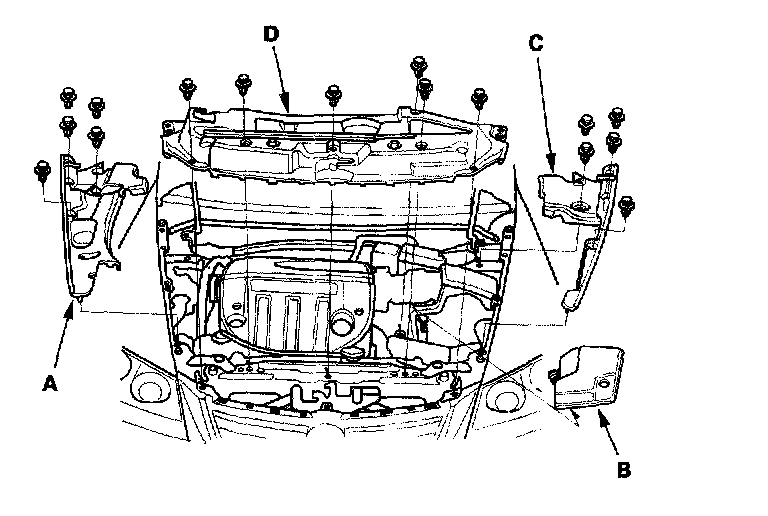

1. Remove the right upper fender trim (A), battery trim (B), left upper fender trim (C), then remove the upper grille cover (D).

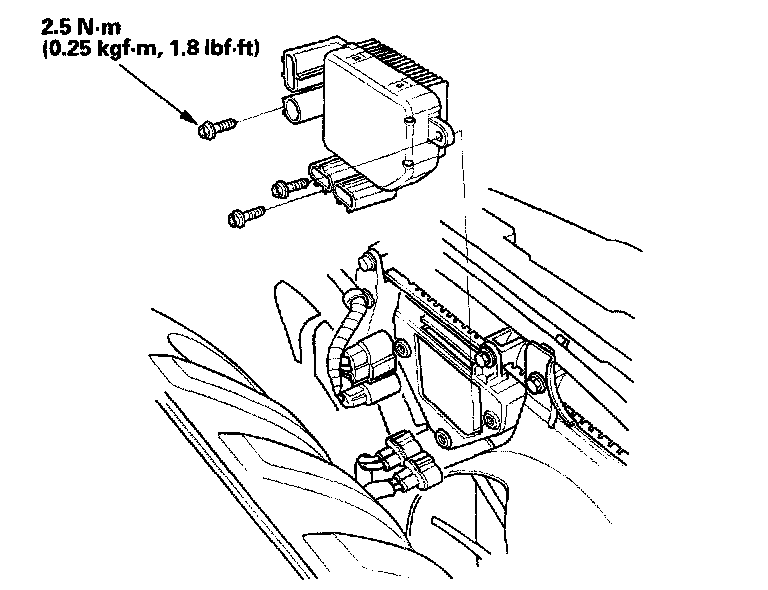

2. Disconnect the connectors from the radiator fan control (RFC) unit, then remove the RFC unit.
3. Install the RFC unit in the reverse order of removal.
