Adaptive Front Lighting Control Unit Connector End View

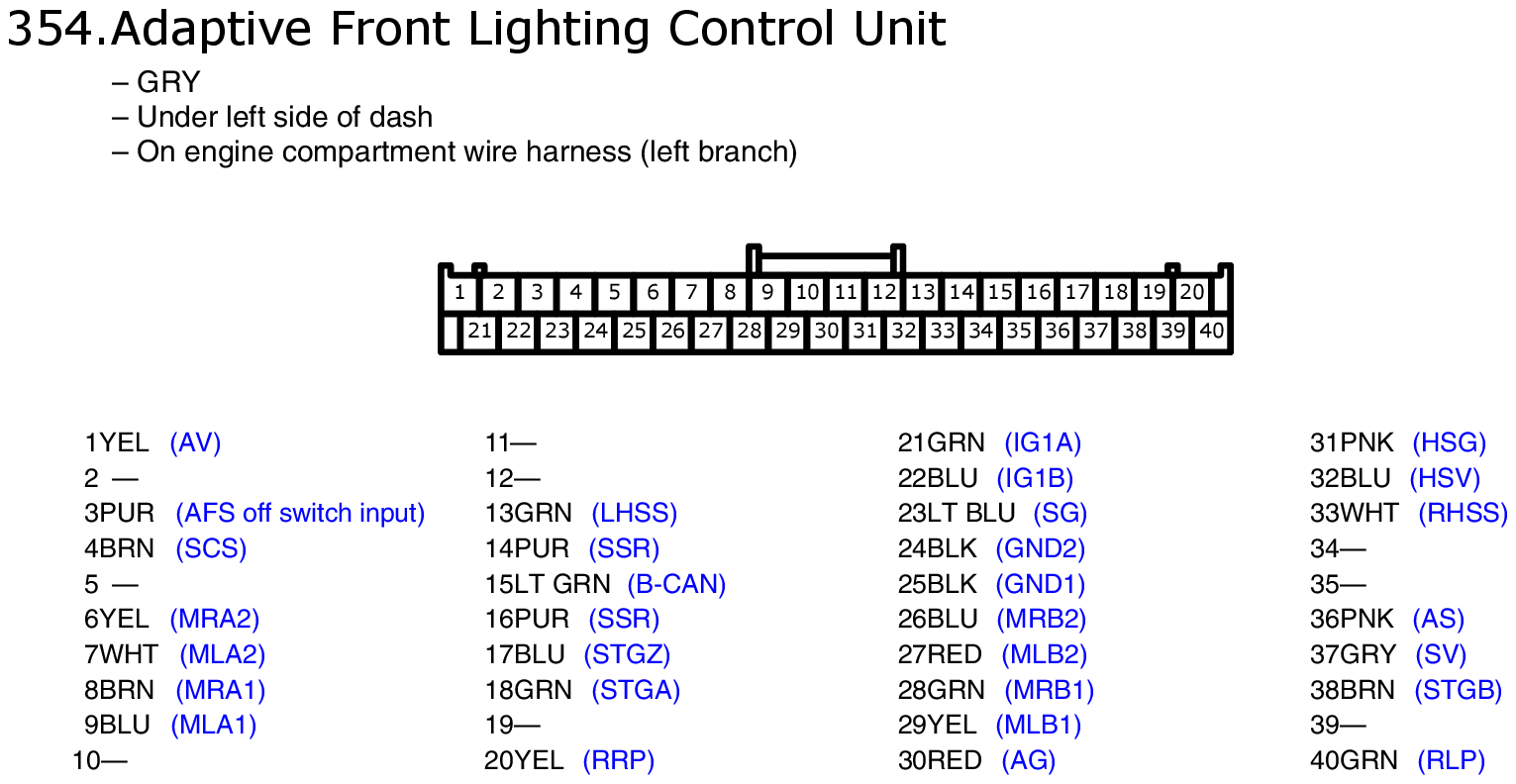

Fig 1: Adaptive Front Lighting Control Unit Connector End View
GHHW9347Courtesy of AMERICAN HONDA MOTOR CO., INC.
