Steering Angle Sensor (USA: Technology Package, CMBS/PAX Package; Canada: Elite Package) Connector End View

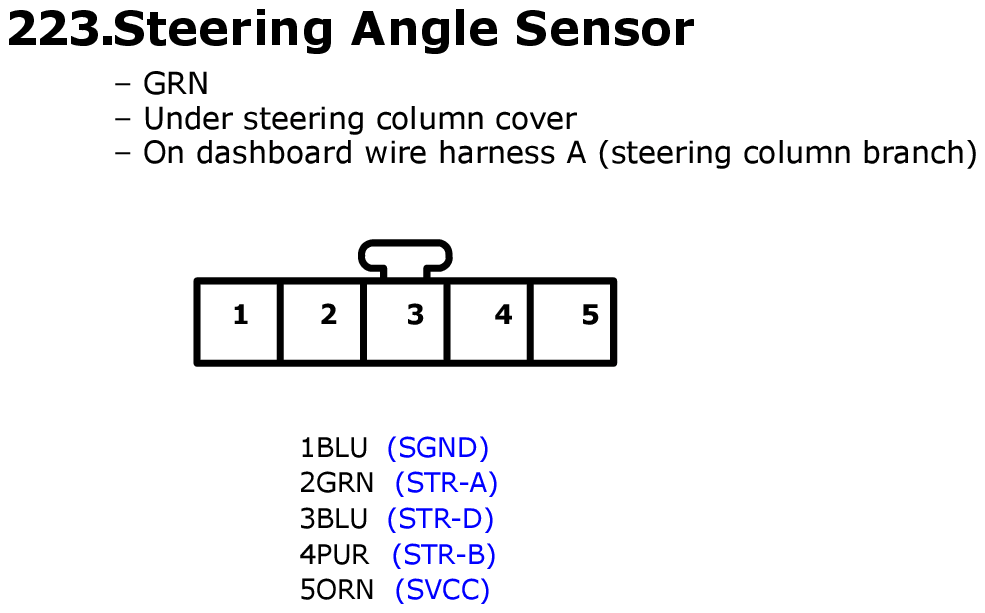

Fig 1: Steering Angle Sensor (USA: Technology Package, CMBS/PAX Package; Canada: Elite Package) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
