Pressure reducing mode

VSA NO valve open, VSA NC valve closed, inlet valve closed, front outlet valve open, pump motor ON.

Caliper fluid flows through the outlet valve to the reservoir.

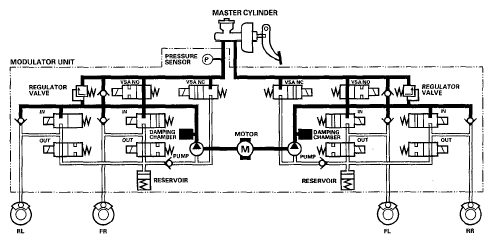

Fig 1: VSA System Diagram (Pressure Reducing Mode)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
