VSA Modulator-Control Unit Removal and Installation: Removal

Make sure the ignition switch is OFF.
Remove the right upper fender trim (see UPPER FENDER TRIM REPLACEMENT ).
Remove the A/C line mounting bolt (A).

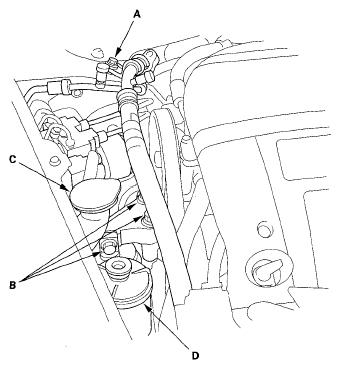

Fig 1: Identifying A/C Line Mounting Bolt
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the engine mount bracket mounting bolts (B).
Remove the upper portion of the washer reservoir (C).
Remove the power steering fluid reservoir (D) bracket.
Pull down the lock (A) of the VSA modulator-control unit 47P connector (B), and the connector disconnects itself.

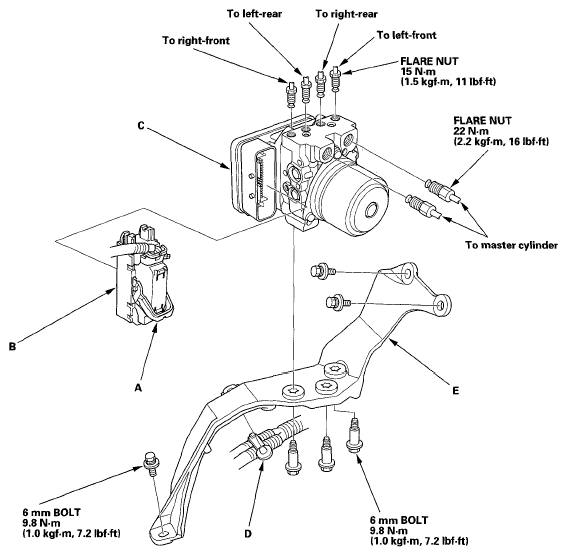

Fig 2: 47P connector, VSA Modulator-Control Unit And Bracket With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the six brake lines from the VSA modulator-control unit (C).
Disconnect the harness clip (D).
Remove the three 6 mm bolts, then remove the VSA modulator-control unit with bracket (E) from the body.
Remove the three 6 mm bolts, then remove the VSA modulator-control unit from the bracket.
