Connected ECUs
WARNING: This page is about a different car, the 2008 Acura TL and 2007 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

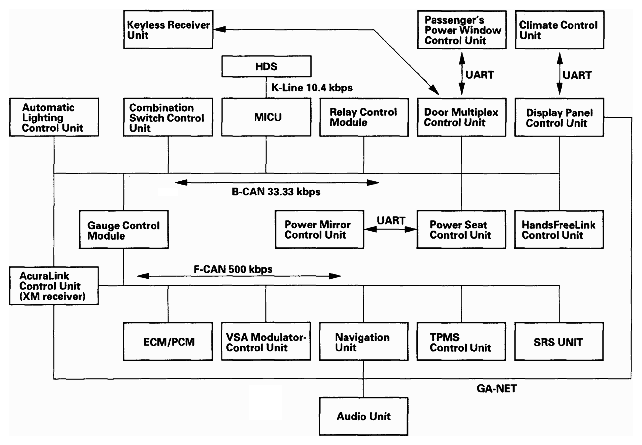

Several ECUs are connected to each of the two networks. The gauge control module is part of both networks since it is the "gateway" between them. Here is a list of ECUs and the network they are connected to.
B-CAN ECUs
- Gauge control module
- Relay control module
- Multiplex integrated control unit (MICU)
- Door multiplex control unit
- Combination switch control unit
- Display panel control unit
- HandsFreeLink control unit
- Power seat control unit
- Automatic lighting control unit
- AcuraLink control unit (XM receiver)
F-CAN ECUs
- Gauge control module
- ECM/PCM
- Navigation unit
- VSA modulator-control unit
- TPMS control unit
- AcuraLink control unit (XM receiver)
- SRS unit
