Voice Control Switch Test

WARNING: This page is about a different car, the 2008 Acura TL and 2007 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

Remove the driver's airbag assembly (see DRIVER'S AIRBAG REPLACEMENT ).
Remove the 20P connector from the cable reel.

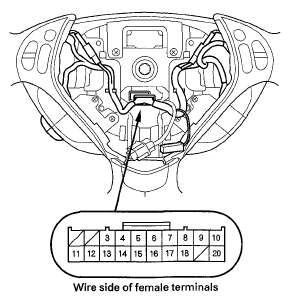

Fig 1: Identifying 20P Connector From Cable Reel
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Measure the resistance between the No. 10 and No. 18 terminals in each switch position according to the table.

RESISTANCE CHART

Position	Resistance
OFF	About 10 kΩ
Talk button pressed	About 2.2 kΩ
Back button pressed	About 650 kΩ

If the resistance is not as specified, replace the voice control switch (see STEERING WHEEL DISASSEMBLY/REASSEMBLY ).
