Without Navigation

WARNING: This page is about a different car, the 2008 Acura TL and 2007 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

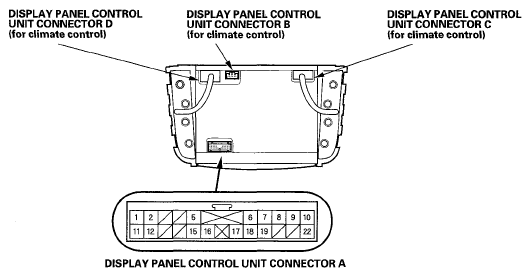

Fig 1: Identifying Display Panel Control Unit Inputs And Outputs - Without Navigation
G05463249Courtesy of AMERICAN HONDA MOTOR CO., INC.
NOTE: For the display panel control unit connectors C, and D, refer to the circuit diagram of climate control (see CIRCUIT DIAGRAM ), and for the display panel control unit connector B and E, refer to the system description of navigation system (see DIAGNOSTIC FUNCTION DIAGRAM ).
DISPLAY PANEL CONTROL UNIT CONNECTORS

Cavity Wire Connects to
A1(2) GRY Electrical compass unit
A2(2) LT GRN Electrical compass unit
A5 BLK Ground (G501)
A6 RED Dash lights brightness controller (LED)
A7 BLU Audio BUS+ (GA-NET)
A8 RED/BLK Light-on signal
A9 YEL/RED ACC (Main stereo power supply)
A10 WHT/RED Constant power
A11(2) PUR Electrical compass unit
A12(2) BRN Electrical compass unit
A15 RED/BLU Dash lights brightness controller (LED)
A16 ORN Audio unit (IMS 1)
A17 BLK Audio unit (IMS 0)
A18 GRY(1) Audio BUS SH (GA-NET)
A19 PNK Audio BUS - (GA-NET)
A22 LT BLU Multiplex integrated control unit (B-CAN)
(1) The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.
(2) Without navigation
