Immobilizer Control Unit-Receiver Replacement

WARNING: This page is about a different car, the 2008 Acura RL. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the driver's dashboard undercover (see DRIVER'S DASHBOARD UNDERCOVER REMOVAL/INSTALLATION ), and the driver's dashboard lower cover (see DRIVER'S DASHBOARD LOWER COVER REMOVAL/INSTALLATION ).
  2. Remove the steering column covers (see STEERING COLUMN REMOVAL AND INSTALLATION ).
  3. Remove the ignition switch knob (A).

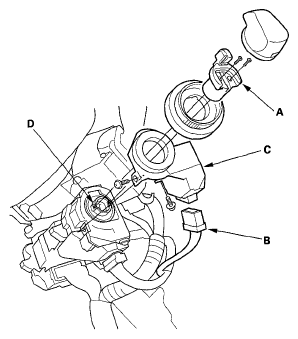

    Fig 1: Identifying Ignition Switch Knob, 7P Connector And Immobilizer Control Unit-Receiver
    G05497243Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Disconnect the 7P connector (B) from the immobilizer control unit-receiver (C).
  5. Remove the two screws and the immobilizer control unit-receiver from the ignition key cylinder (D).
  6. Install the immobilizer control unit-receiver in the reverse order of removal.
  7. After replacement, the immobilizer control unit-receiver must be registered in IMMOBILIZER with the HDS (all keys and the PCM code are required).
