Automatic Lighting Control Unit Connector End View

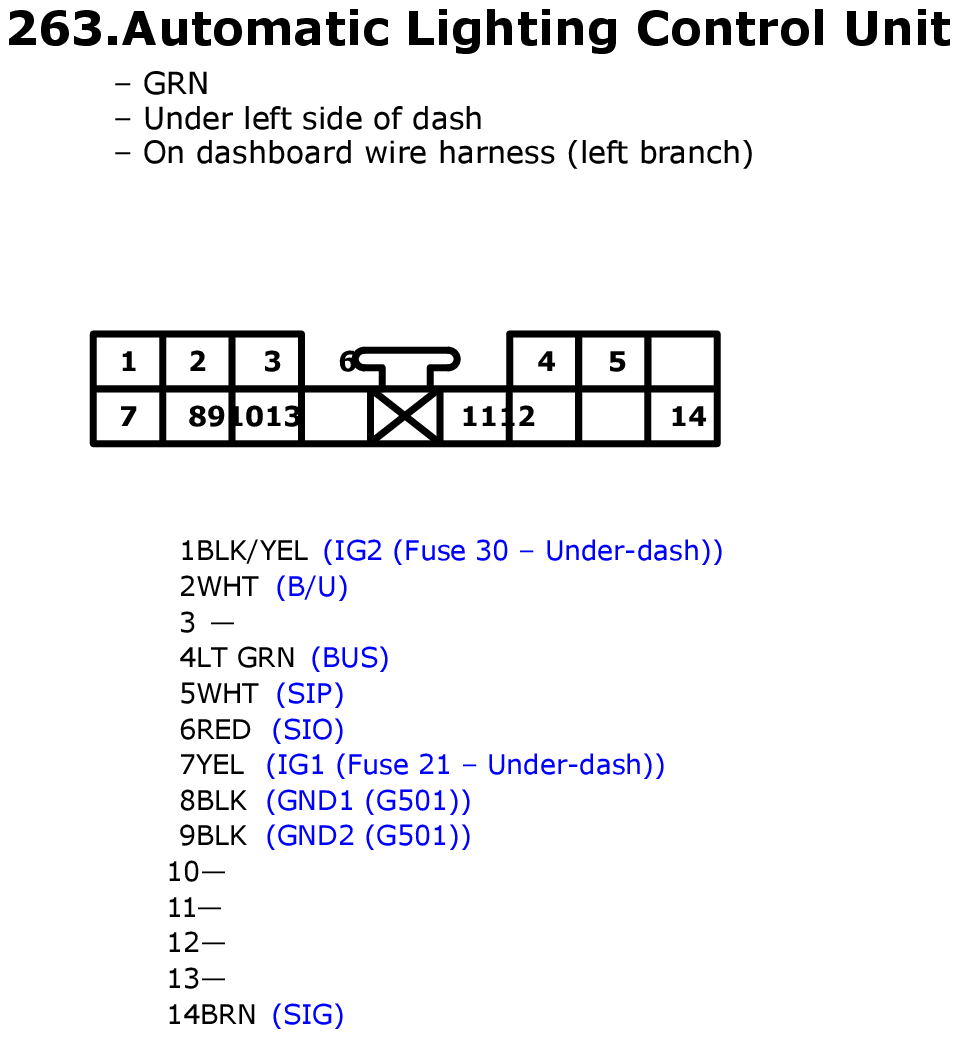

Fig 1: Automatic Lighting Control Unit Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
