AM/FM Antenna Amplifier-Rear Window Defogger Coil Replacement

Remove the left C-pillar trim (see C-PILLAR TRIM ).
Disconnect the 1P connector (A), 1P connector (B), and AM/FM antenna lead (C) from the AM/FM antenna amplifier-rear window defogger coil (D) and the three window connectors (E).

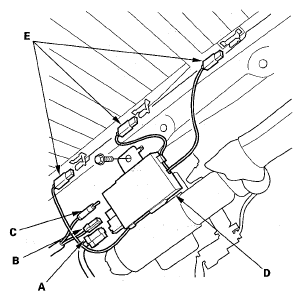

Fig 1: Identifying Window Connectors
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect all connectors, then remove the bolt and AM/FM antenna amplifier-rear window defogger coil.
Install the AM/FM antenna amplifier-rear window defogger coil in the reverse order of removal.
