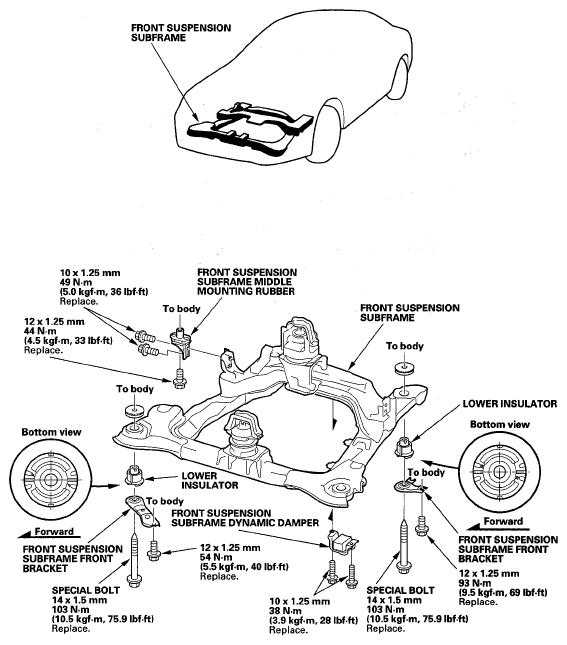

Front Subframe Torque
NOTE:
- After removing the subframe mounting bolts, be sure to replace them with new ones.
- When installing, align both installation reference holes in the subframe with both reference holes in the body using a screwdriver or tapered punch as a guide.
- After mounting the subframe and barckets loosely, align the reference marks with the edge of the rear brackets, then tighten each bolts.
