System Description
WARNING: This page is about a different variant/trim than selected.

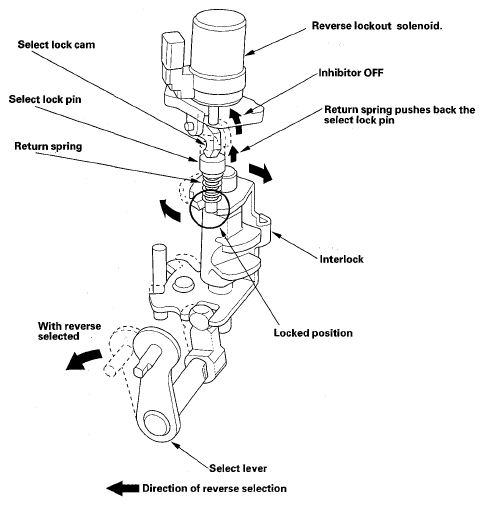

At a vehicle speed of 12 mph (20 km/h) or more, a signal from the ECM activates the reverse lockout solenoid, which pushes the select lock cam and select lock pin into the locked position. As a result, the interlock can not rotate to the reverse select position, making it impossible to engage reverse gear. At a vehicle speed of 9 mph (15 km/h) or less, the signal from the ECM is interrupted which turns off the reverse lockout solenoid. The return spring pulls back the select lock pin, enabling the interlock to move freely so reverse gear can be selected.
VEHICLE SPEED AND INHIBITOR POSITION REFERENCE
| Vehicle speed | Inhibitor | Reverse selection |
|---|---|---|
| Above 12 mph (20 km/h) | ON | Not allowed |
| Below 9 mph (15 km/h) | OFF | OK |
| IG-SW OFF | OFF | OK |
