AM/FM Antenna Amplifier-Rear Window Defogger Coil Connector End View

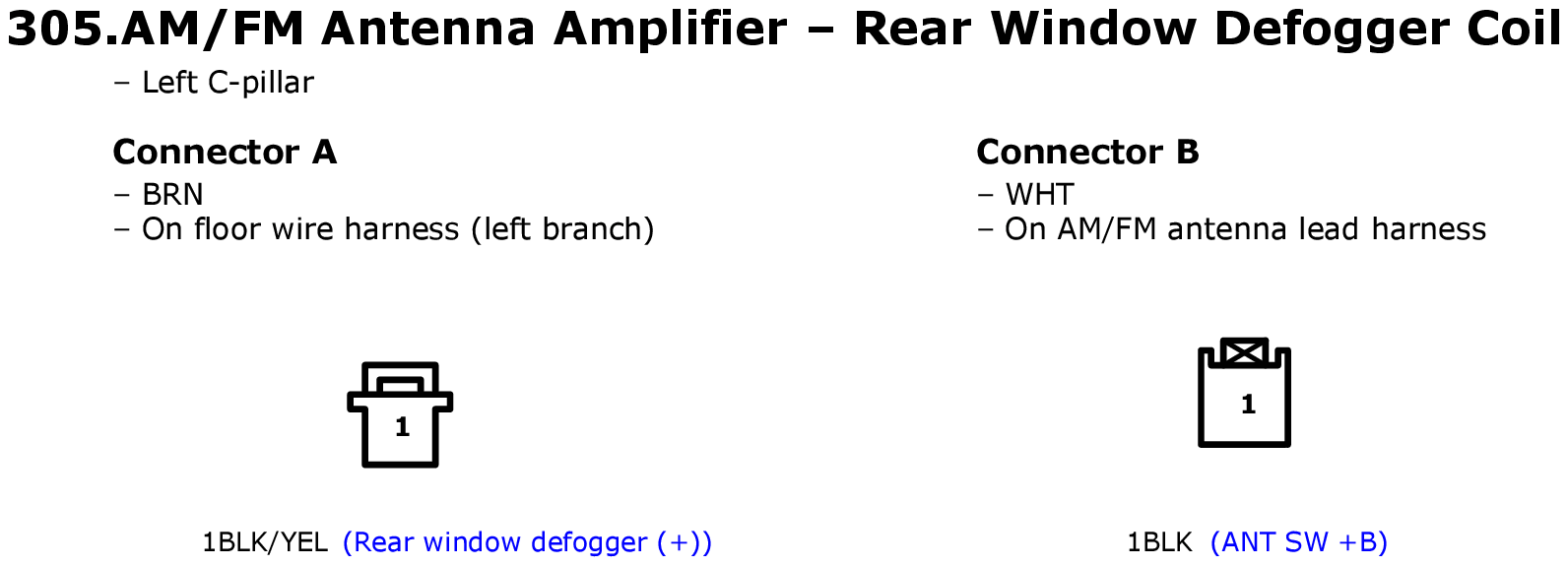

Fig 1: AM/FM Antenna Amplifier-Rear Window Defogger Coil Connector End View
GHHW11378Courtesy of AMERICAN HONDA MOTOR CO., INC.
