Under-Dash Fuse/Relay Box

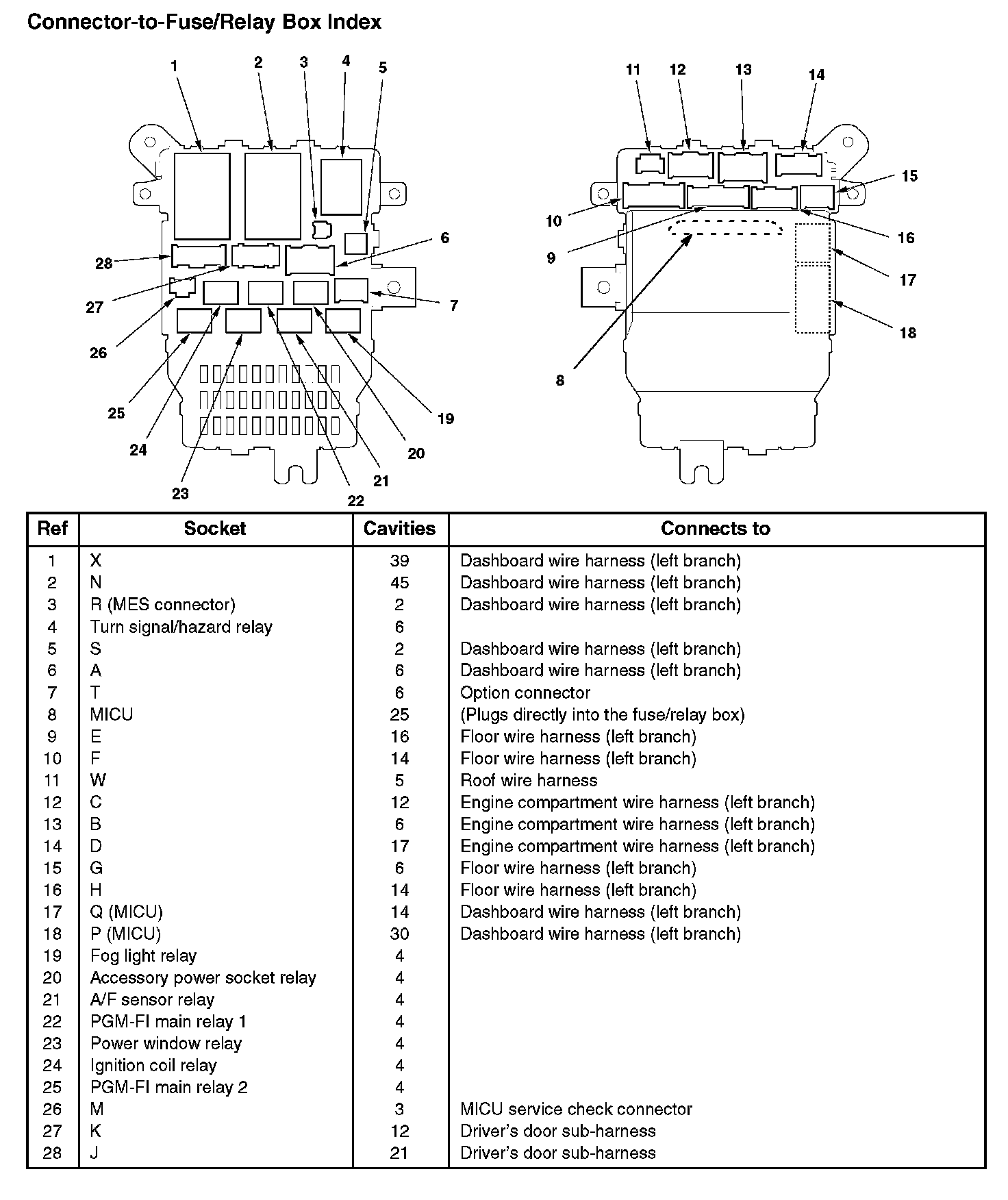

Under-dash Fuse/Relay Box:

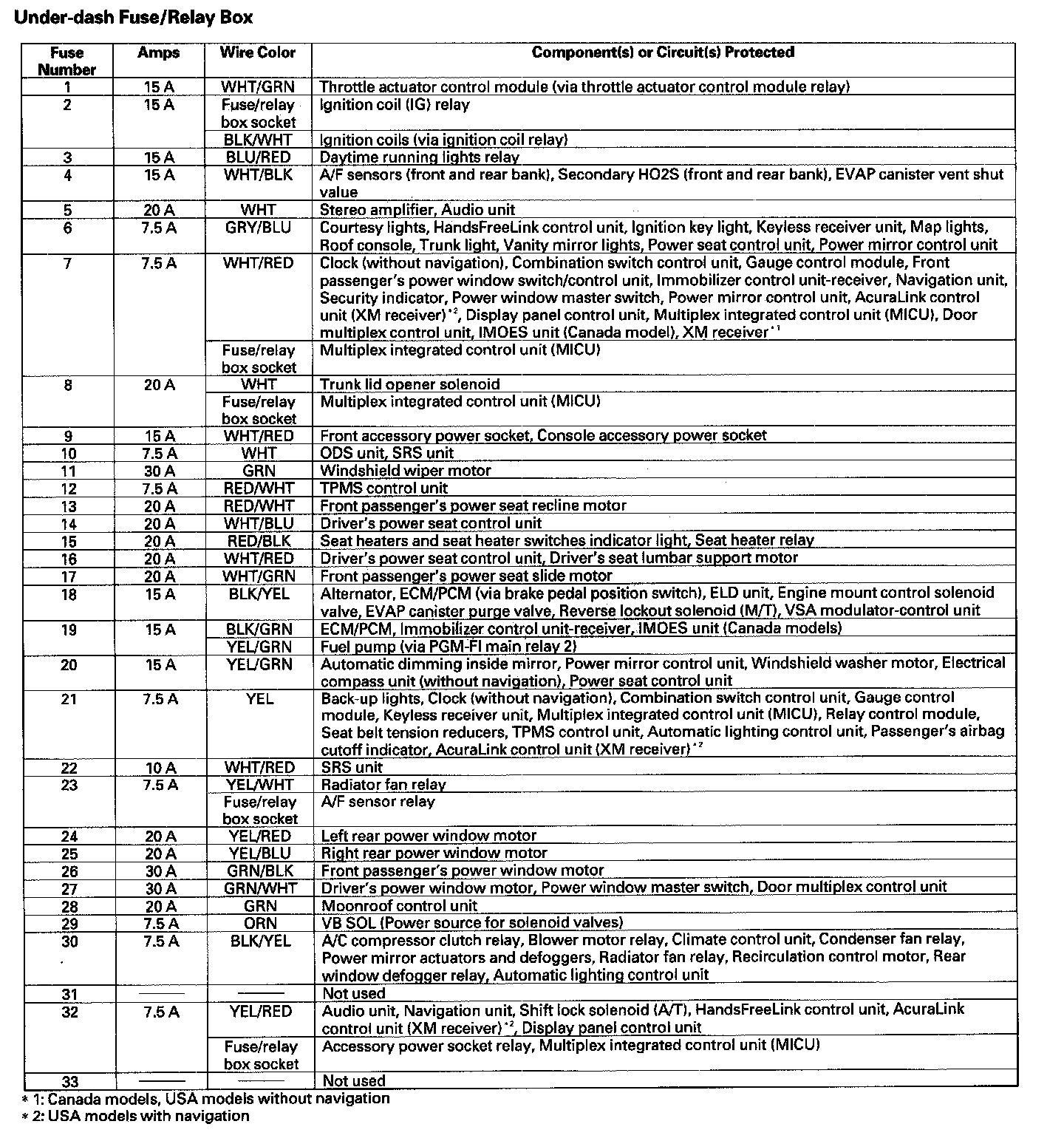

Under-dash Fuse/Relay Box:
Power Distribution Fuse To Components Index:
