Impact Sensor

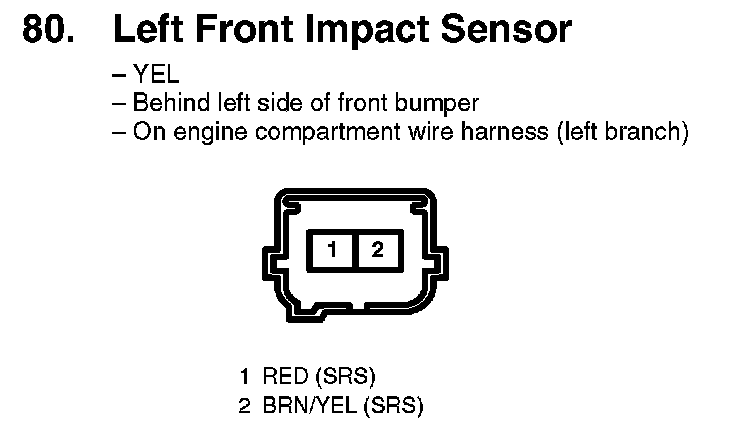

80. Left Front Impact Sensor:

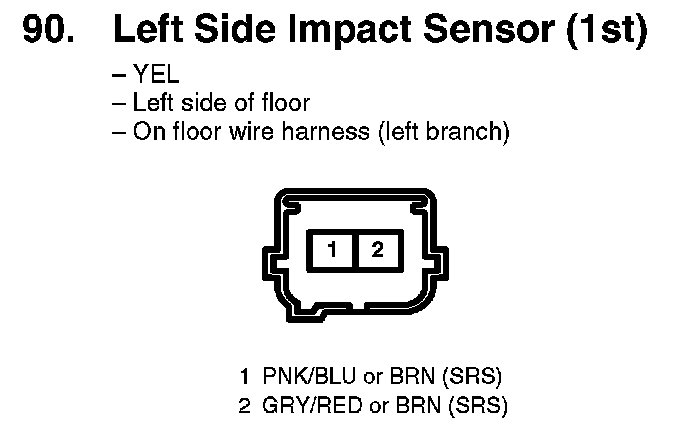

90. Left Side Impact Sensor (1st):

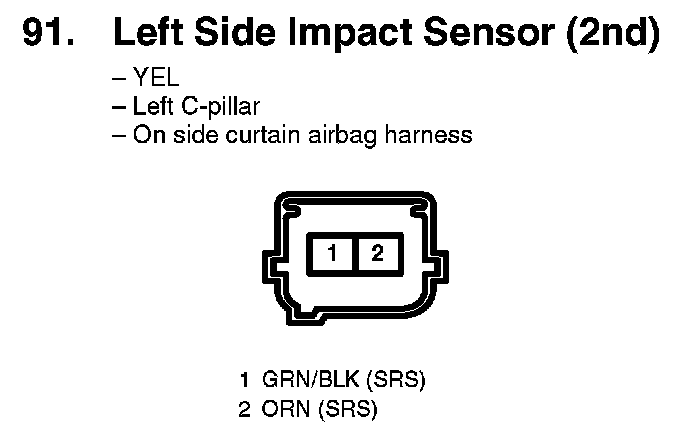

91. Left Side Impact Sensor (2nd):

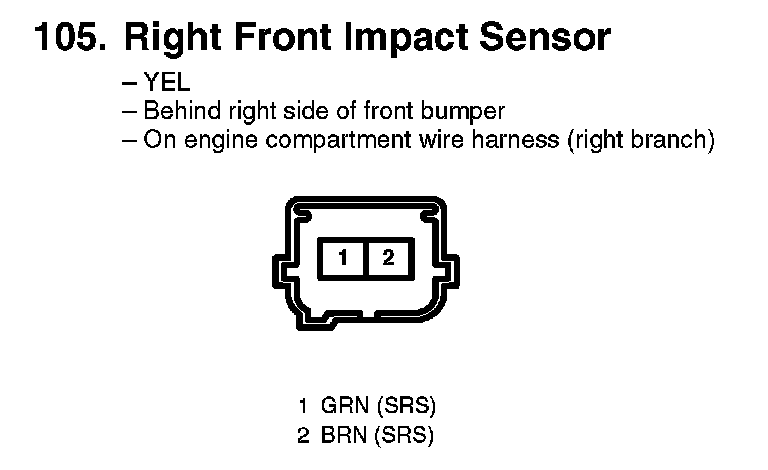

105. Right Front Impact Sensor:

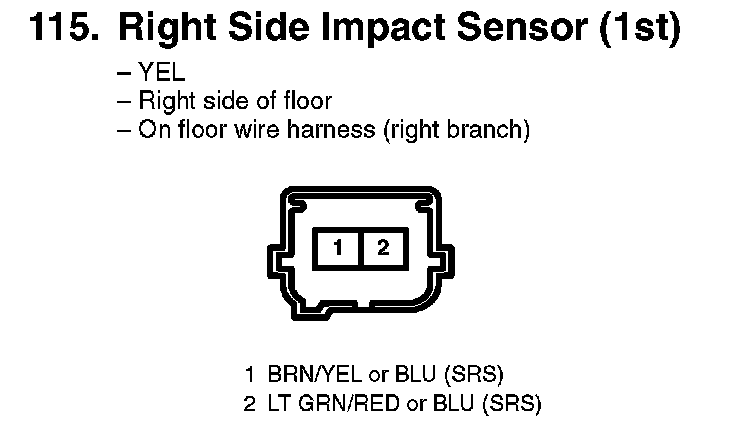

115. Right Side Impact Sensor (1st):

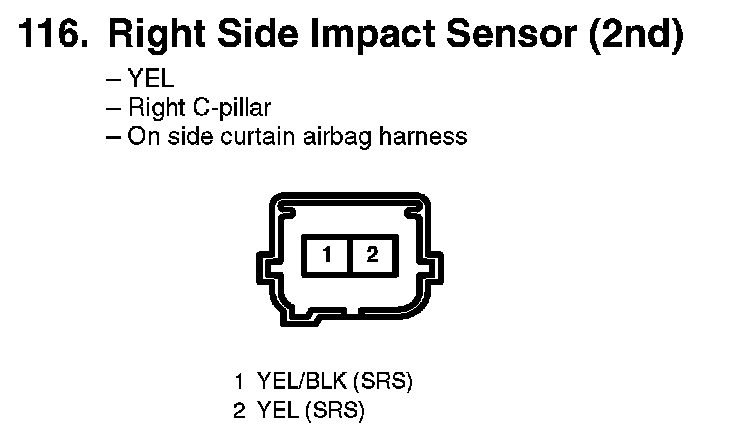

116. Right Side Impact Sensor (2nd):
