Service Specifications

Flywheel





Torque the flywheel mounting bolts in a crisscross pattern in several steps.

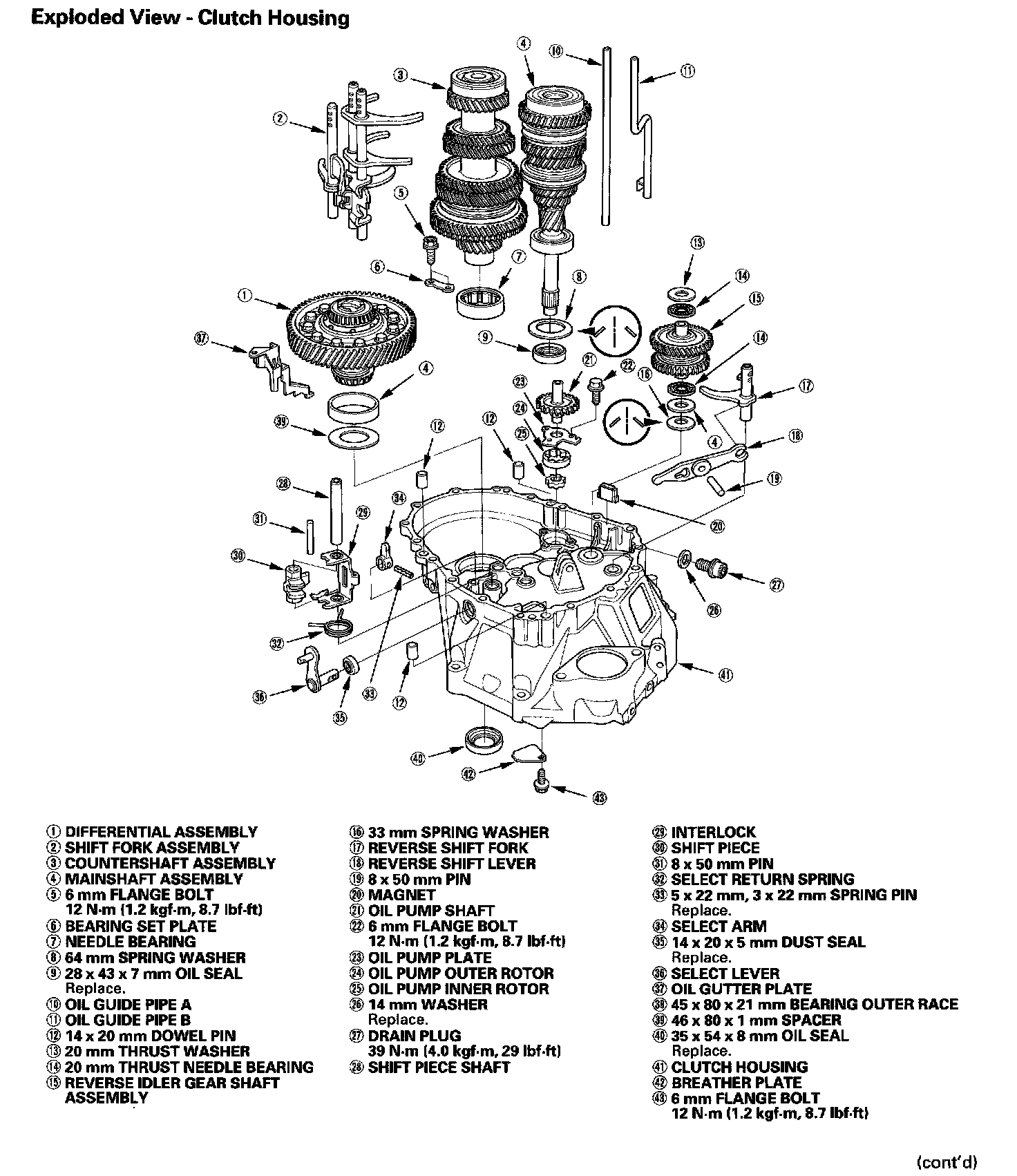

Clutch Housing

Clutch Housing:

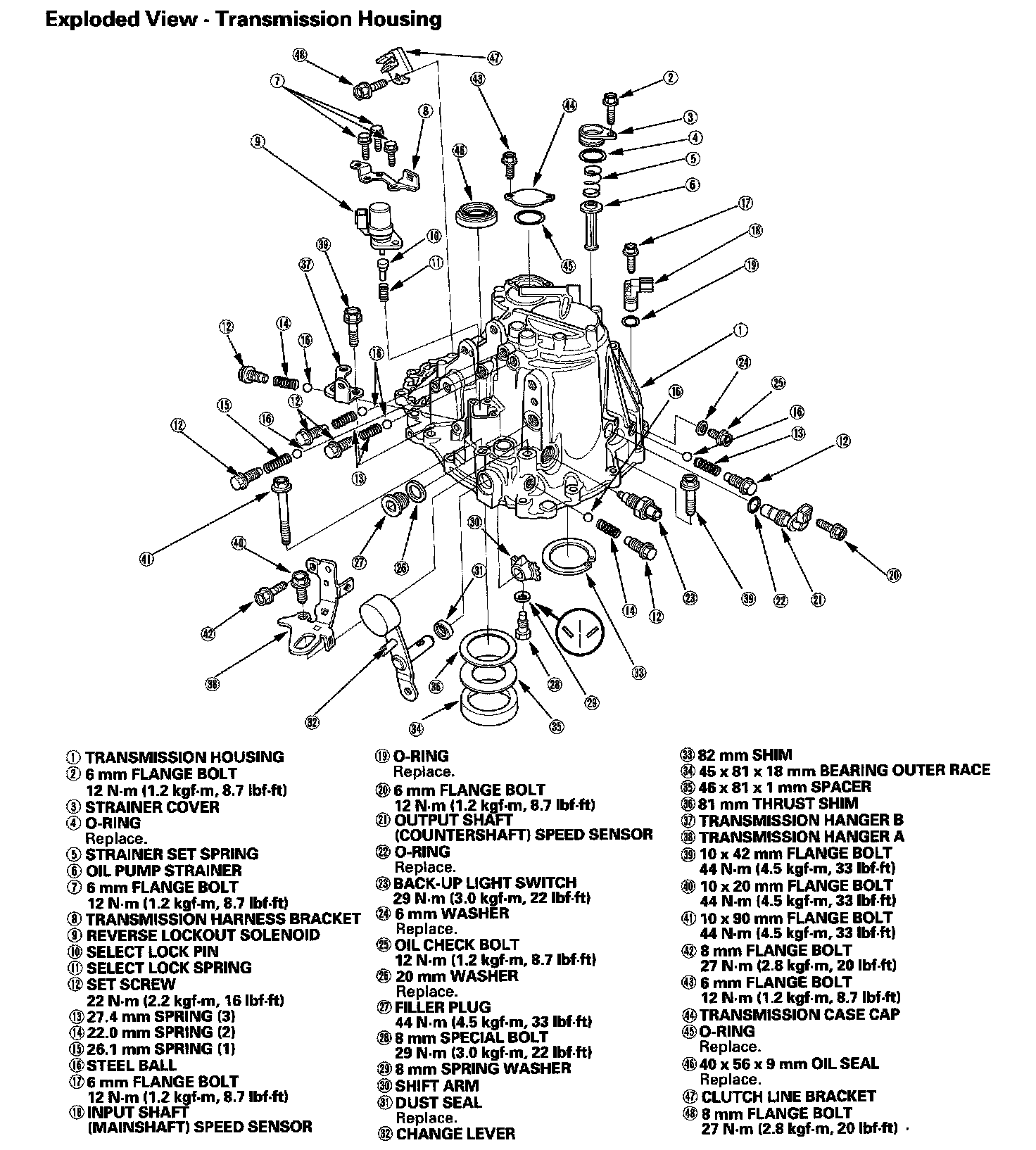

Transmission Housing

Transmission Housing:

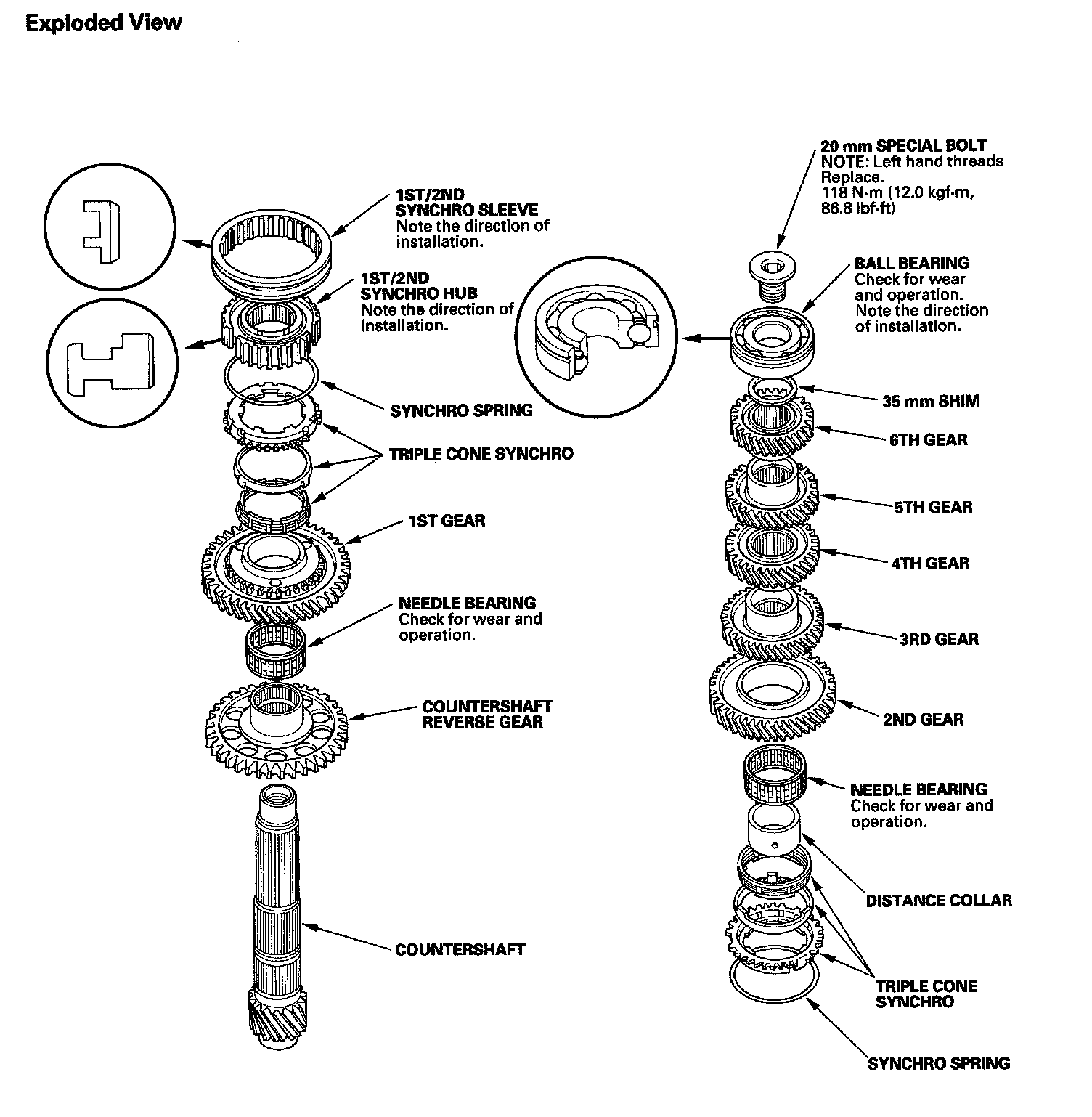

Countershaft

Countershaft:






For information regarding Transmission Overhaul Specifications, please refer to Service and Repair, Procedures. Service and Repair
