Pinout Values and Diagnostic Parameters

PCM Inputs and Outputs

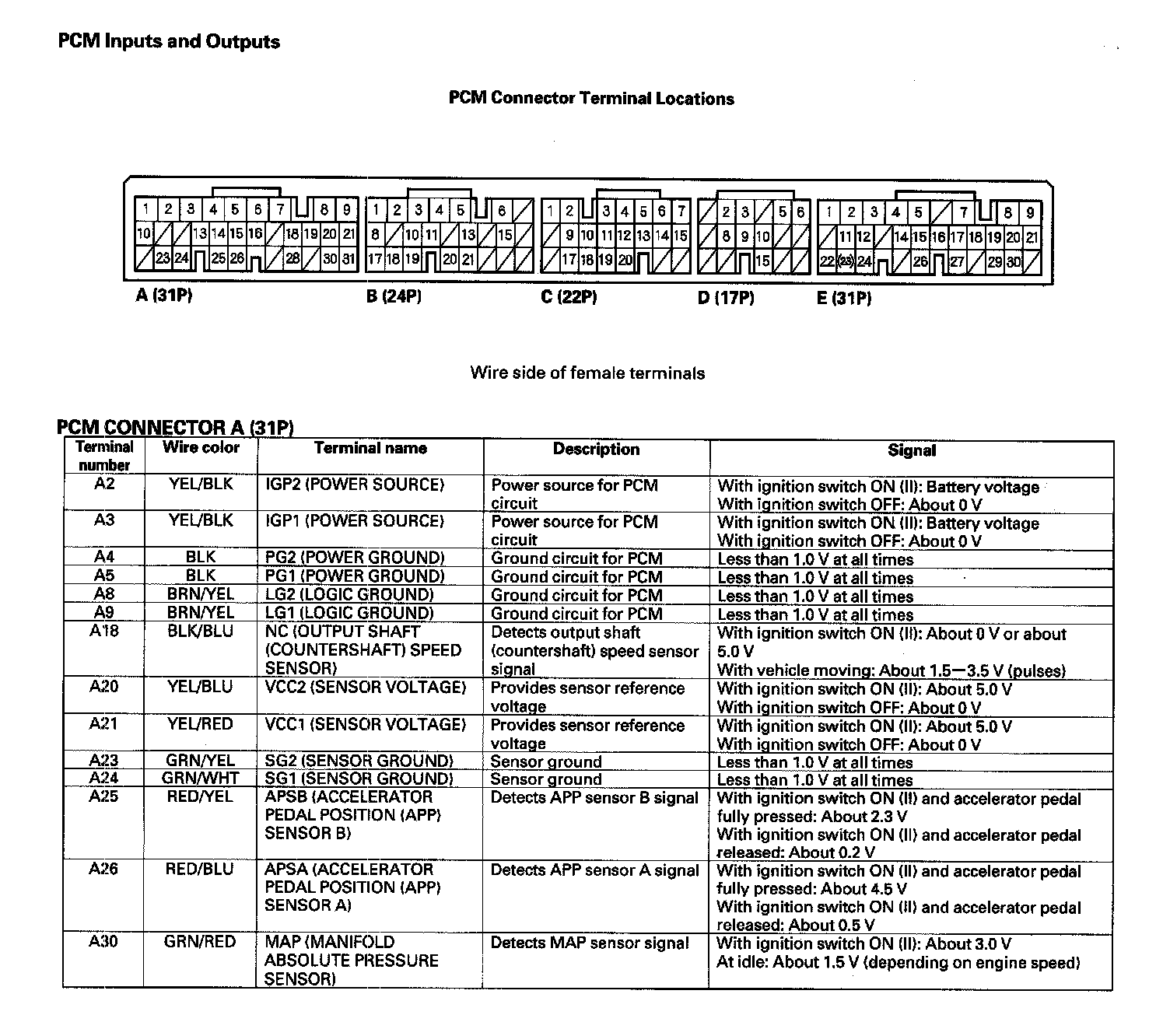

PCM Inputs And Outputs (Part 1):

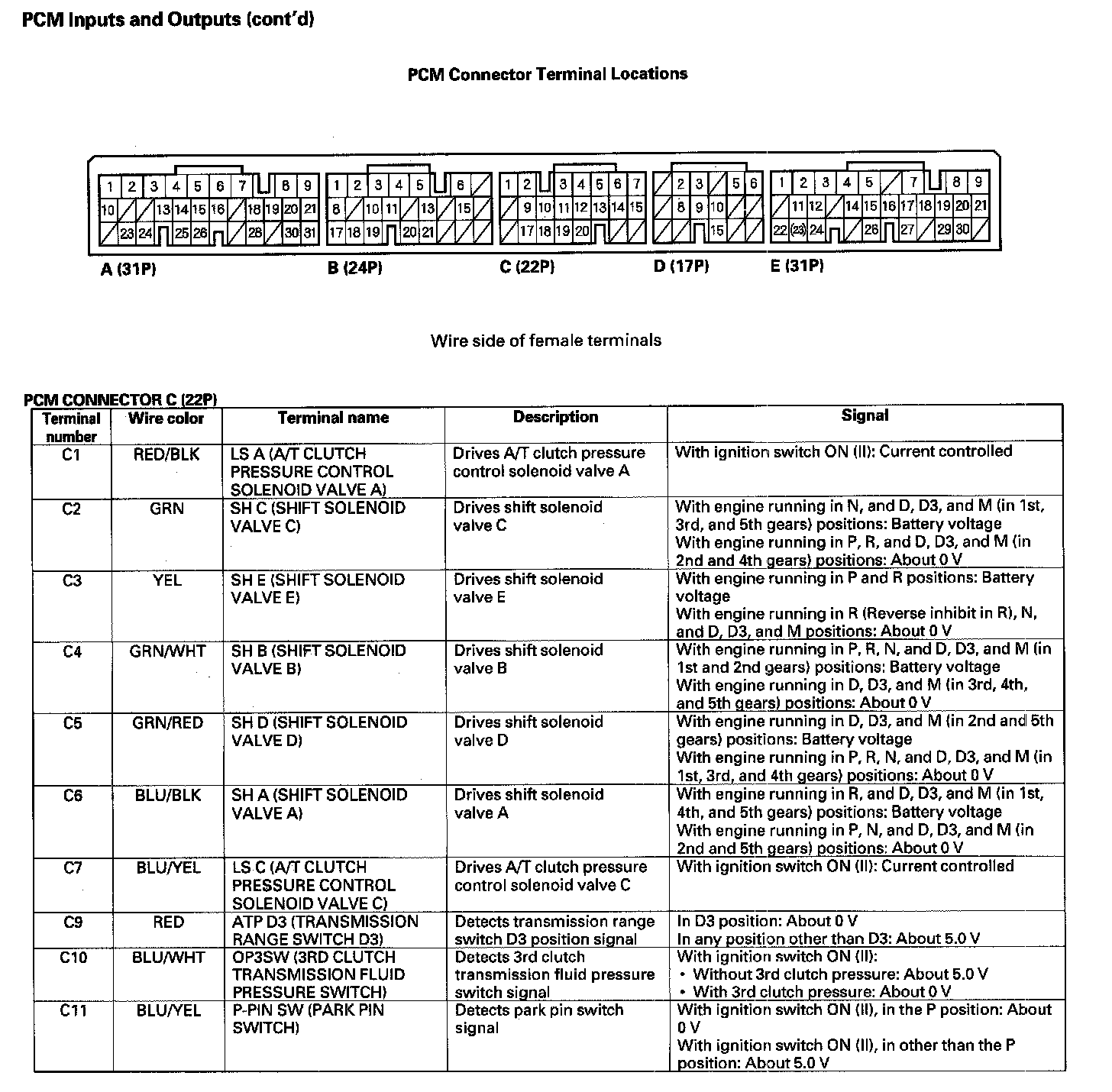

PCM Inputs And Outputs (Part 2):

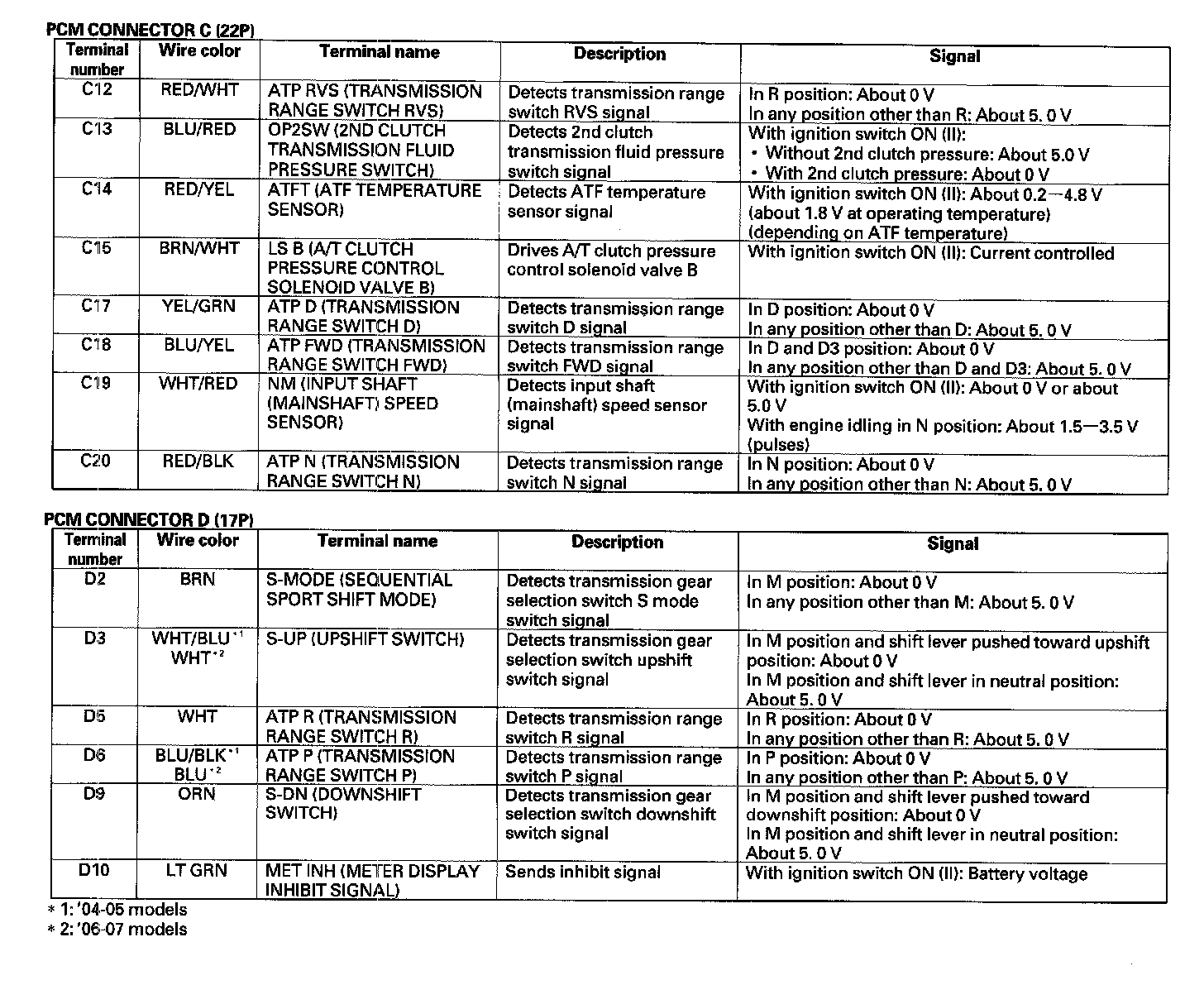

PCM Inputs And Outputs (Part 3):

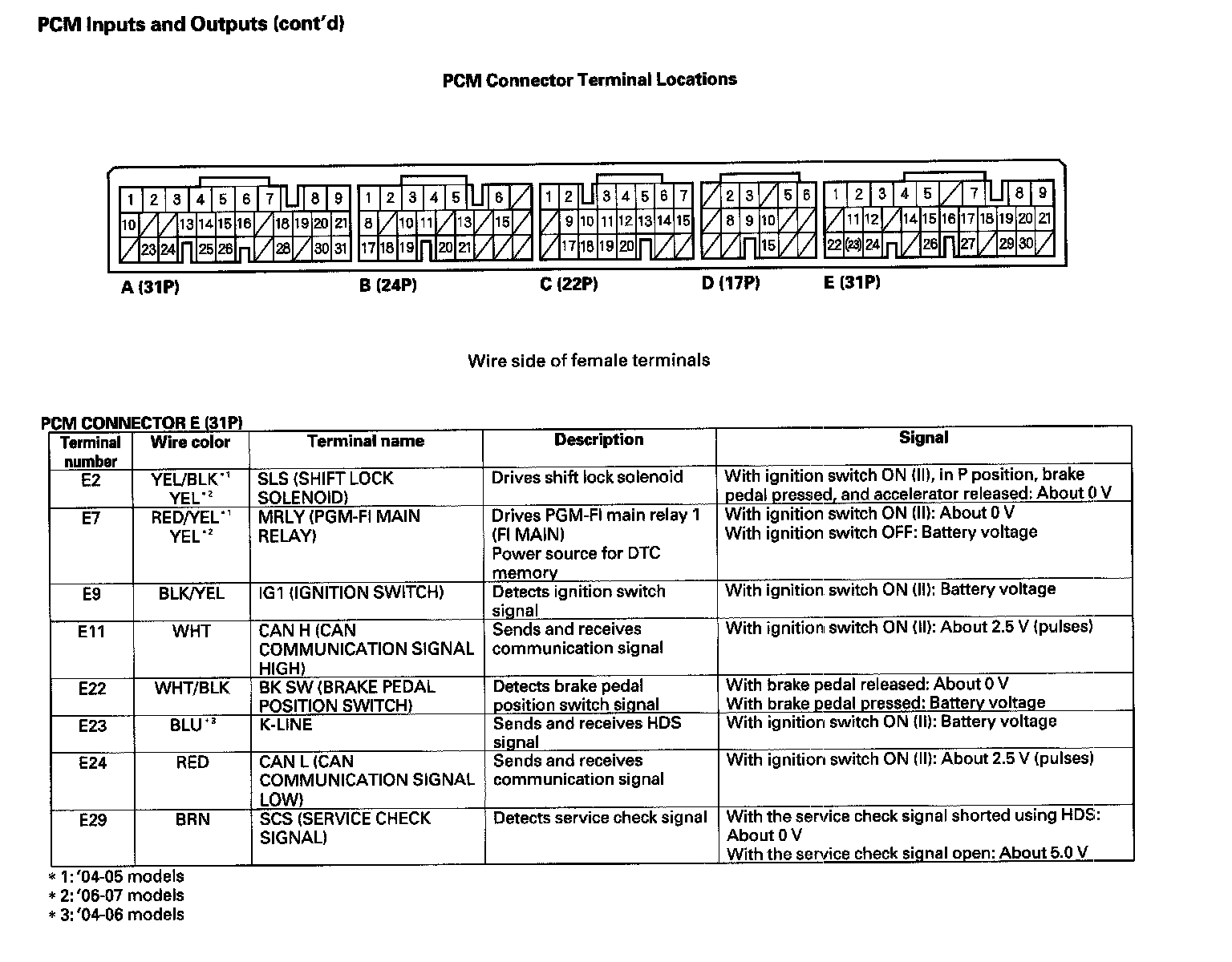

PCM Inputs And Outputs (Part 4):
