Navigation Unit Removal/Installation

WARNING: This page is about a different car, the 2005 Acura TSX and 2004 Acura TSX. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the four screws (A) from the bracket (B) located the trunk room.

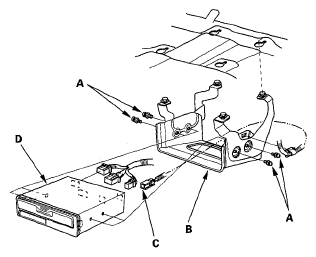

    Fig 1: Identifying Bracket, Navigation Unit Connectors, Navigation Unit And Screws
    G05489379
  2. Disconnect the navigation unit connectors (C).
  3. Remove the navigation unit (D).
  4. Install in the reverse order of removal.
